1.5mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13′ 1-1/2″) Long (*Stainless Steel)
Original price was: $32.50.$26.00Current price is: $26.00.
Availability: In stock
Product Description
1.5mm (1/16″) Dia. Cable Suspension Kit with Ceiling-to-Floor Fixings (#304 Stainless Steel) – 4.0M (13′ 1-1/2″) Long

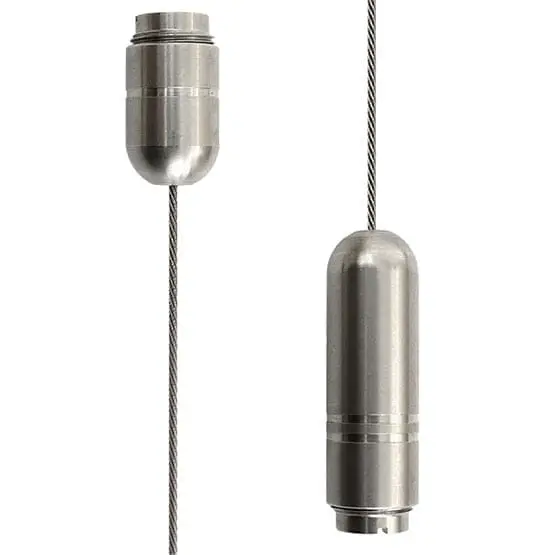

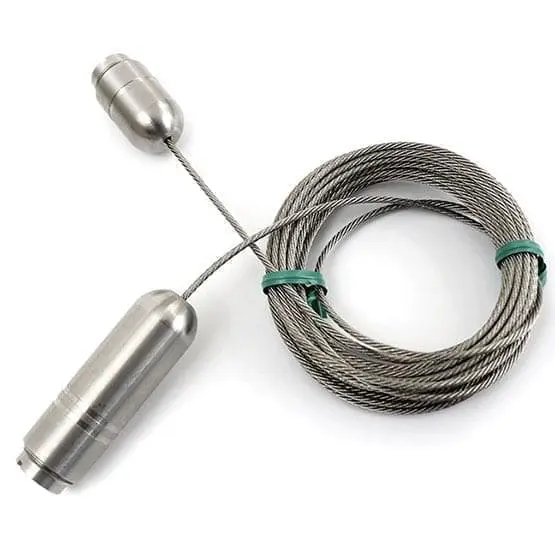

The C101-4M/SS stainless steel cable suspension/wire hanging kit includes a factory top-crimped cable, a ceiling fixing, and a bottom/floor adjustable tensioner fixing. The kit is supplied with standard base supports — optional base supports in 25mm, 38mm or 50mm diameter are also available. It is primarily designed for typical ceiling-to-floor or tailored suspended applications, such as installations inside window frames, glass cabinets, and rails or tracks. The kit comes with cables available in 4 meters (13′ 1-1/2″), which can be conveniently adjusted or trimmed on-site during installation.
The C101-4M/SS cable suspension/wire hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The cables, crafted from robust stainless steel, are designed to resist fraying, kinking, and snapping. Each cable consists of 19 steel strands encasing a single steel wire core, resulting in a strong yet flexible assembly with excellent abrasion resistance, capable of supporting up to 120 kg (264 lbs). The 1.5mm (1/16″) diameter cable can be utilized with a variety of standard or specialty supports for holding graphic panels, acrylic or glass shelves, decorative partition panels, display showcases, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, wine bottles, and various other presentations.
The C101-4M/SS cable suspension/wire hanging kit can also be used with aluminum rails/tracks to enhance display flexibility and simplify the installation process. By using toggles affixed to the cable anchor, users can adjust the cables and move them sideways. Tracks are available in lengths of 4, 6, or 8 feet, with custom sizes or continuous runs available upon request. For installation, rail or track systems must be securely mounted to a solid structure or blocking, which includes attaching tracks to ceiling struts, structures above the ceiling line, or wall studs.
Additionally, the C101-4M/SS cable suspension/wire hanging kit is compatible with a range of accessories, such as info/poster acrylic holders, acrylic frames, aluminum frames, aluminum graphic holders, brochure and literature acrylic holders, magazine and book acrylic holders, acrylic showcases, flat glass shelves, and sloped acrylic shelves.
Attributes
| Cable Length | |
|---|---|
| Top Fixing | |
| Bottom Fixing Tensioner | |
| Load Limits | |
| Compatibility | Use with any 1.5mm Stainless Steel Cable Panel or Shelf Support Fittings |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
Cables used in assemblies are made from stainless steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings and internal components are made from #SS303 stainless steel alloy. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors and Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel cable system performs well in both closed and open environments as long as it is not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install the C101-4M/SS Cable Set ❯ DOWNLOAD THE PDF HERE.
