-10%

25mm (1″) Base Support *Stainless Steel*

Original price was: $4.80.Current price is: $4.32.

Use as optional base support for 1.5mm cable sets in stainless steel (C100-2M/SS, C101-4M/SS), 3mm cable sets in stainless steel (C301-4M/SS), and 10mm rod fixings in stainless steel (RC-10/SS, and RCF-10/SS).

Frequently Bought Together with:

#10 x 2 in, Flat Head, Stainless Steel Screw

Use with 25mm, 38mm or 50mm diameter base supports for cable/rod systems, or wall mounts, standoffs and edge grips.

1.5mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long (*Stainless Steel)

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

3mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long (*Stainless Steel)

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

CEILING-TO-FLOOR ROD FIXING KIT with 10mm Rods – 4.5M (14’ 9”) Length

Ceiling-to-Floor Fixing Kit with 10mm Rods – Includes RCF-10/SS Top/Bottom Fixings with Spring Tensioner (1 ea) and RD10-1.5M 10mm (3/8″) diameter threaded rods (3 ea). Use with ceiling-to-floor suspended application — Join to 4.5M (14’ 9”) total height and cut to size on-site during installation. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

Availability: In stock

Product Description

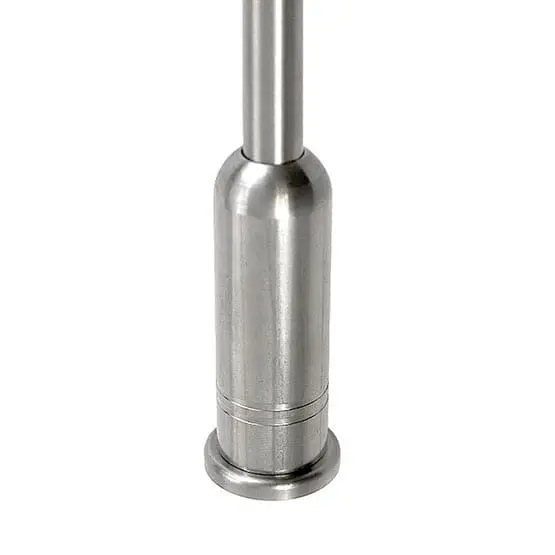

Base Support – 25mm (1″) Diameter (#304 Stainless Steel)

The CB-25/SS base support/wall plug is compatible with our stainless steel cable and rod ceiling/floor and wall fixings: 1.5mm stainless steel cable system, 3mm stainless steel cable system, and 10mm stainless steel rod system. The base supports are made of robust solid stainless steel alloy. When properly secured to the ceiling, they can provide exceptional weight support and stability. The entire assembly with connected cables or rods can support up to 200 kg (441 lbs) per fixing point (for ceiling applications, subject to fixing to studs or solid structure). Optional base supports are available in 38mm (1-1/2″) and 50mm (2″) diameters.

Attributes

Top Fixing

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Materials

Finish

Availability


Specifications for CB-25/SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors and Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.

Quality/Warranty:

Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
