50mm (2″) DIA. HEAVY-DUTY BASE SUPPORT *Stainless Steel*


Use as optional base support for 1.5mm cable sets in stainless steel (C100-2M/SS, C101-4M/SS), 3mm cable sets in stainless steel (C301-4M/SS), and 10mm rod fixings in stainless steel (RC-10/SS, and RCF-10/SS).

Frequently Bought Together with:

#10 x 2 in, Flat Head, Stainless Steel Screw

Use with 25mm, 38mm or 50mm diameter base supports for cable/rod systems, or wall mounts, standoffs and edge grips.

Availability: In stock

Product Description

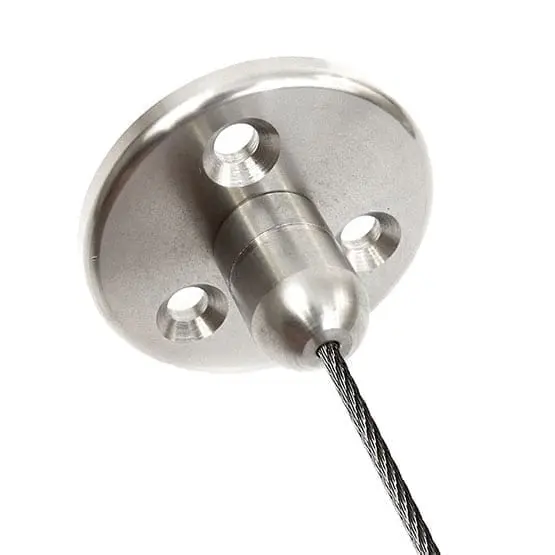

Heavy Duty Base Support – 50mm (2″) Diameter (*Stainless Steel)

Optional Base Support/Wall Plug to replace the standard support included with the cable sets. *Use for cable/rod fixing sets in stainless steel finish only.


Top Fixing

Load Limits




Mounting Options

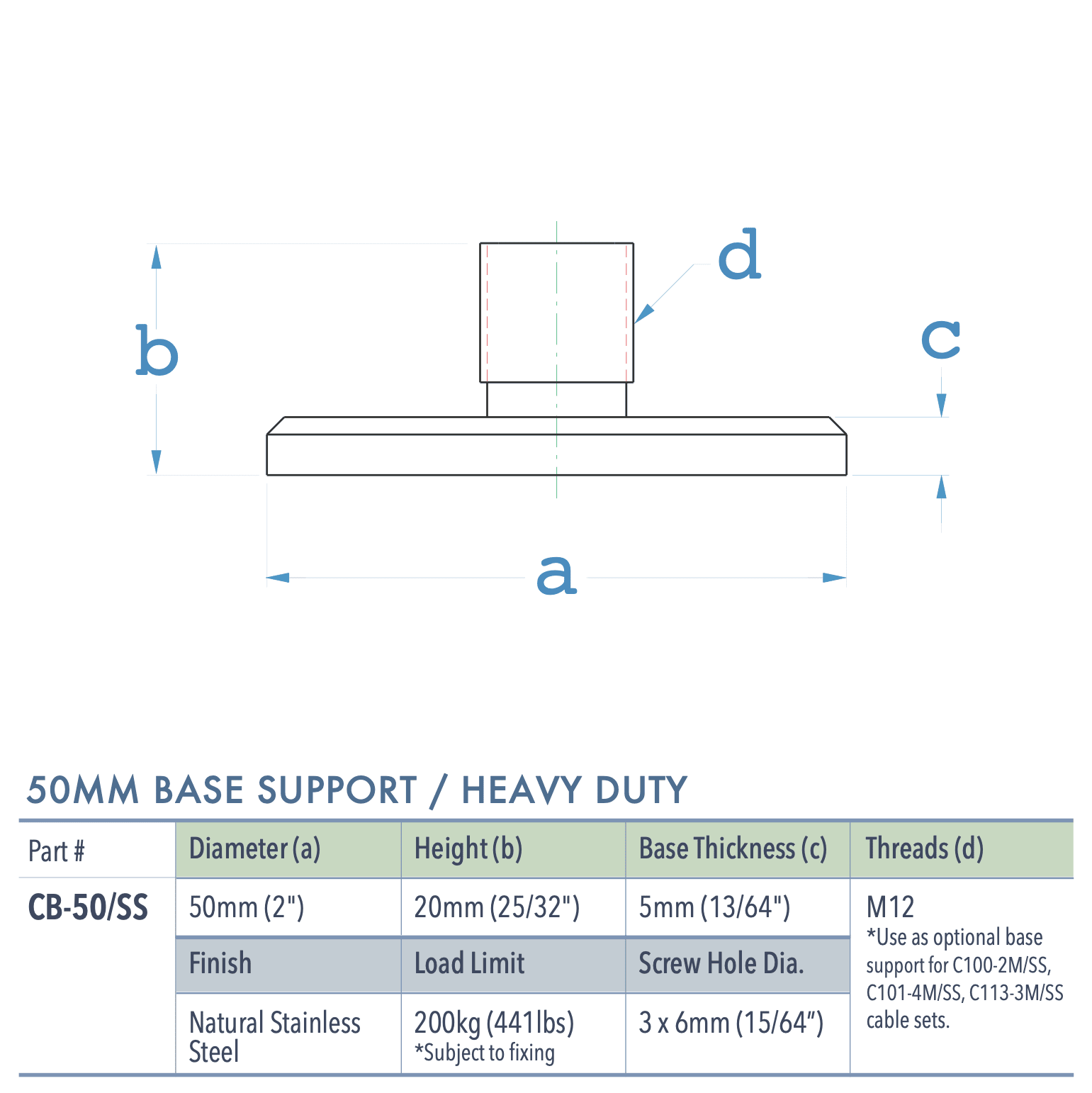

Specifications for CB-50/SS


Composition and Materials:

For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors and Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.


Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
