3/16″ (5mm) Glass Shelf – CLEAR / TEMPERED. Size: 14″x14″/14″x24″/14″x36″


Sold only as a pack of 5 units. ***Minimum of 5 units per order is required.

Frequently Bought Together with:

1.5mm (1/16") CABLE w/Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long

Includes Top and Bottom Fixings with Spring Tensioner

1.5mm (1/16") Double-Cable Assembly with 300mm Wall-to-Wall Brackets – 3.0M (9' 10") Long

Includes Cables, Spring Tensioners and Wall Brackets/Fixings

SHELF SUPPORT SINGLE – For shelves up to 7mm (1/4") thick. (Use with 1.5mm Cables)

Ideal for supporting acrylic and glass shelves

SHELF SUPPORT DOUBLE – For shelves up to 7mm (1/4") thick. (Use with 1.5mm Cables)

Ideal for supporting acrylic and glass shelves

Product Description

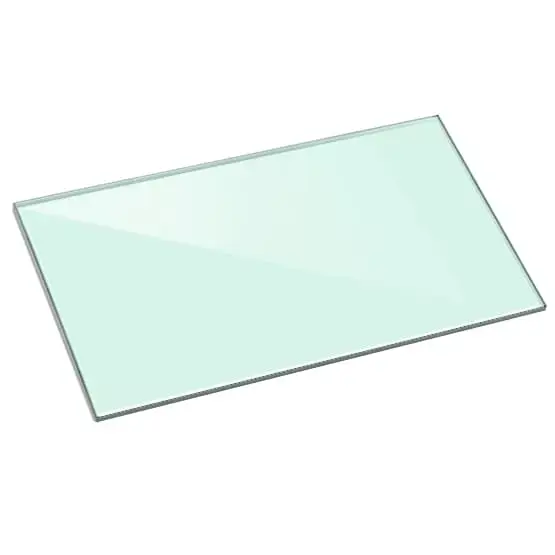

3/16″ (5mm) Glass Shelf with Polished Pencil Edges – Clear / Tempered.

Available Sizes:

  • Size: 14″ x 14″
  • Size: 14″ x 24″
  • Size: 14″ x 36″

For use with cable/rod suspension systems or wall mounts.


Shelf Size

, ,


, ,

Load Limits

, ,



, ,

Mounting Options

Material Thickness

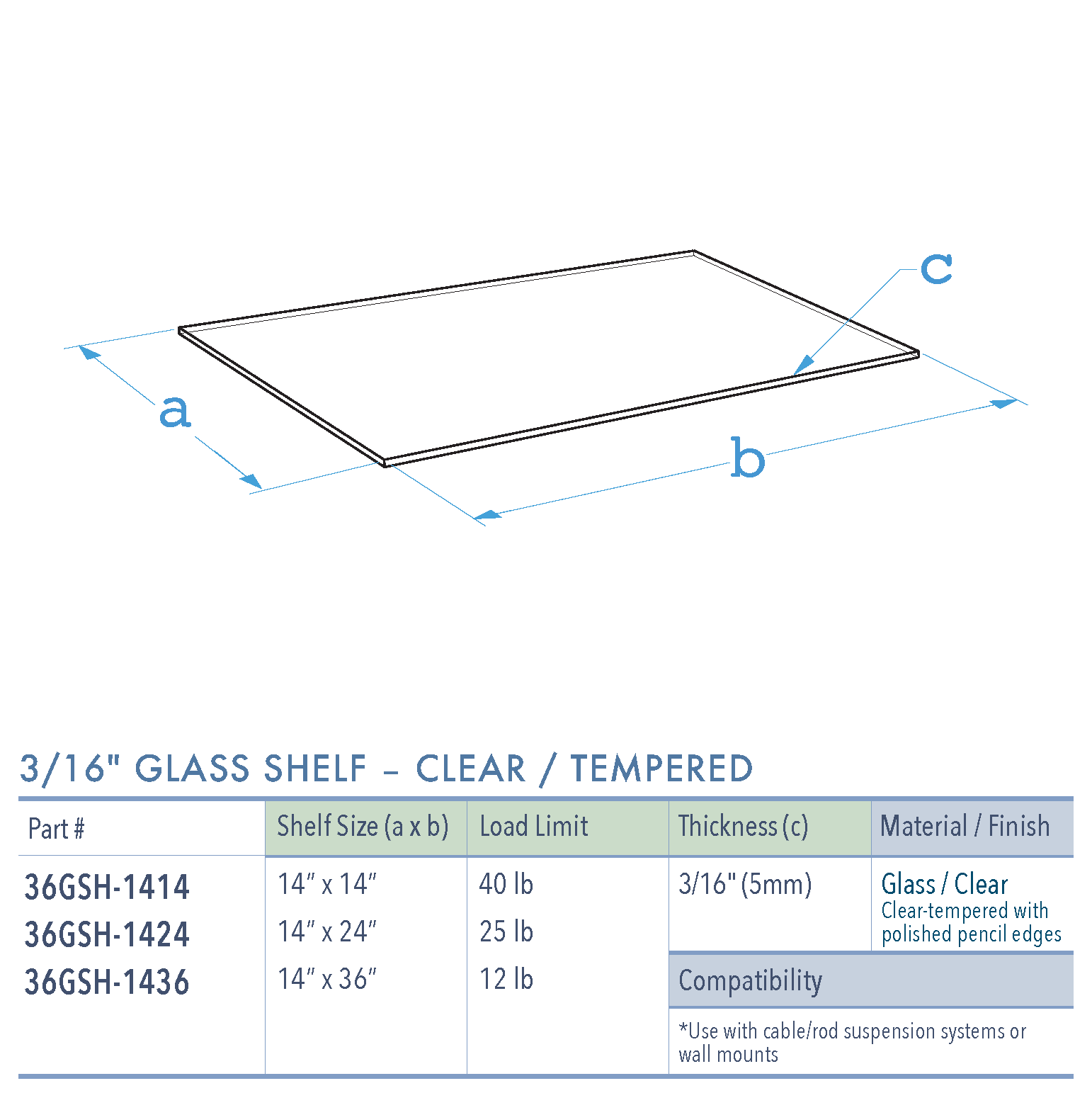

Specifications for 36GSH-1414-36

Composition and Materials:

All glass shelves used with our cable/rod display systems are tempered (toughened). This type of glass is intended for glass shelving, glass cabinets, partitions, graphic displays and other uses requiring superior strength and safety properties.

Strength & Safety:

Under pressure, tempered glass is approximately two or more times stronger than annealed glass. Tempered glass is also able to resist temperature differences (200°F – 300°F) which would cause annealed glass to crack. Fully tempered glass is used in many applications because of its safety characteristics. Safety comes from strength and from a unique fracture pattern. When fully tempered glass breaks the glass fractures into small, relatively harmless fragments which prevent major injuries. Applicable building codes should always be checked for specific information and requirements.

Colors / Finishes:

Our stock glass shelves are supplied in 5mm or 10mm thick clear glass sheets with polished flat or pencil type edges. Available in few standard sizes.

Handling & Limitations:

Before ordering or installing always check for “Permissible Loads for Tempered Glass Shelves”. Tempered glass should receive the same care as annealed glass. Unfortunately, familiarity with the greatly improved strength of tempered glass may mislead people to exert less care in handling it. Careless handling and improper installation sometimes produce edge damage. Delayed breakage can ensue when edge-damaged tempered glass is subjected to a moderate thermal of mechanical stress. Full penetration of the compression layer will likely produce instantaneous total fragmentation of tempered glass. Hence, tempered glass cannot be cut or modified following heat treatment.
