SUPPORT for Drilled or Slotted Shelf (*Use with 3mm Stainless Cables)

Original price was: $4.80.Current price is: $4.32.

Use for supporting drilled or slotted acrylic and glass shelves. Located under shelf. Hole Diameter – 10mm (3/8″). Use with 3mm (1/8″) Diameter Cable Suspensions in Stainless Steel Finish.

Frequently Bought Together with:

3mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long (*Stainless Steel)

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

38mm (1-1/2") Base Support *Stainless Steel*

Use as optional base support for 1.5mm cable sets in stainless steel (C100-2M/SS, C101-4M/SS), 3mm cable sets in stainless steel (C301-4M/SS), and 10mm rod fixings in stainless steel (RC-10/SS, and RCF-10/SS).

50mm (2") Heavy Duty Ceiling Support *Stainless Steel*

Use as optional base support for 1.5mm cable sets in stainless steel (C100-2M/SS, C101-4M/SS), 3mm cable sets in stainless steel (C301-4M/SS), and 10mm rod fixings in stainless steel (RC-10/SS, and RCF-10/SS).

Availability: In stock

Product Description

Cable Support for Drilled or Slotted Shelves — Drill-Thru Shelf Support (#304 Stainless Steel)

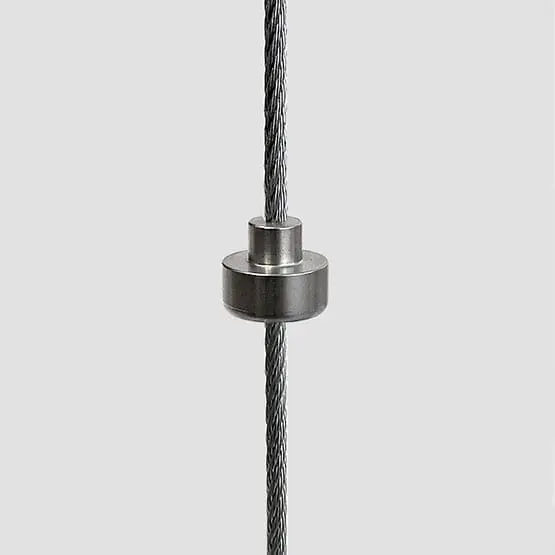

The CS301/SS cable shelf support features a 16mm (5/8″) diameter round profile fitting, designed for suspending drilled or slotted shelves of various thicknesses and material types. This high-quality shelf support is made of solid stainless steel and is compatible with our 3mm stainless steel cable display system / hanging hardware kits.

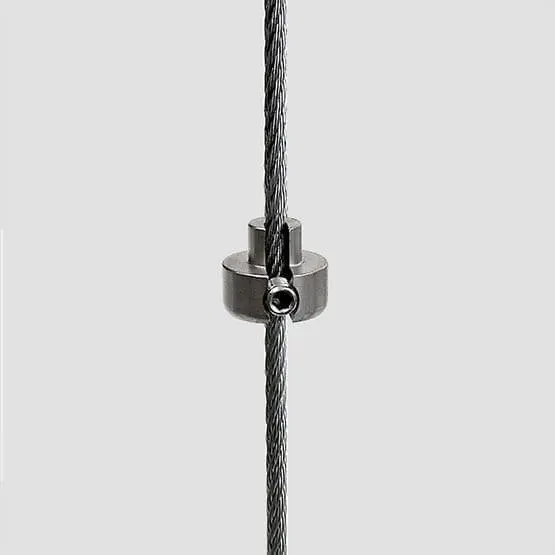

The drill-thru shelf supports are ideal for supporting lightweight acrylic shelves, flat tempered glass shelves, wooden shelves, and other custom suspended fixtures. The support is positioned under the shelf, attaches to cables, and securely locks in place with set screws using the supplied hex key.

Key Features:
• Drill-thru shelf support for drilled or slotted shelves
• Recommended use of four supports per shelf (longer shelves may require multiple supports attached to the longer side)
• Made of stainless steel alloy with natural brushed stainless finish
• Can support shelves 25mm (1″) thick or more (*subject to material type and weight)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Shelves require 10mm (3/8″) diameter holes
• Works with a wide range of materials such as acrylic, tempered glass, marble, caesarstone, wood, plywood, granite, butcher block, laminate, aluminum composite, etc.
• Compatible with 3mm (1/8″) diameter stainless steel cable suspension system


Explore All Mounting Options

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

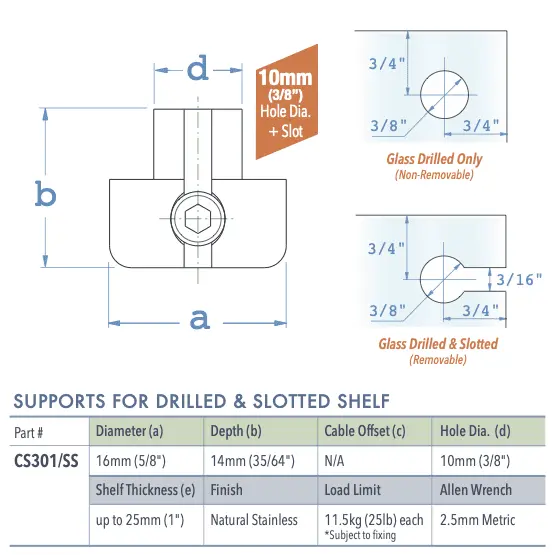

Specifications for CS301/SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors and Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.

Quality/Warranty:

Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
