Product Description

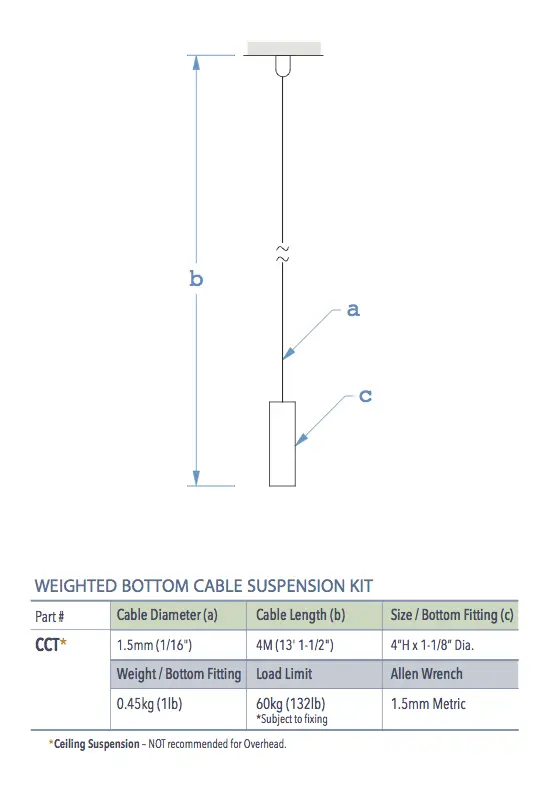

4.0M (13\’ 1-1/2\”) Long 1.5mm (1/16\”) Dia. Cable with Ceiling Fixing with a Weighted Bottom
Includes Cable, Top Fixing and 4\” x 1-1/3\” Dia. Weight
$58.00
Includes Cable, Top Fixing and Weight Bottom
Includes Cable, Top Fixing and 4\” x 1-1/3\” Dia. Weight
Cable Length | |
---|---|
Top Fixing | |
Load Limits | |
Compatibility | Use with any 1.5mm Cable Panel, Shelf, Frame or Specialty Support Fittings |
Weight | |
Mounting Options | |
Material Thickness | |
Materials | |
Finish | |
Allen Wrench Size | |
Availability |
For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
How to Install CCT 4.0M (13\’ 1-1/2\”) Long 1.5mm (1/16\”) Dia. Cable with Ceiling Fixing with a Weighted Bottom ❯ DOWNLOAD THE PDF HERE.
