1.5mm (1/16″) CABLE w/Ceiling-to-Floor Fixings – 4.0M (13′ 1-1/2″) Long (Use with Interchangeable Base Supports)
$26.28
Includes Top and Bottom Fixings with Spring Tensioner and Standard Base Supports
Availability: In stock
Product Description

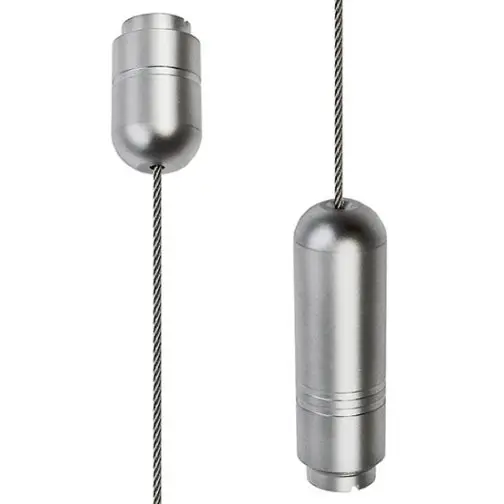

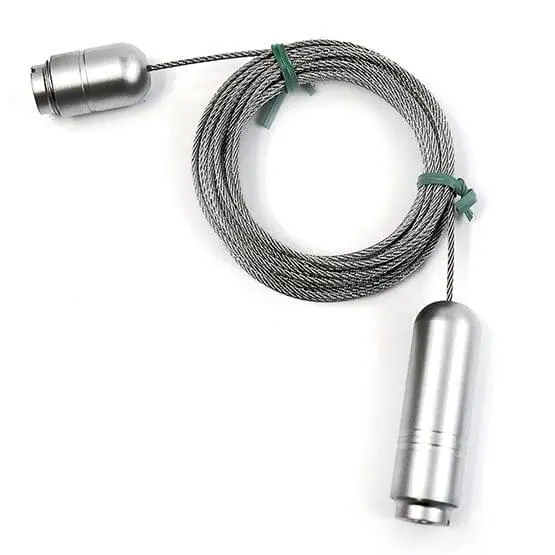

4.0M (13′ 1-1/2″) Long 1.5mm (1/16″) Diameter Cable with Ceiling-to-Floor Fixings
The Cable Suspension Set includes Top and Bottom Fixings with Spring Tensioner and Standard Base Supports – Optional Base Supports in 25mm, 38mm or 50mm diameter are available.
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Cable Length | |
|---|---|
| Top Fixing | |
| Bottom Fixing Tensioner | |
| Load Limits | |
| Compatibility | |
| Weight | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

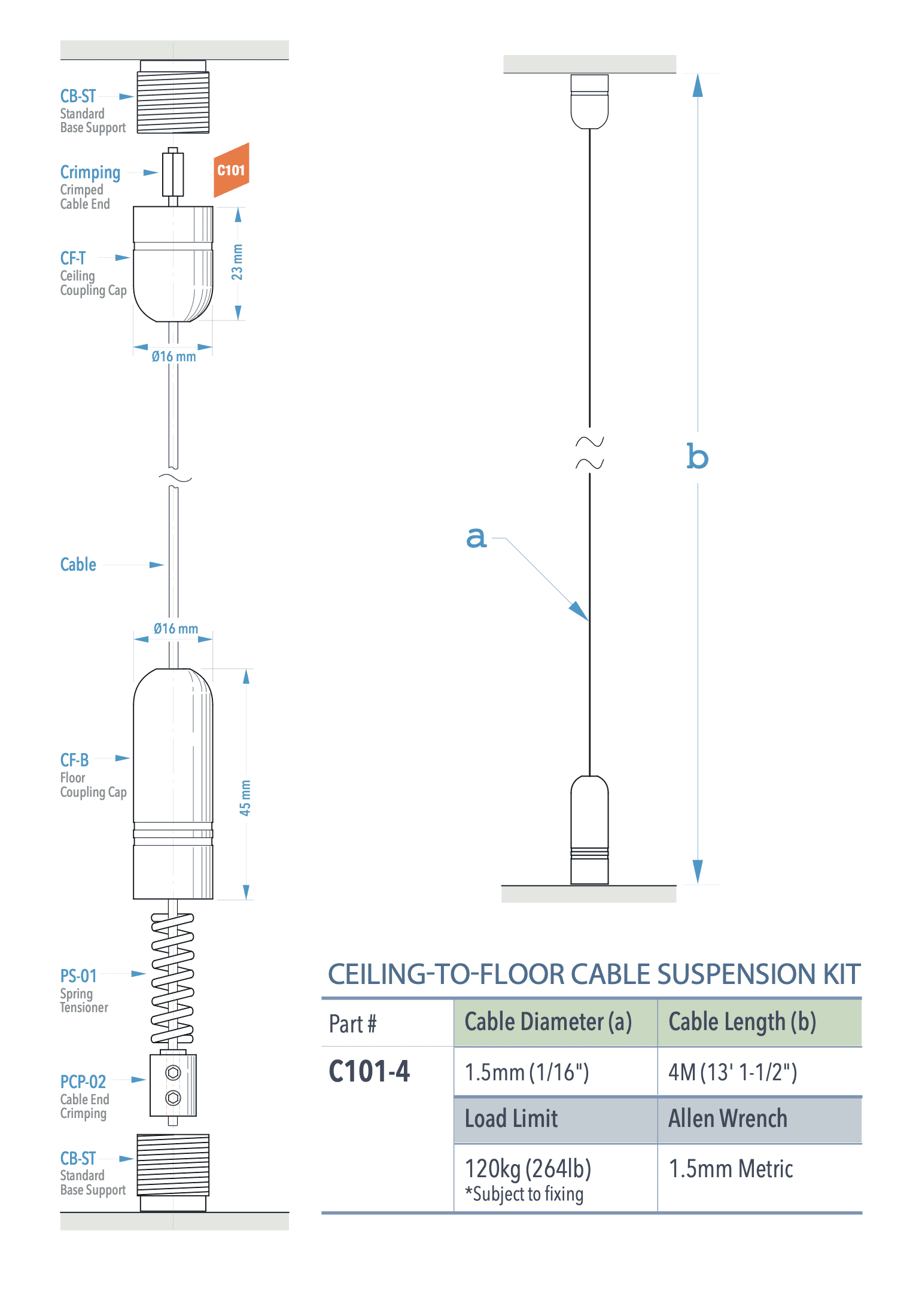

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
Cables used in assemblies are made from galvanized steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings are made from a brass alloy, UNS C37710/ASTM B124. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools.
Colors and Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install the C101-4 4.0M (13′ 1-1/2″) Long 1.5mm (1/16″) Dia. Cable with Ceiling to Floor Fixings ❯ DOWNLOAD THE PDF HERE.
