SUPPORT for Drilled or Slotted Shelf (Use with 3mm Cables)

Original price was: $4.40.Current price is: $3.52.

Ideal for supporting drilled or slotted acrylic and glass shelves. Hole Diameter – 10mm (3/8″). Use with 3mm (1/8″) Dia. Cables Suspensions.

Frequently Bought Together with:

3mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner

Availability: In stock

Product Description

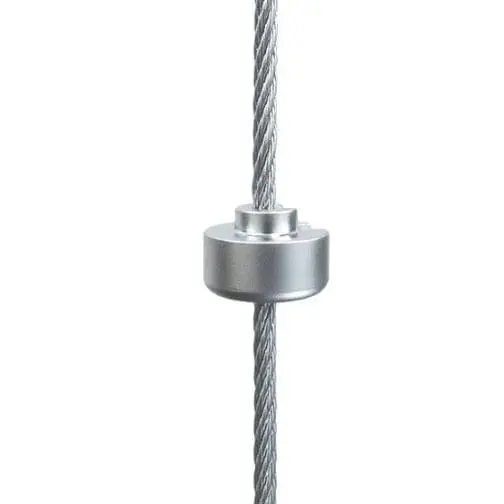

Cable Support for Drilled or Slotted Shelves — Drill-Thru Shelf Support

The CS01-3 cable shelf support features a 16mm (5/8″) diameter round profile fitting, designed for suspending drilled or slotted shelves of various thicknesses and material types. This high-quality shelf support is made of solid brass and is compatible with our 3mm cable display system / hanging hardware kits.

The drill-thru shelf supports are ideal for supporting lightweight acrylic shelves, flat tempered glass shelves, wooden shelves, and other custom suspended fixtures. The support is positioned under the shelf, attaches to cables, and securely locks in place with set screws using the supplied hex key.

Key Features:
• Drill-thru shelf support for drilled or slotted shelves
• Recommended use of four supports per shelf (longer shelves may require multiple supports attached to the longer side)
• Made of solid brass alloy with satin chrome finish
• Can support shelves 25mm (1″) thick or more (*subject to material type and weight)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Shelves require 10mm (3/8″) diameter holes
• Works with a wide range of materials such as acrylic, tempered glass, marble, caesarstone, wood, plywood, granite, butcher block, laminate, aluminum composite, etc.
• Compatible with 3mm diameter cable suspension system


Explore All Mounting Options

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

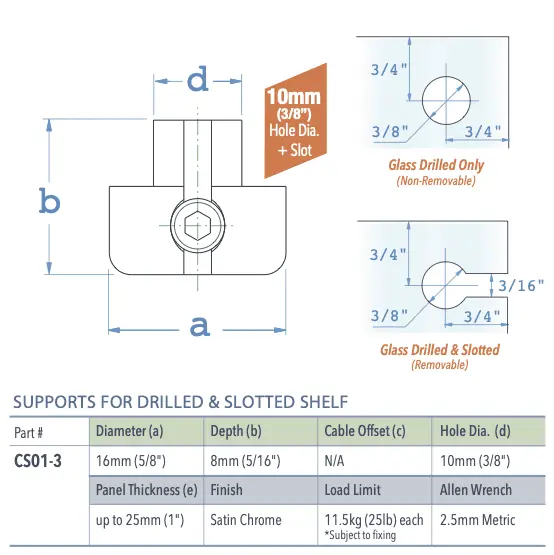

Specifications for CS01-3

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components

Installations Instructions

How to Install CS101-3 Support for Drilled or Slotted Shelf ❯ DOWNLOAD THE PDF HERE.
