3mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13′ 1-1/2″) Long

Original price was: $29.80.Current price is: $26.82.

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports in Satin Chrome Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

Frequently Bought Together with:

PANEL SUPPORT SINGLE – For panels up to 12.7mm (1/2") thick. (Use with 3mm Cables)

Use with 3mm Cable Hanging System to support acrylic frames, signs and graphic panels from sides.

SHELF SUPPORT SINGLE – For shelves up to 12.7mm (1/2") thick. (Use with 3mm Cables)

Use with 3mm Cable Hanging System to support acrylic and glass shelves up to 12.7mm (1/2") thick.

SHELF SUPPORT SINGLE – For shelves up to 10mm (3/8") thick. (Use with 3mm Cables)

Use with 3mm Cable Hanging System to support acrylic and glass shelves up to 10mm (3/8") thick.

SHELF SUPPORT DOUBLE – For shelves up to 10mm (3/8") thick. (Use with 3mm Cables)

Use with 3mm Cable Hanging System to support acrylic and glass shelves up to 10mm (3/8") thick.

Availability: In stock

Product Description

3mm (1/8″) Dia. Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13′ 1-1/2″) Long

The C301-4M heavy-duty cable suspension/wire hanging kit includes a factory top-crimped cable, a ceiling fixing, and a bottom/floor adjustable tensioner fixing. The kit is supplied with standard base supports — optional base supports in 25mm, 38mm or 50mm diameter are also available. It is primarily designed for typical ceiling-to-floor or tailored suspended applications, such as installations inside window frames, glass cabinets, and rails or tracks. The kit comes with cables available in 4 meters (13′ 1-1/2″), which can be conveniently adjusted or trimmed on-site during installation. For projects requiring longer lengths, we also offer replacement cables or kits with extended cable options of up to 10 meters (32′ 8″) or more upon request.

The C301-4M heavy-duty cable suspension/wire hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. The cables, crafted from robust galvanized steel, are designed to resist fraying, kinking, and snapping. Each cable consists of 49 steel strands encasing a single steel wire core, resulting in a strong yet flexible assembly with excellent abrasion resistance, capable of supporting up to 200 kg (441 lbs). The 3mm (1/8″) diameter cable can be utilized with a variety of standardmulti-position, or specialty supports for holding graphic panels, acrylic or glass shelves, decorative partition panels, display showcases, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, wine bottles, and various other presentations.

The C301-4M heavy-duty cable suspension/wire hanging kit can also be used with aluminum rails/tracks to enhance display flexibility and simplify the installation process. By using toggles affixed to the cable anchor, users can adjust the cables and move them sideways. Tracks are available in lengths of 4, 6, or 8 feet, with custom sizes or continuous runs available upon request. For installation, rail or track systems must be securely mounted to a solid structure or blocking, which includes attaching tracks to ceiling struts, structures above the ceiling line, or wall studs.

Additionally, the C301-4M heavy-duty cable suspension/wire hanging kit is compatible with a range of accessories, such as info/poster acrylic holdersacrylic framesarchitectural screens and decor panelsacrylic showcasesflat glass shelves, and sloped acrylic shelves.

Explore All Cable Fixing Kits

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Cable Length

Top Fixing

Bottom Fixing Tensioner

Load Limits

Compatibility

Weight

Mounting Options

Materials

Finish

Allen Wrench Size

Availability

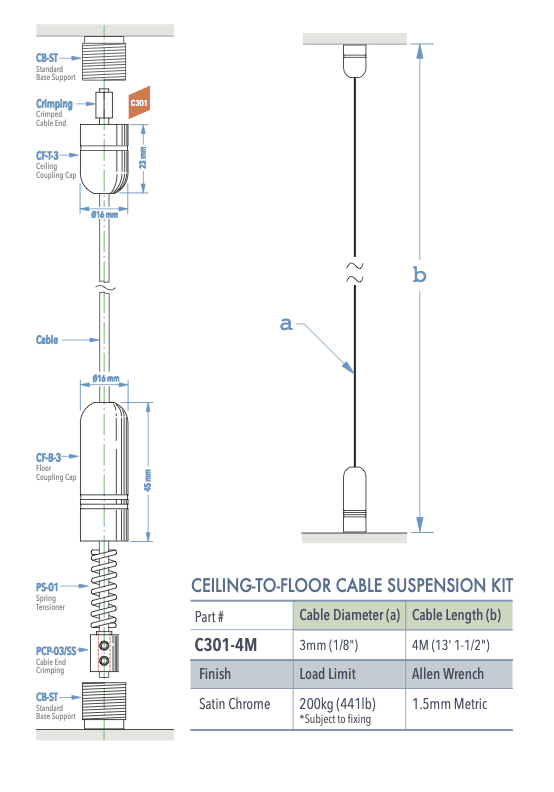

Specifications for C301-4M/SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

Cables used in assemblies are made from galvanized steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings are made from a brass alloy, UNS C37710/ASTM B124. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install C301-4M which is similar to this guide C101-4M Cable Set ❯ DOWNLOAD THE PDF HERE.
