PANEL SUPPORT DOUBLE – For panels up to 10mm (3/8″) thick (*Use with 3mm Stainless Cables)

Original price was: $12.80.Current price is: $11.52.

Use with 3mm Stainless Steel Cable Hanging System to support acrylic pockets, signs and graphic panels from sides.

Frequently Bought Together with:

PANEL SUPPORT SINGLE – For panels up to 10mm (3/8") thick (*Use with 3mm Stainless Cables)

Use with 3mm Stainless Steel Cable Hanging System to support acrylic pockets, signs and graphic panels from sides.

3mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long (*Stainless Steel)

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

Availability: In stock

Product Description

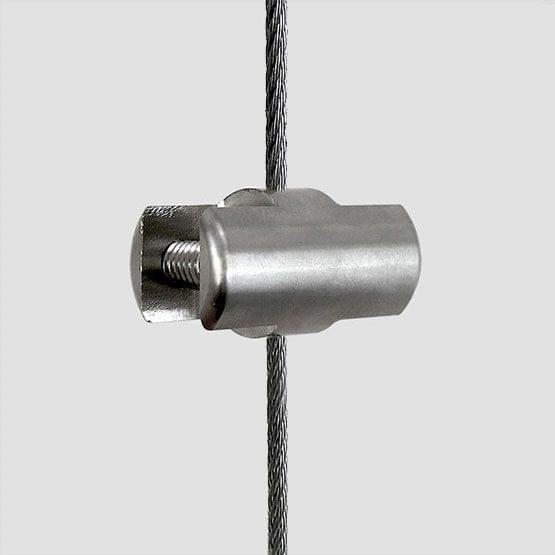

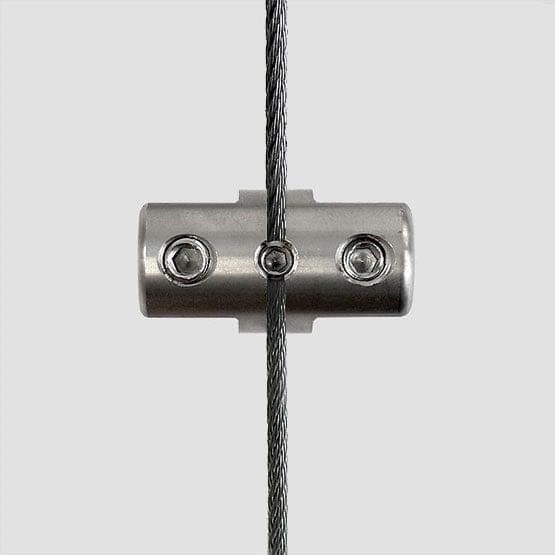

Cable Panel Support Double-Sided — Vertical Grip-Support (#304 Stainless Steel)

The CP304/SS cable side clamp support features a 18mm (45/64″) diameter round profile fitting, designed for suspending medium to large size vertical panels up to 10mm (3/8″) thick. This high-quality double-sided panel display clamp is made of solid stainless steel and is compatible with our 3mm stainless steel cable display system / hanging hardware kits.

The side clamps are great for supporting acrylic frames, decorative screens, partition walls, privacy screens, dividers, acoustic wall panels, window displays, sign blanks, logo panels, and large graphic panels from the sides. Attaching the clamp supports to suspended panels is easily done by affixing them to substrate sides with the specially designed nylon-tipped grub screw. The entire assembly is then attached to cables and securely locked into the desired position with the set screws and supplied hex key. Use the double-sided supports to link together adjoining panels that share a single cable.

Key Features:
• Double-sided vertical-grip clamp support for non-drilled panels
• Use at least two clamp supports per panel at the joined side (larger panels may require 3-4 supports per side)
• Made of stainless steel alloy with natural brushed stainless finish
• Clamp supports grip onto panels up to to 10mm (3/8″) thickness
• Recommended Safety Load Limits per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the panels and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, laminated glass, tempered glass, felt panels, PVC, foam-core, wood, etc.
• Compatible with 3mm (1/8″) diameter stainless steel cable suspension system

Explore All Mounting Options

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

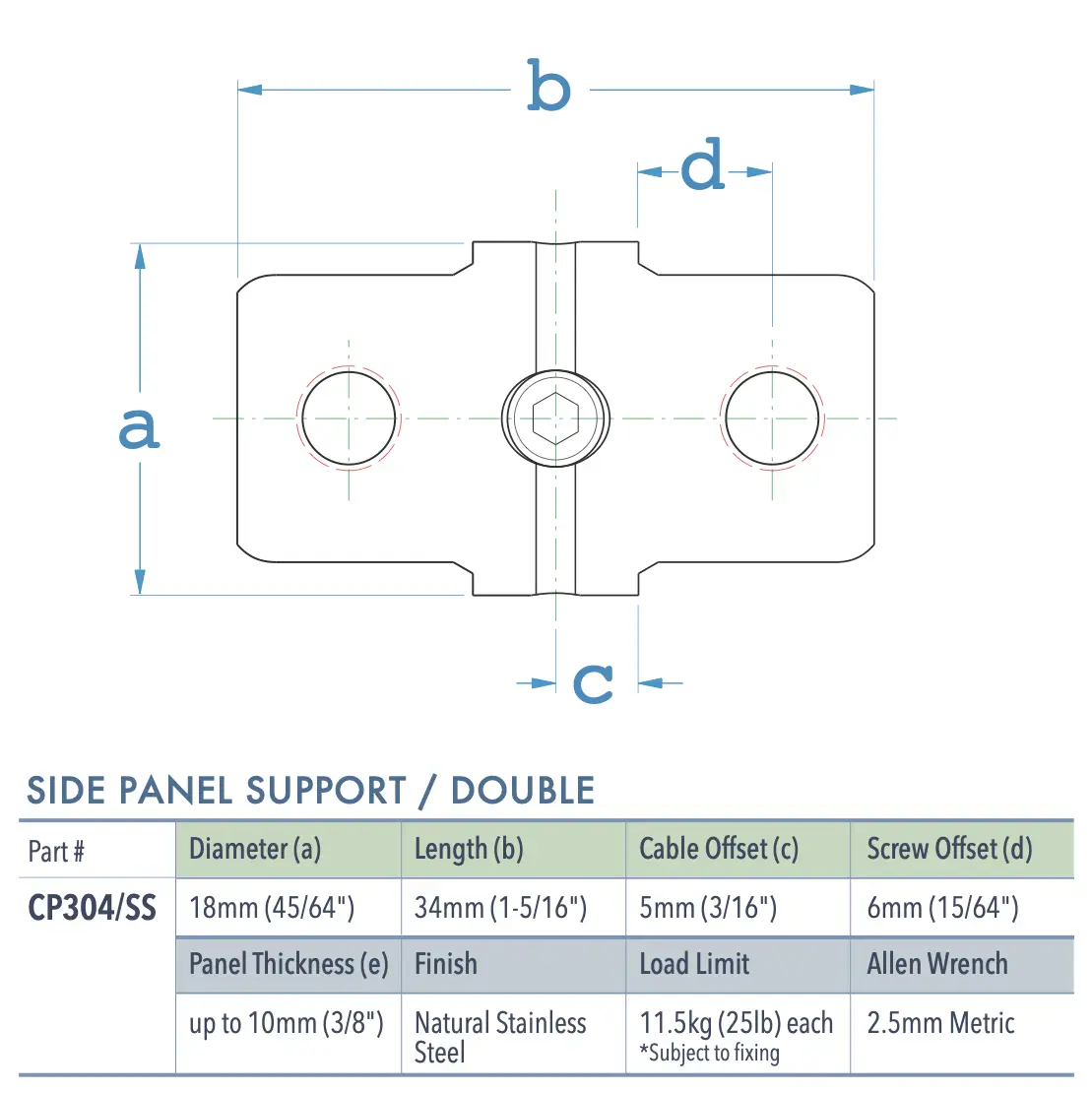

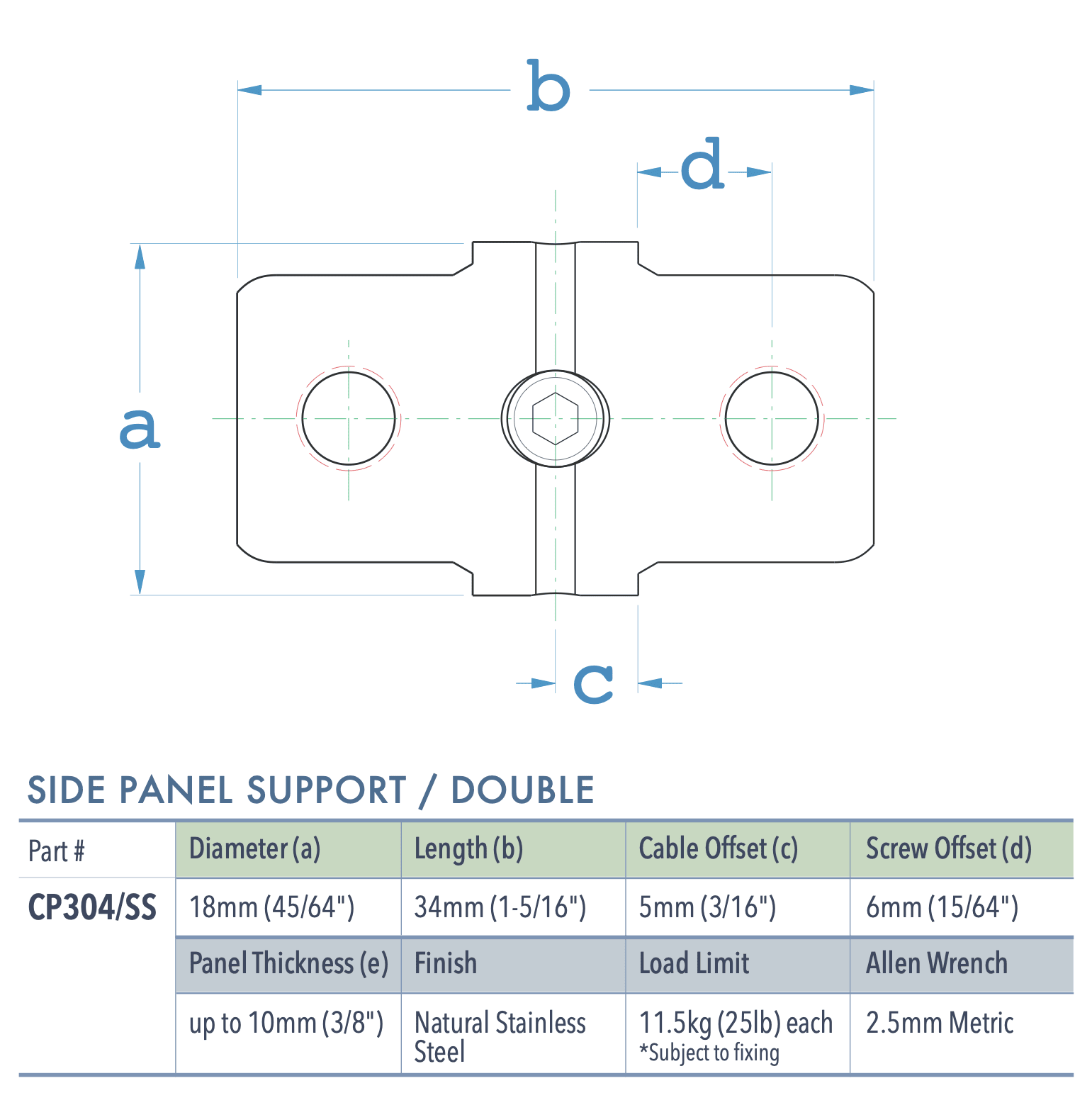

Specifications for CP304/SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors and Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.

Quality/Warranty:

Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
