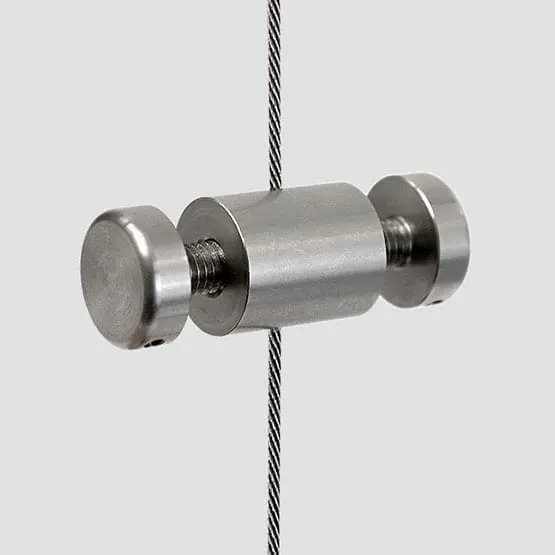

Cable Support with M6 Stud-Cap — Double-Sided Cable Standoff Support for Panels with Holes (#304 Stainless Steel)

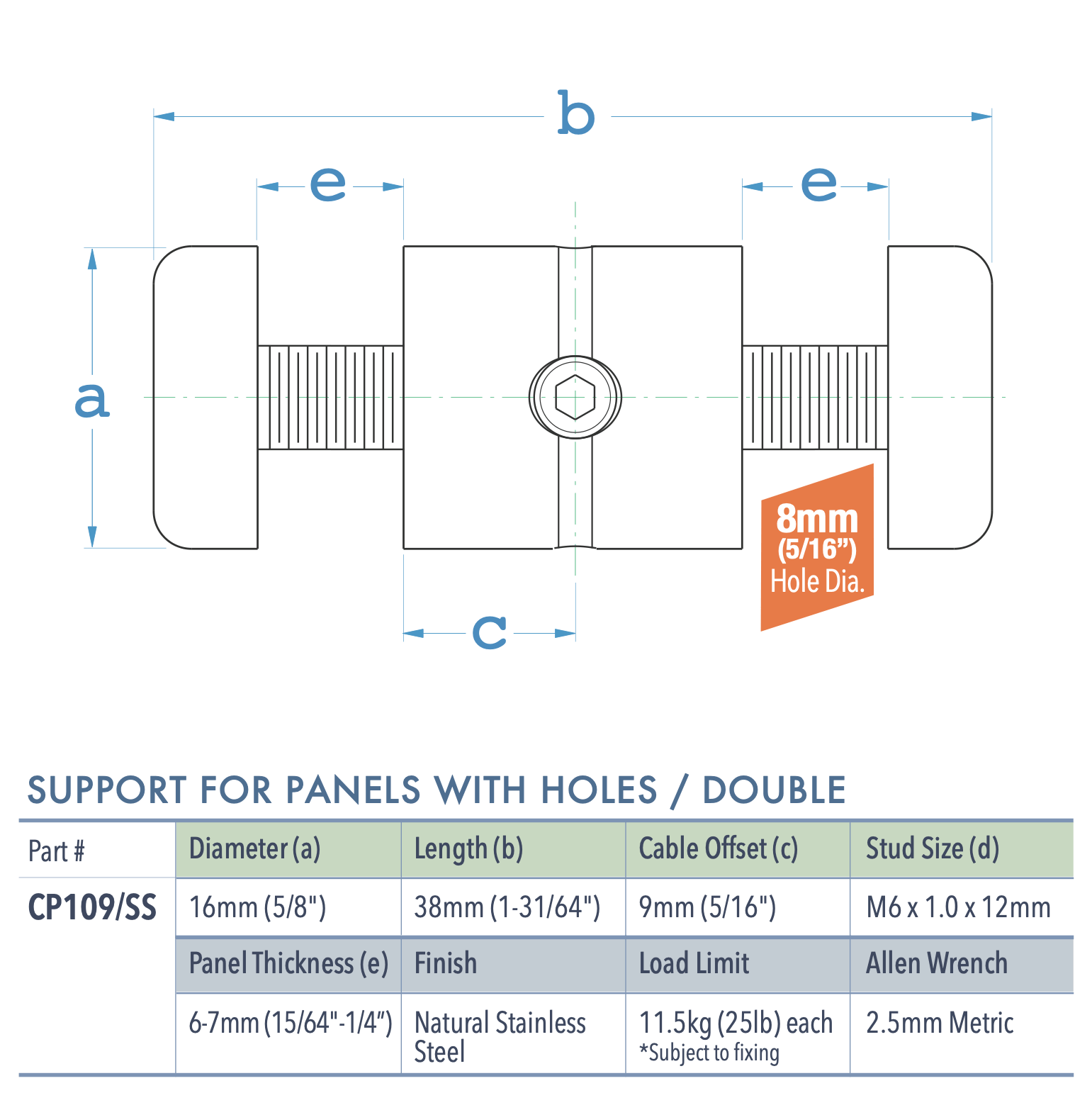

The CP109/SS cable standoff support features a 16mm (5/8″) diameter round profile fitting with an M6 stud-cap, designed for suspending medium to large-sized drilled panels 6-7mm (15/64”-1/4″) thick or a combination of two panels 3mm (1/8″) thick each. This high-quality double-sided panel display standoff is made of solid stainless steel and is compatible with our
1.5mm stainless steel cable display system /
hanging hardware kits.
These cable standoffs are ideal for supporting
acrylic frames, decorative screens, partition walls, privacy screens, dividers, acoustic wall panels, window displays, signs, logo panels, and graphic panels. Supports attach to vertical cables and are securely locked in place using set screws and the supplied hex key. All acrylic panels and accessories require 7mm (1/4″) diameter holes for use with M6 studs.
Key Features:
• Double-sided cable standoff support for drilled panels
• Recommended use of two to four supports per panel depending on size (larger panels may require 3-4 supports per side)
• Made of stainless steel alloy with natural brushed stainless finish
• Compatible with 6-7mm (15/64”-1/4″) thick panels (see options for thicker substrates)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Nylon washers available for use with glass panels
• Works with a wide range of materials, including acrylic, tempered glass, PVC, foam-core, wood, etc.
• Compatible with 1.5mm (1/16″) diameter stainless steel cable suspension system
