SUPPORT w/SCREW-CAP – For 10mm (3/8") thick panels with holes (Use with 1.5mm Cables)

$15.90

Ideal for supporting signs and graphic panels

Availability: In stock (can be backordered)

Frequently Bought Together with:

1.5mm (1/16") CABLE w/Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long

Includes Top and Bottom Fixings with Spring Tensioner

HEAVY DUTY CEILING SUPPORT (*Set with Screws)

Use with cable/rod and wall mount fittings to support heavier applications. Includes three (3) mounting screws. (*HDS has M14 Right Handed Threads and does not work with 6mm Rod System)

Product Description

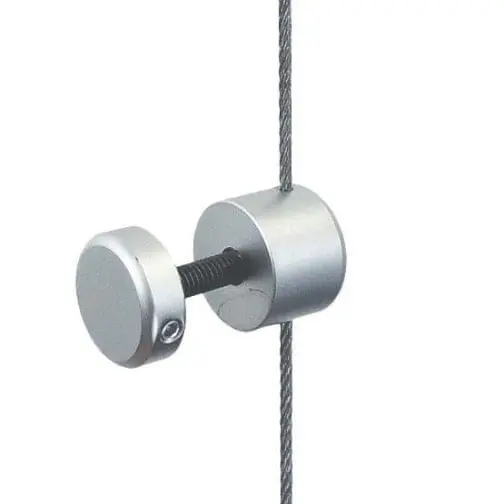

Support with M4 Stud-Cap Single-Sided for Panels with Holes

For panels up to 10mm (3/8″) thick. Panel hole size diameter 6mm (15/64″). Use with 1.5mm (1/16″) Dia. Cables Suspensions.

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability


Specifications for CS13_S-3_8

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components

Installations Instructions

How to Install CS13/S-3/8 Support Single-Sided for Panels with Holes ❯ DOWNLOAD THE PDF HERE.
