SCREW CAP WITH M6 STUD
$1.80 – $2.60
Can be mounted onto the base of modular sign supports to create Dual-Grip Sign Standoff Set, Standoff Support–Screw Cap Set, or used as replacement cap.
Product Description

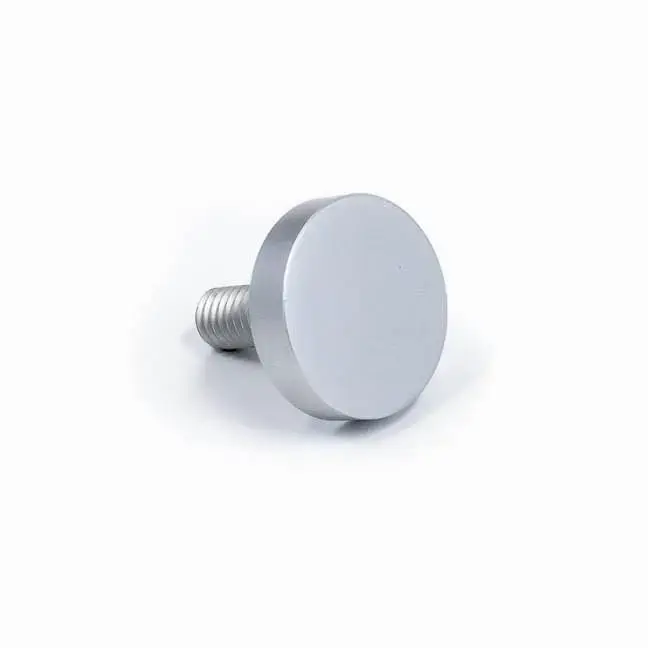

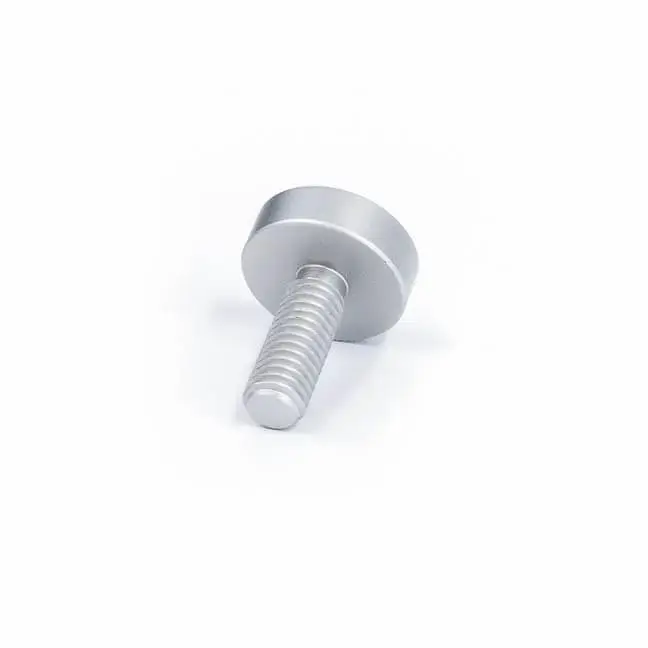

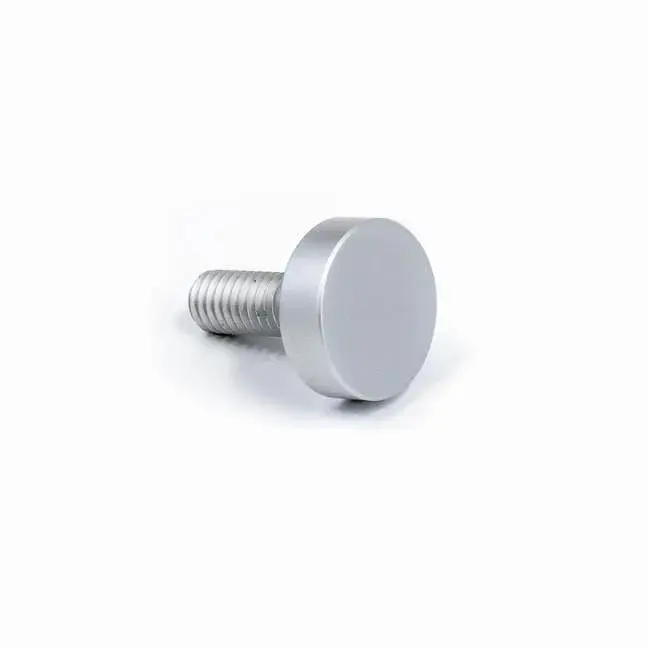

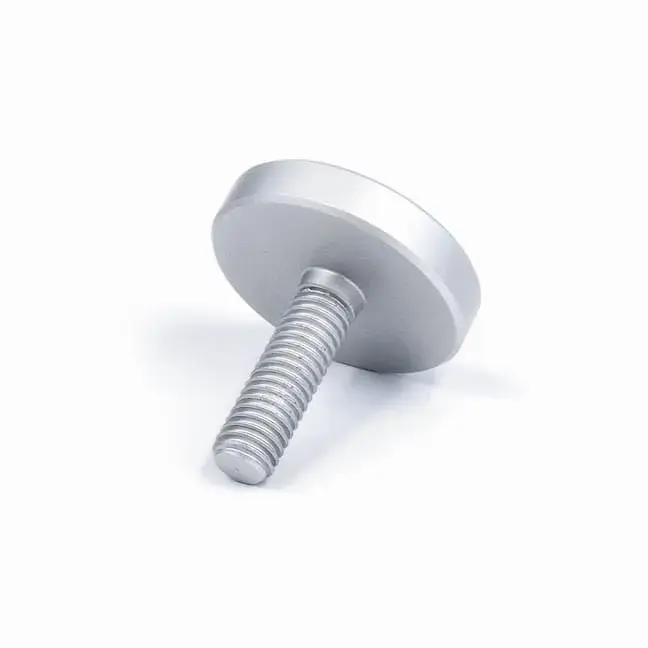

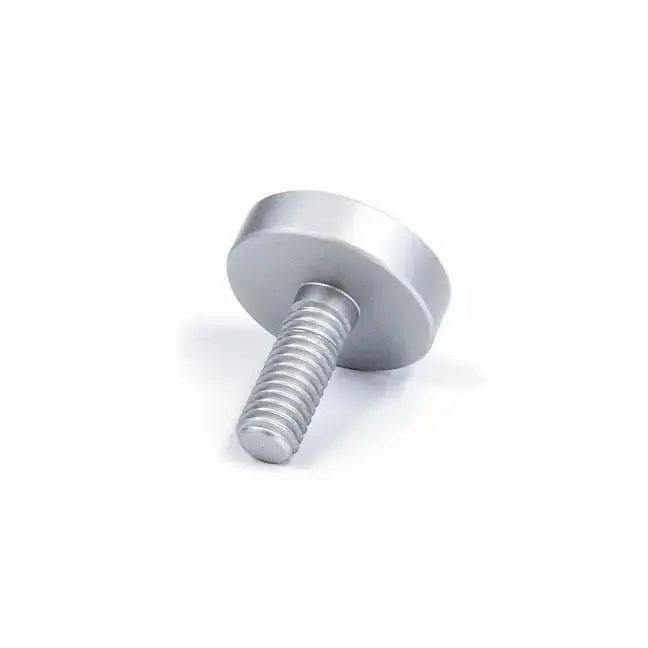

Replacement Screw Cap with M6 Stud
Available in sizes:
- 16mm (5/8”)
- 20mm (3/4”)
- 25mm (1”)
Compatible with 16mm (5/8″) Dia. WSM Series Sign Standoffs. Can be mounted onto the base of modular sign supports to create Dual-Grip Sign Standoff Set, Standoff Support–Screw Cap Set, or used as replacement cap.
Attributes

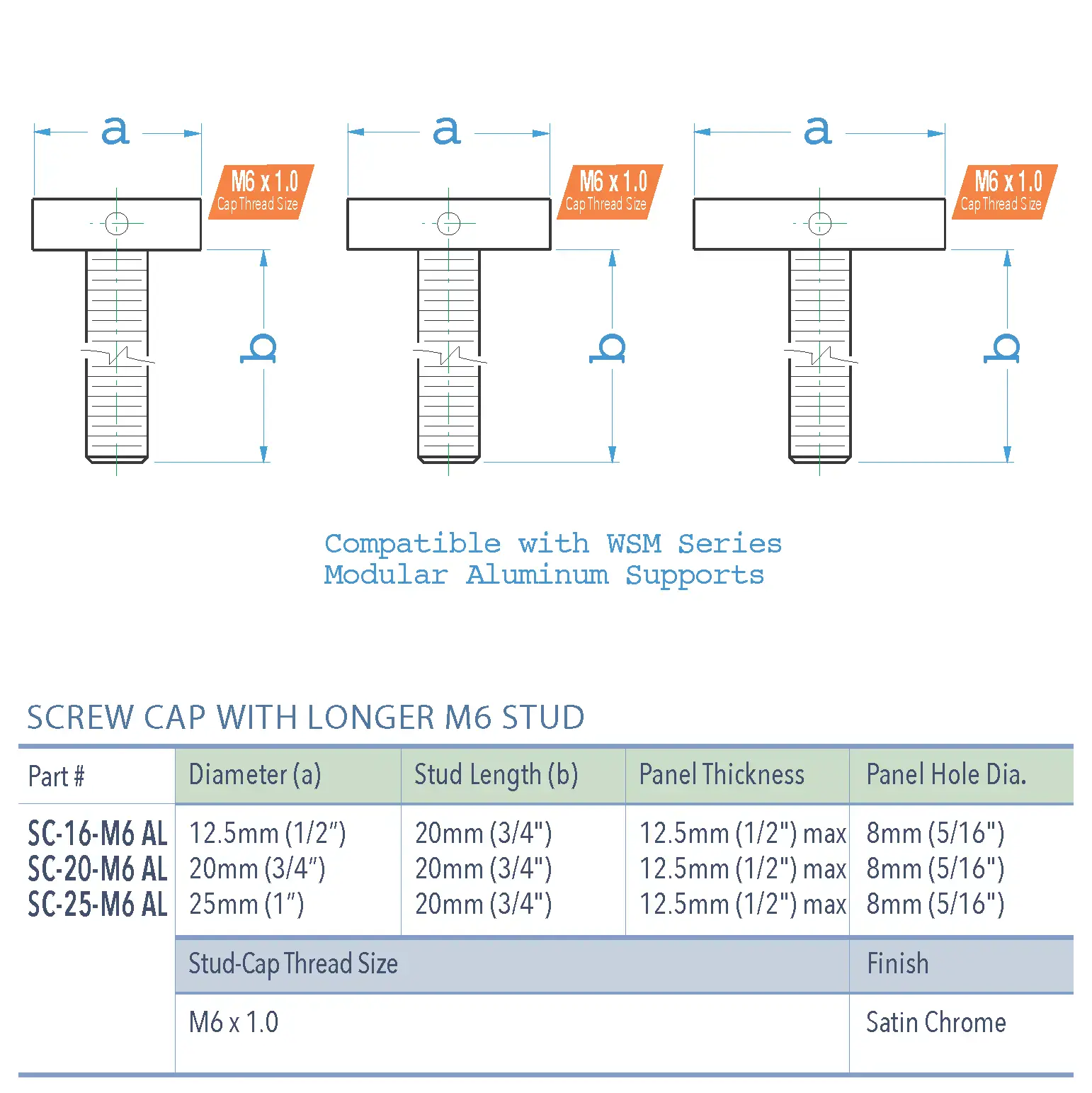

| Accessory Dimensions | 16mm (5/8") Dia. x 20mm (3/4") Stud Length, 20mm (3/4") Dia. x 20mm (3/4") Stud Length, 25mm (1") Dia. x 20mm (3/4") Stud Length |
|---|---|
| Panel Hole Diameter | |
| Stud Thread Size | |
| Material Thickness | |
| Load Limits | |
| Accessory Compatibility | Use with 16mm (5/8") Dia. WSM Series Sign Standoff Supports, Use with 20mm (3/4") Dia. WSM Series Sign Standoff Supports, Use with 25mm (1") Dia. WSM Series Sign Standoff Supports |
| Weight | |
| Mounting Options | |
| Materials | |
| Finish | |
| Availability |
Composition and Materials:
For quality and durability, all sign/panel support fittings are machined from high-grade brass or aluminum alloy, or from solid stainless steel #SS201 or #SS304 as standard. Other stainless steel type #SS316 or #SS582 is also available for custom items. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors and Finishes:
Brass fittings – are available in stock in standard satin chrome finish. Custom finishes such as polished chrome, polished brass or brushed warm nickel plating are available upon request. Lead times will be longer and a minimum quantity may be required.
Aluminum fittings – are available in stock in standard clear or satin anodized finish.
Stainless steel fittings – are available in stock in standard satin brushed stainless finish. Polished stainless is also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
Brass fittings – are rated for indoor use only. They perform well in all closed environments as long as not exposed to direct weathering such as rain, snow, moisture, etc.
Aluminum fittings – are suggested for both interior and exterior use. Other custom finishes such as black or color anodized are available upon request. Lead times will be longer and a minimum quantity may be required.
Stainless steel fittings – stock items are rated for indoor use only. For marine or other high humidity environments, please request stainless steel type 316/582 fittings that have a higher corrosion resistance. Lead times will be longer and a minimum quantity may be required.
Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Sign/panel support fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
