CH4 at 45 DEGREE SHELF SUPPORT – Left or Right Side


For use with any extrusions – channel mounted. Available in left or right orientation.

Product Description

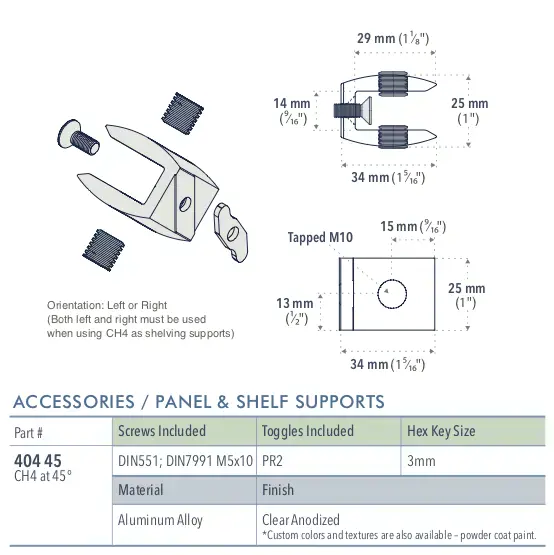

CH4 at 45° Shelf Support – Left Side

For use with any extrusions – channel mounted. Available in left or right orientation.

Includes DIN551 M10x10 set screws (2 ea), DIN7991 M5x10 screw (1 ea) and PR2 toggle (1 ea).



Extrusion Compatibility


Mounting Options



Allen Wrenches


Parts Compatibility

Screw Size

Shelf & Panel Supports

Shelf Supports

Specifications for 404-45

Composition and Materials:

All aluminum profiles and most interlocking components are manufactured of high-grade aluminum alloy by method of cold extrusion. They have a high strength, close tolerance and a sturdy surface finish.

Colors and Finishes:

Standard finish is clear satin anodized. Color powder coating is also available at request.

Product Limitations:

Aluminum extrusions and components are suggested for both interior and exterior use. Aluminum components are characterized by their lightness, strength, corrosion resistance, and high durability leading to a wide range of product forms and extensive use in engineering applications. However, despite its high durability and corrosion resistance, some simple steps should be employed when handling and cleaning aluminum to avoid staining and damage. To protect against damage to the surface of aluminum, avoid scraping against hard or sharp surfaces, do not drag or throw components on their surfaces, and use soft slings when lifting heavy components. Clean regularly to remove any build up or dirt. If left for an extended period of time, grime may cause staining and depending on the extent of staining. Clean with plain water with mild soap/detergent or non-etching chemical cleaner.


Aluminum profiles and interlocking components have a 12 month warranty. This warranty does not cover damage due to external causes, including accident, abuse, misuse, failure to follow installation requirements and problems caused by use of parts and components not supplied by Nova Display Systems.
