SUPPORT w/SCREW-CAP – For 12.7mm (1/2″) thick panels with holes (Use with 3mm Cables)

Original price was: $9.20.Current price is: $8.28.

Use for supporting signs and graphic panels 12.7mm (1/2″) thick. Panel hole size diameter 6mm (15/64″). Use with 3mm (1/8″) Diameter Cable Suspensions.

Frequently Bought Together with:

3mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner

Heavy Duty Ceiling Support (*Set with Screws)

Use with cable/rod and wall mount fittings to support heavier applications. Supplied with 1-1/2" long wood screws.

*HDS has M14 Right Handed Threads and does not work with 6mm Rod System.

Availability: In stock (can be backordered)

Product Description

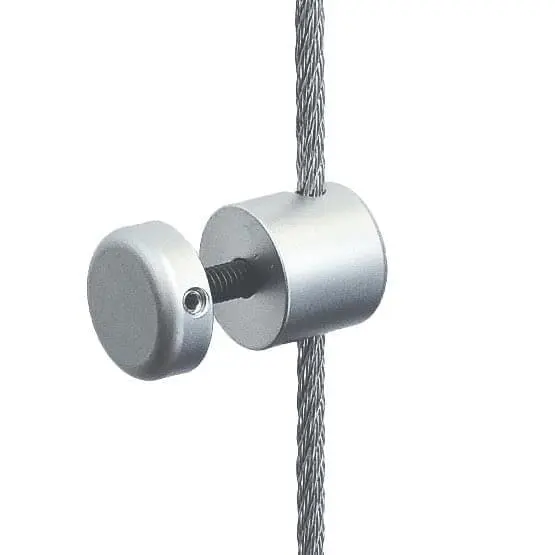

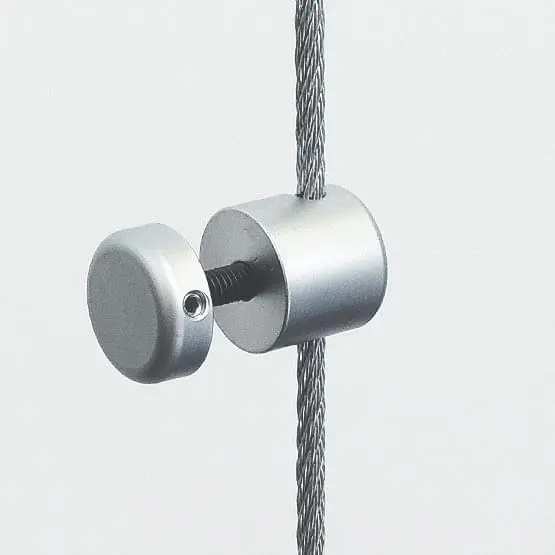

Cable Support with M4 Stud-Cap — Single-Sided Cable Standoff Support for Panels with Holes

The CS13-3/S-1/2 cable standoff support features a 16mm (5/8″) diameter round profile fitting with an M4 stud-cap, designed for suspending small to medium-sized drilled panels 12.7mm (1/2″) thick. This high-quality single-sided panel display standoff is made of solid brass and is compatible with our 3mm cable display system / hanging hardware kits.

These cable standoffs are ideal for supporting acrylic frames, decorative screens, partition walls, privacy screens, dividers, acoustic wall panels, window displays, signs, logo panels, and graphic panels. Supports attach to vertical cables and are securely locked in place using set screws and the supplied hex key. All acrylic panels and accessories require 4.7mm (3/16″) diameter holes for use with M4 studs.

Key Features:
• Single-sided cable standoff support for drilled panels
• Recommended use of two to four supports per panel depending on size (larger panels may require 3-4 supports per side)
• Made of solid brass alloy with satin chrome finish
• Compatible with 12.7mm (1/2″) thick panels (see options for thicker substrates)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Nylon washers available for use with glass panels
• Works with a wide range of materials, such as acrylic, laminated glass, tempered glass, felt panels, PVC, foam-core, wood, etc.
• Compatible with 3mm diameter cable suspension system


Explore All Mounting Options

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability


Specifications for CS13-3 S-1/2

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components

Installations Instructions

How to Install CS13-3/S-1/2 Support Single-Sided for Panels with Holes ❯ DOWNLOAD THE PDF HERE.
