DC1225 Collage Photo Wall Display Concept for 3×4 Inserts (15FT WALL)
Price range: $1,072.89 through $1,526.50 Select options This product has multiple variants. The options may be chosen on the product page

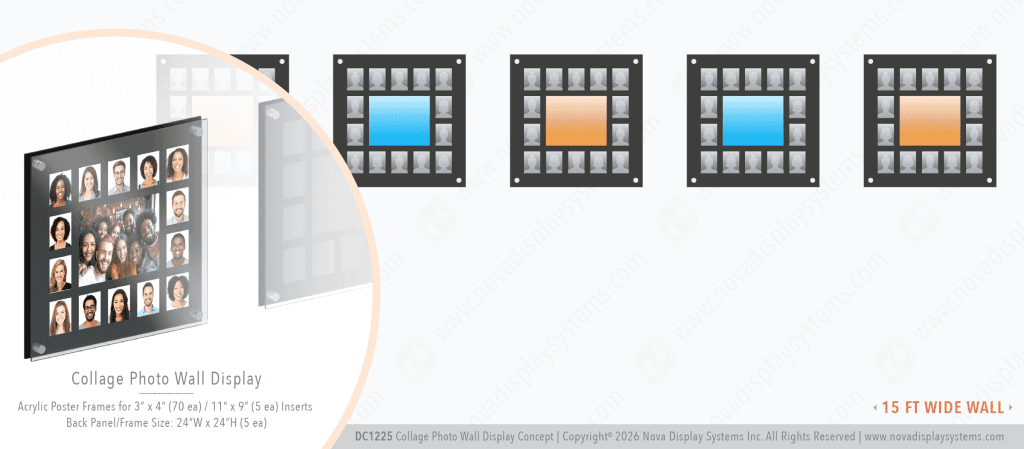

DC1225 Collage Photo Wall Display with Acrylic Frames for 3 x 4 Inserts
Description:
Transform your space into a captivating gallery with our Collage Photo Wall Display—an innovative frameless photo display system that delivers striking depth and dimension via double-depth standoffs. Elevate your photo imagery by suspending the front acrylic layer a full 3/4″ forward from the back panel, crafting a dynamic, sculptural vibe that turns flat photos into immersive art.
Inspired by our classic frame design, this adaptation accommodates a central larger photo surrounded by smaller formats, using the same sandwich framing technique. The hierarchical layout draws the eye to a focal point, making it ideal for storytelling displays—like wedding timelines or product highlights—that require emphasis on a key element in educational or promotional contexts.
Crafted for effortless elegance, the system shines with premium acrylic panels tailored for fluid, multi-image compositions:
Inspired by our classic frame design, this adaptation accommodates a central larger photo surrounded by smaller formats, using the same sandwich framing technique. The hierarchical layout draws the eye to a focal point, making it ideal for storytelling displays—like wedding timelines or product highlights—that require emphasis on a key element in educational or promotional contexts.
Crafted for effortless elegance, the system shines with premium acrylic panels tailored for fluid, multi-image compositions:
- Backing Panel: 1/4″ thick acrylic available in frost, matte white, or matte black finishes for a clean, supportive base.
- Front Frame Set: 1/8″ thick clear acrylic back and non-glare acrylic front cover to help protect and showcase your images without distractions.
Standard standoff hardware is crafted from durable aluminum with a satin anodized finish, ensuring easy installation and a sleek, modern look. Customize further with premium finish alternatives, including natural stainless steel or black, for a perfect match to your decor. *Select back panel and standoff hardware finish type on the product page.

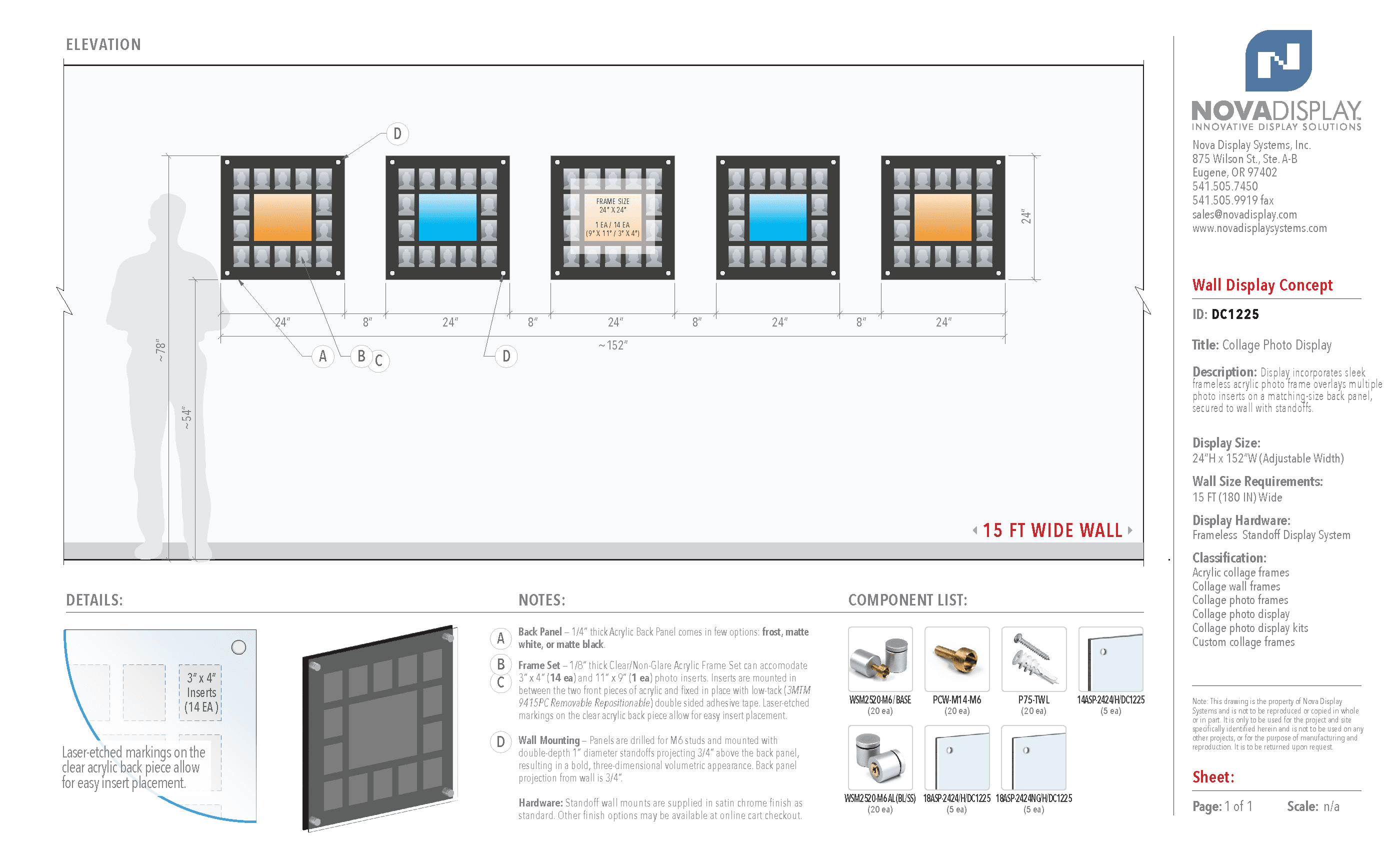

Size Requirements:

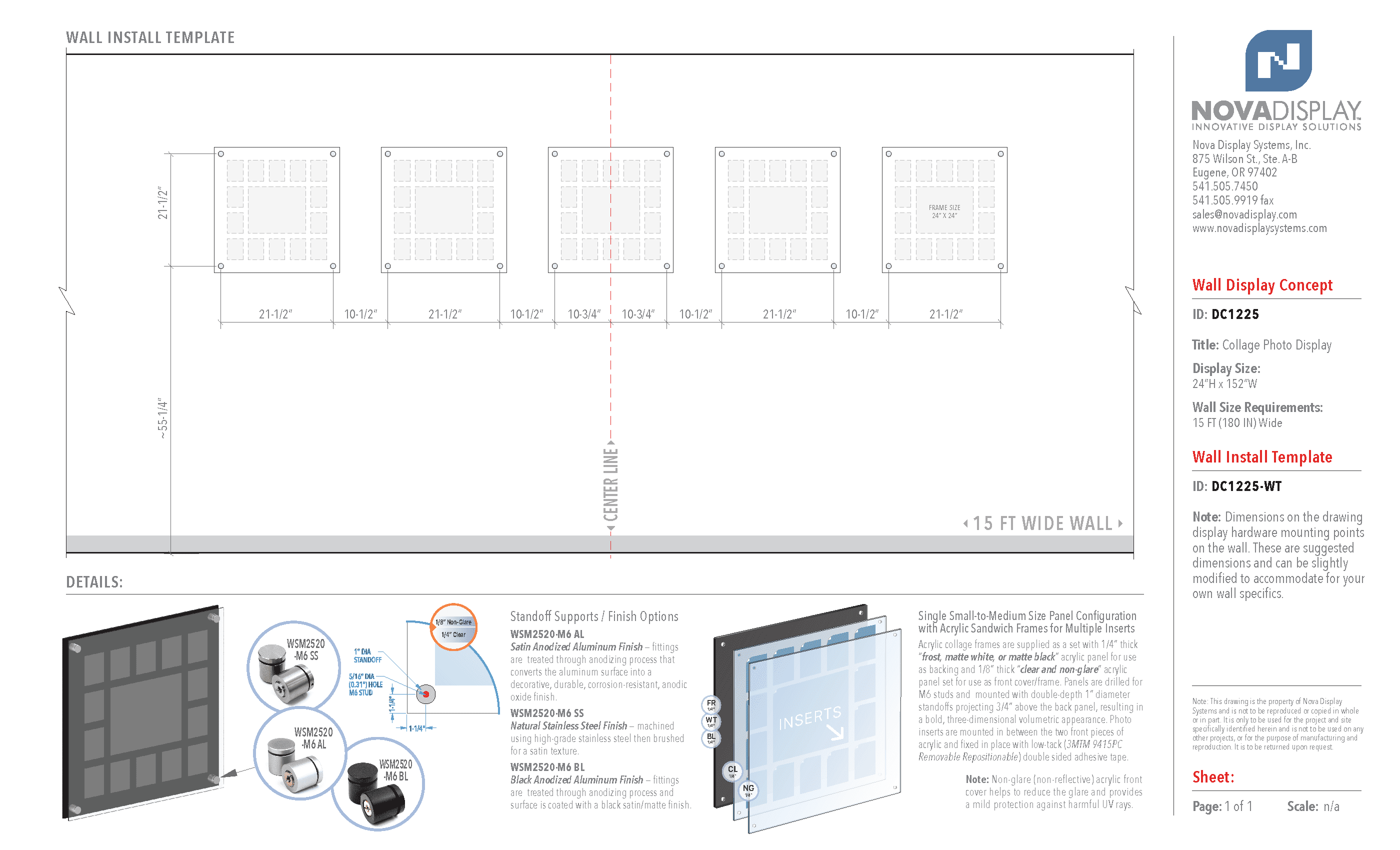

Overall Display Size: 152″W x 24″H
Wall Size: 15 ft (180 in) Wide
Component List:
-
14ASP-2424/H-M6/DC1225 (*CL/FR/WT/BL) – Acrylic Back Panel (5 ea)
Panel Size: 24″ x 24″
Finish Type: Acrylic Back Panel/Backboard comes in few finish choices such as clear, frost matte, white matte, or black matte (*CL/FR/WT/BL) -
18ASP-2424/H-M6/DC1225 – Clear Acrylic Panel (5 ea)
-
18ASP-2424NG/H-M6/DC1225 – Non-Glare Acrylic Front Panel (5 ea)
Frame Size: 24″ x 24″
Insert Size: 3″ x 4″ (14 Photo Inserts per Frame); 11″ x 9″ (1 Photo Insert per Frame). -
WSM2520-M6 (*AL/BL/SS) – 1″ Dia. Standoff in Satin Clear Anodized, Satin Black Anodized, or Stainless Finish (20 ea)
-
WSM2520-M6 / BASE (*AL/BL/SS) – 1″ Dia. Standoff Base in Satin Anodized or Stainless Finish (20 ea)
-
PCW-M14-M6 – Standoff Support Joiner (20 ea)
-
P75-TWL – Twist-n-Lock Drywall Anchor Set (20 ea)
Key Features:
- Attractive, modern appearance. Excellent choice for adding visual interest and depth to smaller collages, such as in cozy offices or boutique interiors, where a striking yet compact presentation is desired.
- Provides a quick and easy way to change photo inserts.
- Photo inserts are mounted in between the two front pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape.
- Laser-etched markings on the clear acrylic back piece allow for easy insert placement.
- Works with standard prints or paper posters up to 135 gsm or 1 mm (1/32′′) thickness.
- Non-reflective acrylic front used to reduce the glare from sunny windows and spot lighting.
- Customizable to your needs at no extra cost.
Availability & Customizations:
- Fabrication Time: 5-10 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Add-ons:
- Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“.
