DC1223 Collage Photo Wall Display Concept for 4×4 Inserts (14FT WALL)
Price range: $2,306.56 through $3,266.64 Select options This product has multiple variants. The options may be chosen on the product page

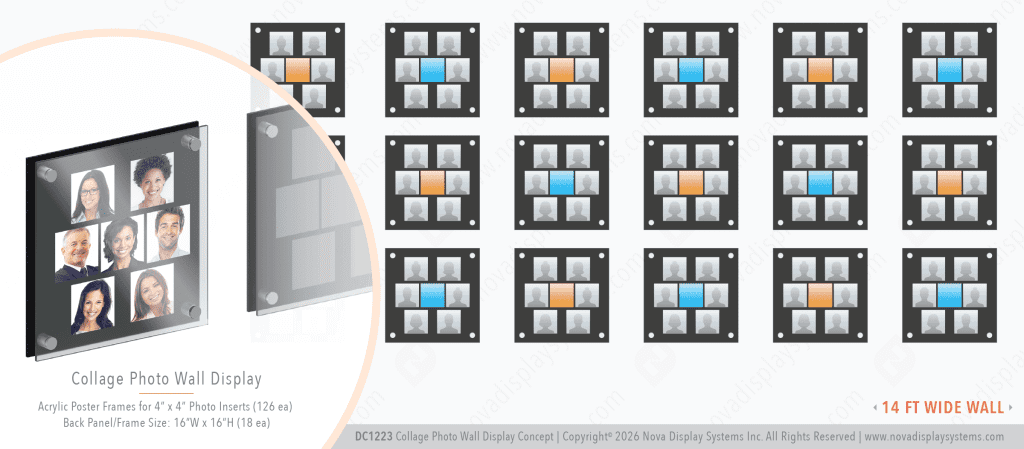

DC1223 Collage Photo Wall Display with Acrylic Frames for 4 x 4 Inserts
Description:
Elevate your walls with our Collage Photo Wall Display, a stunning system that creates a bold, three-dimensional effect through innovative double-depth standoffs. The front acrylic layer is positioned 3/4″ above the back panel, adding depth and visual intrigue to your photos. This frameless design features high-quality acrylic panels for seamless multi-photo arrangements:
- Backing Panel: 1/4″ thick acrylic available in frost, matte white, or matte black finishes for a clean, supportive base.
- Front Frame Set: 1/8″ thick clear acrylic back and non-glare acrylic front cover to help protect and showcase your images without distractions.
Standard standoff hardware is crafted from durable aluminum with a satin anodized finish, ensuring easy installation and a sleek, modern look. Customize further with premium finish alternatives, including natural stainless steel or black, for a perfect match to your decor. *Select back panel and standoff hardware finish type on the product page.
Size Requirements:

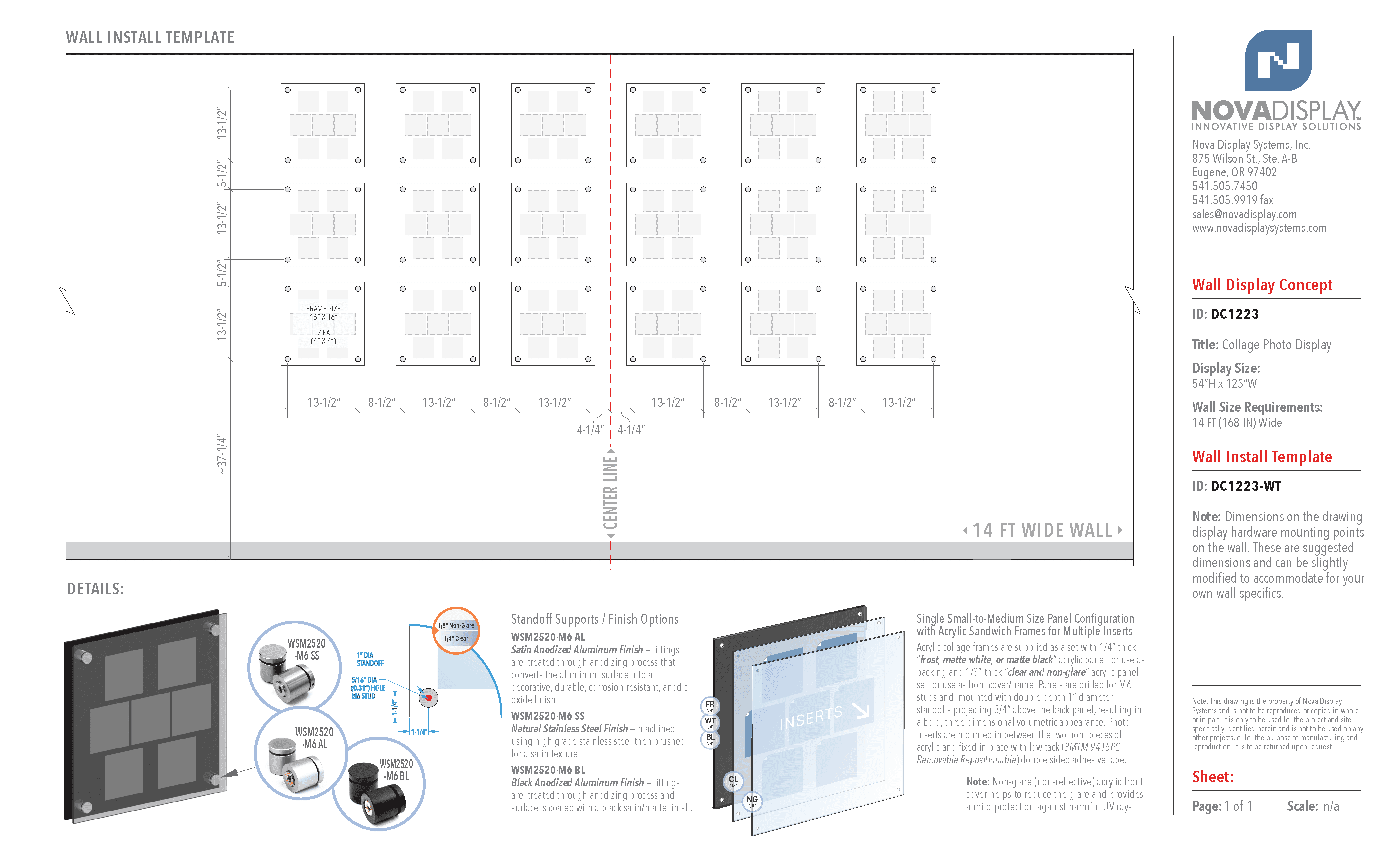

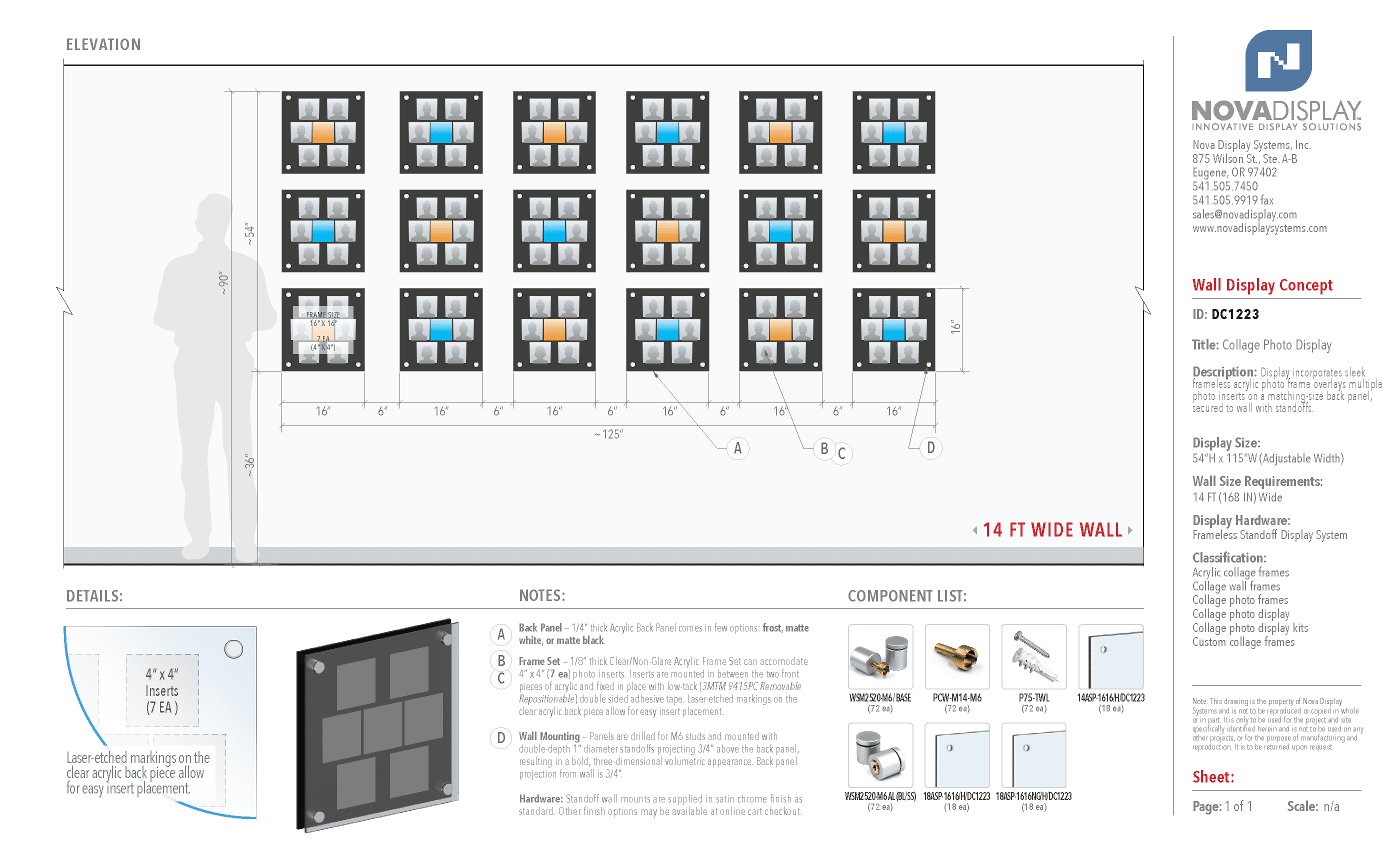

Overall Display Size: 115″W x 54″H
Wall Size: 14 ft (168 in) Wide
Component List:
-
14ASP-1616/H-M6/DC1223 (*CL/FR/WT/BL) – Acrylic Back Panel (18 ea)
Panel Size: 16″ x 16″
Finish Type: Acrylic Back Panel/Backboard comes in few finish choices such as clear, frost matte, white matte, or black matte (*CL/FR/WT/BL) -
18ASP-1616/H-M6/DC1223 – Clear Acrylic Panel (18 ea)
-
18ASP-1616NG/H-M6/DC1223 – Non-Glare Acrylic Front Panel (18 ea)
Frame Size: 16″ x 16″
Insert Size: 4″ x 4″ (7 Photo Inserts per Each Frame) -
WSM2520-M6 (*AL/BL/SS) – 1″ Dia. Standoff in Satin Clear Anodized, Satin Black Anodized, or Stainless Finish (72 ea)
-
WSM2520-M6 / BASE (*AL/BL/SS) – 1″ Dia. Standoff Base in Satin Anodized or Stainless Finish (72 ea)
-
PCW-M14-M6 – Standoff Support Joiner (72 ea)
-
P75-TWL – Twist-n-Lock Drywall Anchor Set (72 ea)
Key Features:
- Attractive, modern appearance. Excellent choice for adding visual interest and depth to smaller collages, such as in cozy offices or boutique interiors, where a striking yet compact presentation is desired.
- Provides a quick and easy way to change photo inserts.
- Photo inserts are mounted in between the two front pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape.
- Laser-etched markings on the clear acrylic back piece allow for easy insert placement.
- Works with standard prints or paper posters up to 135 gsm or 1 mm (1/32′′) thickness.
- Non-reflective acrylic front used to reduce the glare from sunny windows and spot lighting.
- Customizable to your needs at no extra cost.
Availability & Customizations:
- Fabrication Time: 5-10 Bus. Days
- For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Add-ons:
- Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“.
