SUPPORT SINGLE LONG for 10mm Rod (*Use with 1.5mm Stainless Cables)

Original price was: $5.40.Current price is: $4.32.

Use with 1.5mm Cable Hanging System in stainless steel finish to support fabrics, banners, signs, shelves, or lightweight clothing/garments on horizontal rods. *Rods can be cut to size / not included.

Frequently Bought Together with:

SUPPORT SINGLE for 10mm Rod (*Use with 1.5mm Stainless Cables)

Use with 1.5mm Cable Hanging System in stainless steel finish to support fabrics, banners, signs, shelves, or lightweight clothing/garments on horizontal rods. *Rods can be cut to size / not included.

0.5M (1' 7-11/16") LONG 10mm (3/8") Dia. Threaded Rod

Right Handed M6 Threaded Rod at Both Ends

1.0M (3' 3-3/8") LONG 10mm (3/8") Dia. Threaded Rod

Right Handed M6 Threaded Rod at Both Ends

Availability: In stock

Product Description

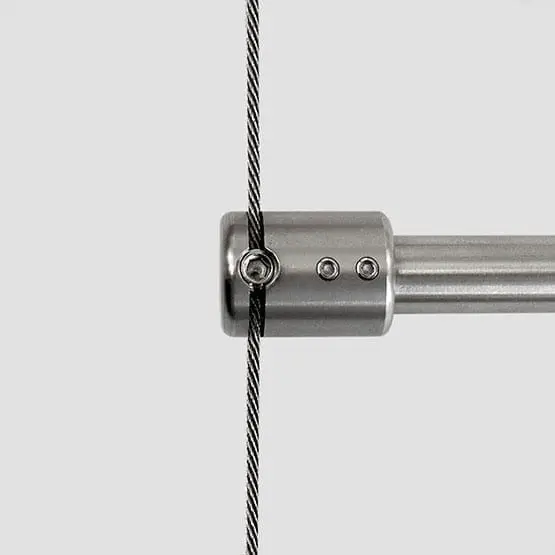

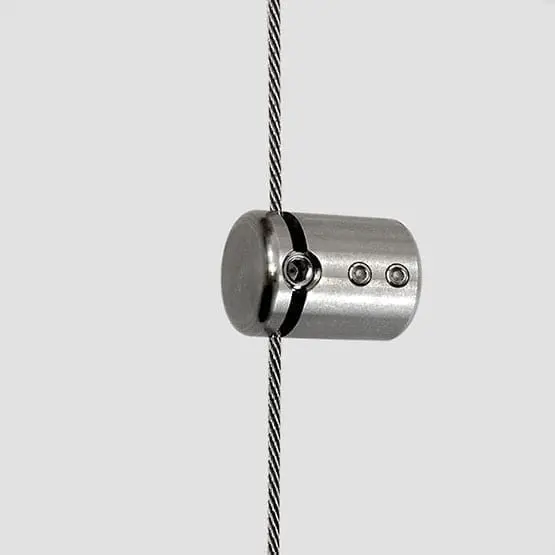

Cable Support for 10mm Rod Single-Sided — Support for Horizontal Rod (#304 Stainless Steel)

The CR110L/SS cable rod support features a 16mm (5/8″) diameter round profile fitting, designed for holding a 10mm (3/8″) rod horizontally between two cables. This high-quality single-sided rod support is made of solid stainless steel, includes two set screw for extra security, and is compatible with our 1.5mm stainless steel cable display system / hanging hardware kits.

The horizontal rods suspended on cables are suitable for a wide range of applications. They are versatile and can be used for displaying art, craft, fabrics, flags, banners, signs, shelves, and lightweight clothing/garments. Attaching the rods to cables is easily accomplished by inserting the rods into the cable support fitting and securing them with the set screw. The entire assembly is then attached to cables and securely locked into the desired position with set screws and the supplied hex key.

Key Features:
• Single-sided rod supports are recommended for use with threaded rods in lengths of 0.5m (1′ 7-11/16”) and 1.0m (3′ 3-3/8”).
• Use the 10mm horizontal rods to support lightweight to heavy items and merchandise (remove threaded ends from rods before hanging)
• Ideal for hanging fabrics, flags, banners, signs, shelves, clothing/garments, etc.
• Made of stainless steel alloy with natural brushed stainless finish
• Compatible with 1.5mm (1/16″) diameter stainless steel cable suspension system

Explore All Mounting Options

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Materials

Finish

Allen Wrench Size

Availability

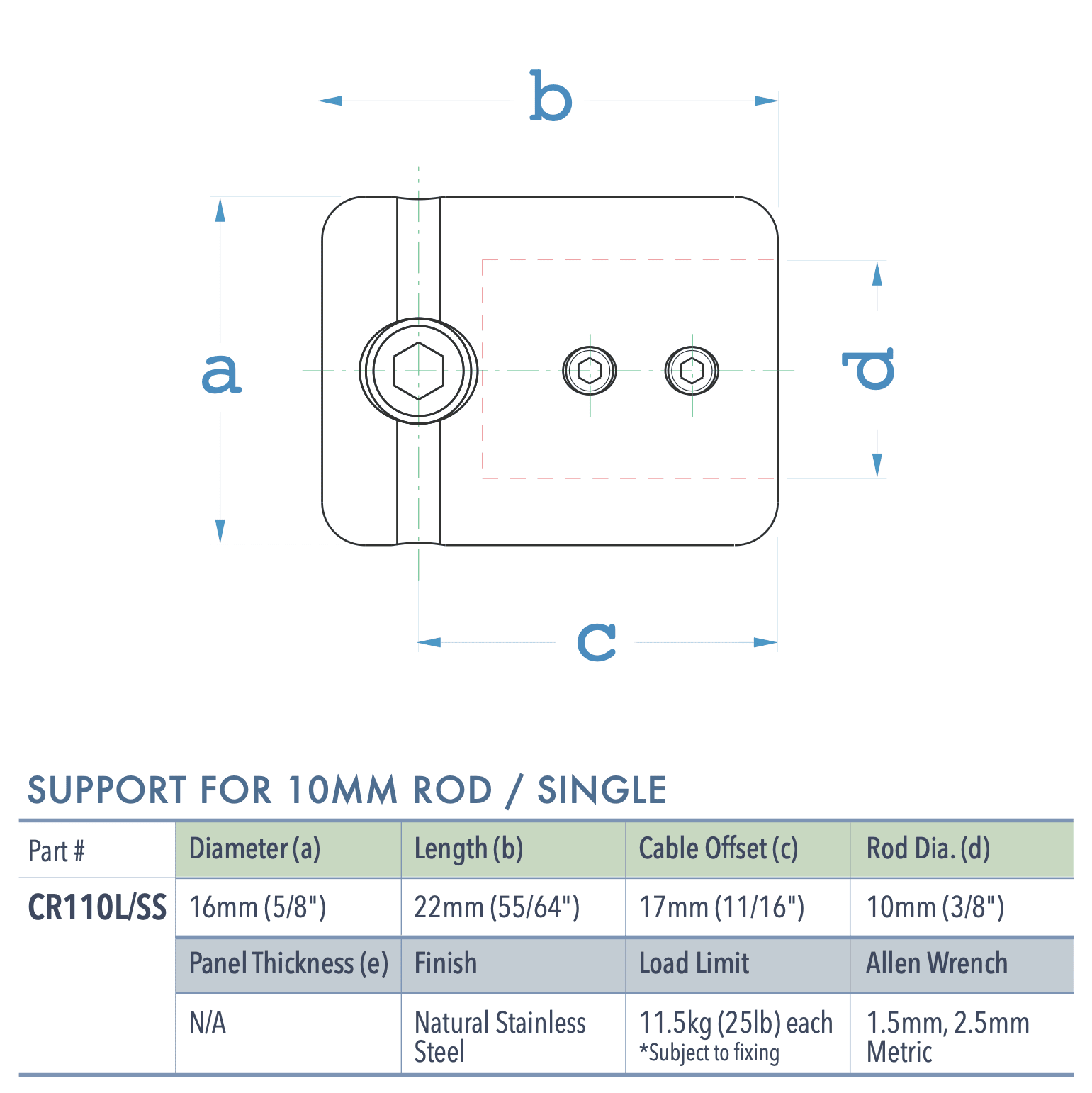

Specifications for CR110L/SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all cable display fittings and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors and Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel cable system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.

Quality/Warranty:

Cable fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
