CEILING-TO-FLOOR ROD FIXING KIT (*Use with 10mm Stainless Rod System)
$28.90
Includes Top/Ceiling Fixing with standard base support for right-hand M6 threaded rods and Bottom/Floor Fixing with Spring Tensioner. Use with 10mm (3/8″) Diameter Rod Suspensions in Stainless Steel Finish for ceiling suspensions or wall projecting installations (*not included). Optional base supports in 25mm, 38mm or 50mm diameters are available.
Availability: In stock
Product Description

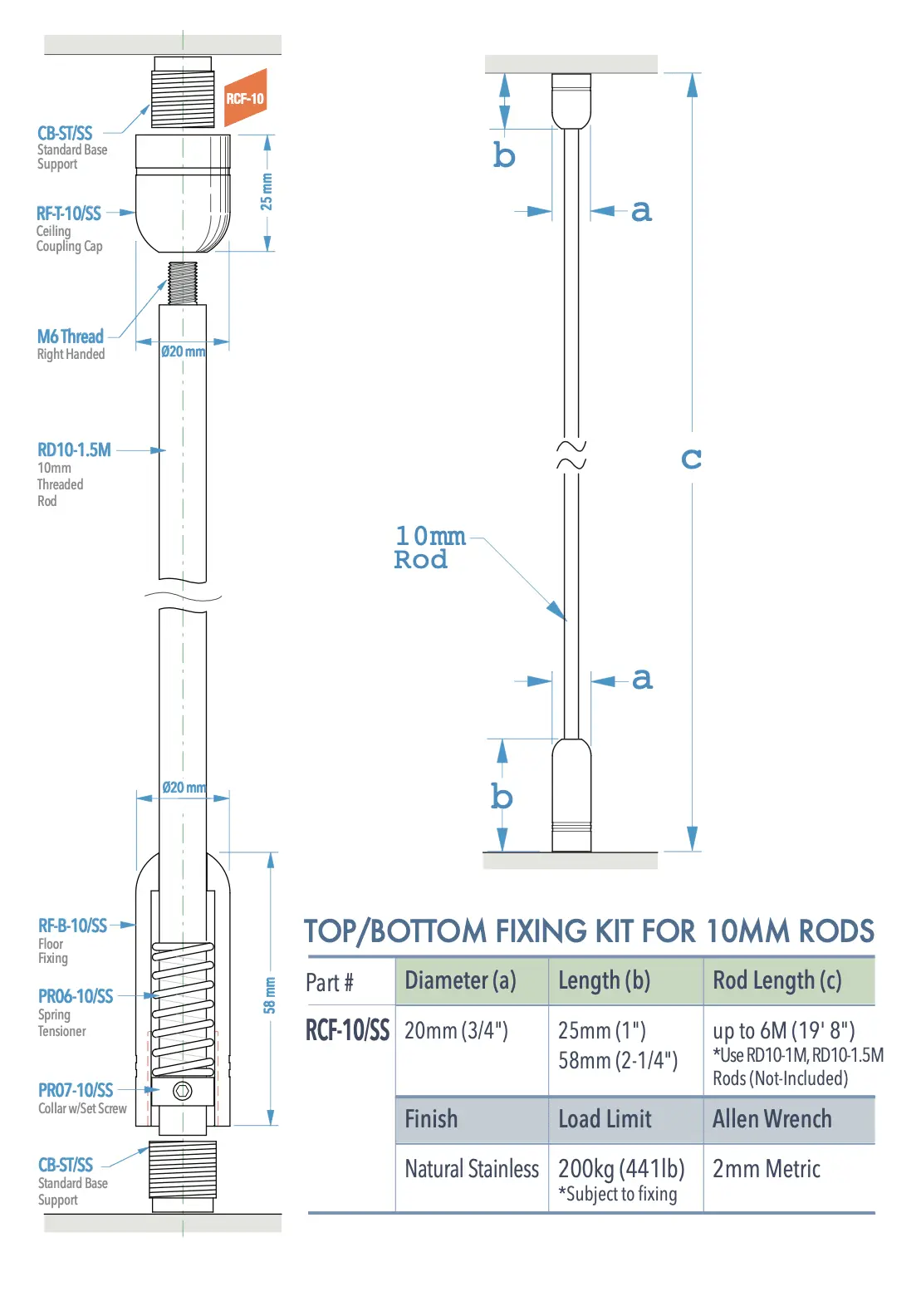

Ceiling-to-Floor Fixing Kit for 10mm (3/8″) Dia. Rods (#304 Stainless Steel)
The RCF-10/SS ceiling-to-floor rod fixing kit is designed for typical ceiling-to-floor or tailored suspended applications, such as installations inside window frames, glass cabinets, and rails or tracks. It is compatible with our standard right-hand M6 threaded 10mm diameter stainless steel rods in lengths of 1.5m (4′ 11-1/16″), 1.0m (3′ 3-3/8”), and 0.5m (1′ 7-11/16”). The fixings are supplied with standard base supports — optional base supports in 25mm, 38mm or 50mm diameter are also available.
The RCF-10/SS ceiling-to-floor rod fixings are made of robust solid stainless steel alloy. When properly secured to the ceiling, it can provide exceptional weight support and stability. The entire assembly with connected rods can support up to 200 kg (441 lbs) per fixing point (for ceiling applications, subject to fixing to studs or solid structure). The 10mm (3/8″) diameter rods can be used with various standard or specialty supports for holding graphic panels, acrylic or glass shelves, decorative partition panels, display showcases, aluminum or wood frames, hanging clothes rails, graphic holders, horizontal rods for fabrics, wine bottles, and various other presentations.
The RCF-10/SS ceiling-to-floor rod fixing kit can also be used with aluminum rails/tracks to enhance display flexibility and simplify installation. By using toggles affixed to the rod anchor, users can adjust the rods and move them sideways. Tracks are available in lengths of 4, 6, or 8 feet, with custom sizes or continuous runs available upon request. For installation, rail or track systems must be securely mounted to a solid structure or blocking, which includes attaching tracks to ceiling struts, structures above the ceiling line, or wall studs.
Attributes
| Top Fixing | |
|---|---|
| Bottom Fixing Tensioner | |
| Load Limits | |
| Compatibility | Use with any 10mm threaded rods for top/ceiling to floor fixings for a variety of applications |
| Weight | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings, internal components, and screws are made from #SS303 stainless steel alloy. Grub screws used with support fittings have a plastic tip made of Nylon 6-6. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.
Colors/Finishes:
Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are also available upon request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor and outdoor use. Our stainless steel rod system and fittings perform well in both closed and open environments as long as there are not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 rods that have higher corrosion resistance. Follow the instructions and weight-bearing limitations indicated on the technical datasheets.
Quality/Warranty:
Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install RAS-10 Top/Ceiling & Bottom Fixing Kit for Rods ❯ DOWNLOAD THE PDF HERE.
