SUPPORT DOUBLE FOR 6mm ROD. (Use with 10mm Rods)

$10.90

Use with 10mm (3/8″) Rod Suspension System to support hook-on acrylic holders, fabrics, banners or signs on horizontal rods.

Frequently Bought Together with:

SUPPORT SINGLE FOR 6mm ROD. (Use with 10mm Rods)

Use with 10mm (3/8″) Rod Suspension System to support hook-on acrylic holders, fabrics, banners or signs on horizontal rods.

0.5M (1' 7-11/16") LONG 6mm (1/4") Dia. Non-Threaded Rod

Non-Threaded Rod – Cut to any length

1.0M (3' 3-3/8") LONG 6mm (1/4") Dia. Non-Threaded Rod

Non-Threaded Rod – Cut to any length

Availability: In stock

Product Description

6-10mm Rod-to-Rod Support Double-Sided — Support for Horizontal Rod / Non-Removable

The RS06-10 rod-to-rod support features a 18mm (45/64″) diameter round profile fitting, designed for holding a 6mm (1/4″) rod horizontally between two 10mm (3/8″) vertical rods. This high-quality double-sided rod support is made of solid brass and is compatible with our 10mm rod display system / rod hanging hardware kits.

The horizontal rods suspended on the 10mm rod display system are suitable for a wide range of applications. They are versatile and can be used for displaying art, craft, fabrics, flags, banners, or hanging photos and information. Attaching the rods is easily accomplished by inserting them into the support fitting and securing them with the set screw. The entire assembly is then attached to two vertically suspended rods and securely locked into the desired position with set screws and the supplied hex key. Use the double-sided rod supports to link together adjoining horizontal rods that share a single vertical rod.

Key Features:
• Double-sided rod supports are recommended for use with non-threaded rods in lengths of 0.5m (1′ 7-11/16”) and 1.0m (3′ 3-3/8”).
• Use the 6mm horizontal rods with lightweight items only (to display heavier merchandise, use 10mm rods or hanging rails)
• Ideal for hanging fabrics, banners, acrylic photo holders, acrylic info/poster holders, etc.
• Made of solid brass alloy with a satin chrome finish
• Compatible with 10mm (3/8″) diameter rod suspension system

Explore All Mounting Options

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

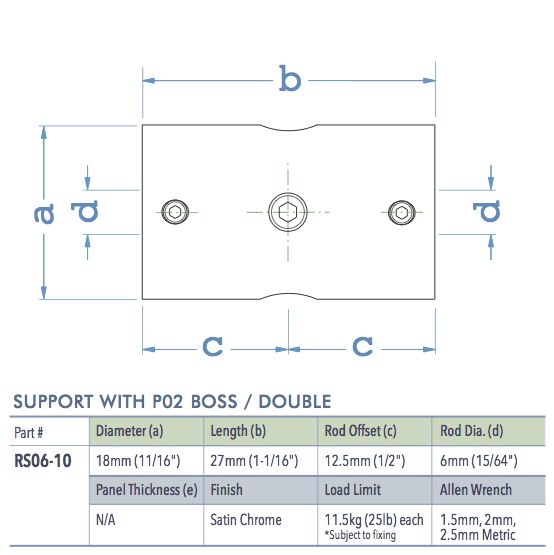

Specifications for RS06-10

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors/Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
