0.5M (1′ 7-11/16″) LONG 6mm (1/4″) Dia. Threaded Rod w/Dome End
Original price was: $10.40.$8.84Current price is: $8.84.
Left Handed M4 Threaded Rod at One End – Other End Dome Shaped.
Availability: In stock (can be backordered)
Product Description

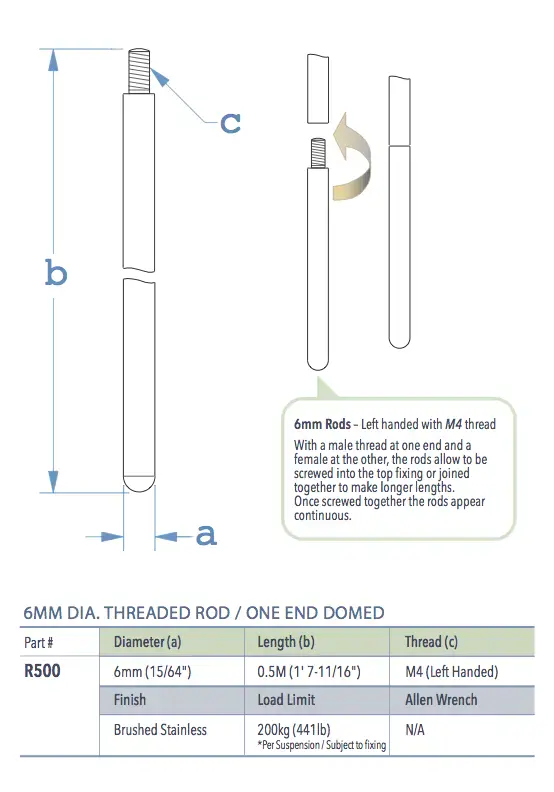

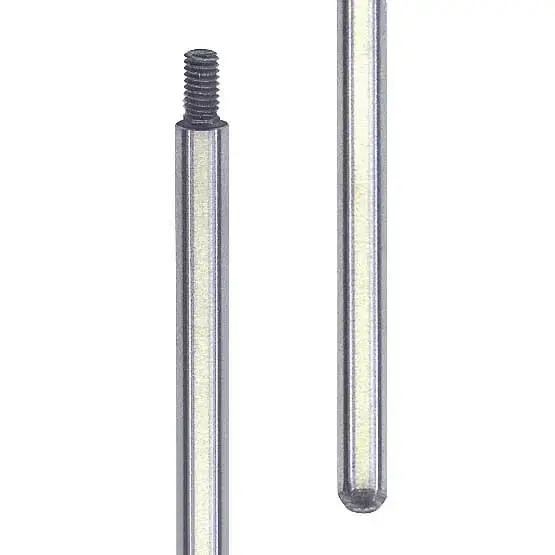

0.5M (1′ 7-11/16″) Long 6mm (1/4″) Dia. Threaded Rod with Dome End
The R500 stainless steel rod features left-handed M4 threads at one end and a dome-shaped finish at the other.

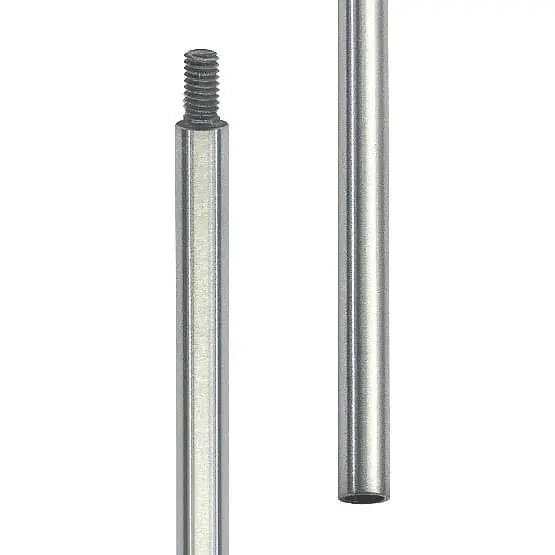

The 6mm rod system comprises stainless steel rods with left-hand M4 threads and non-threaded options. The threaded rods have a male thread at one end and a female thread at the other, allowing them to be screwed into the top fixing or joined together to create longer lengths. When connected, the rods appear as a single continuous unit. To achieve the required overall length, the rod can be cut at the bottom using a hacksaw or grinding wheel.

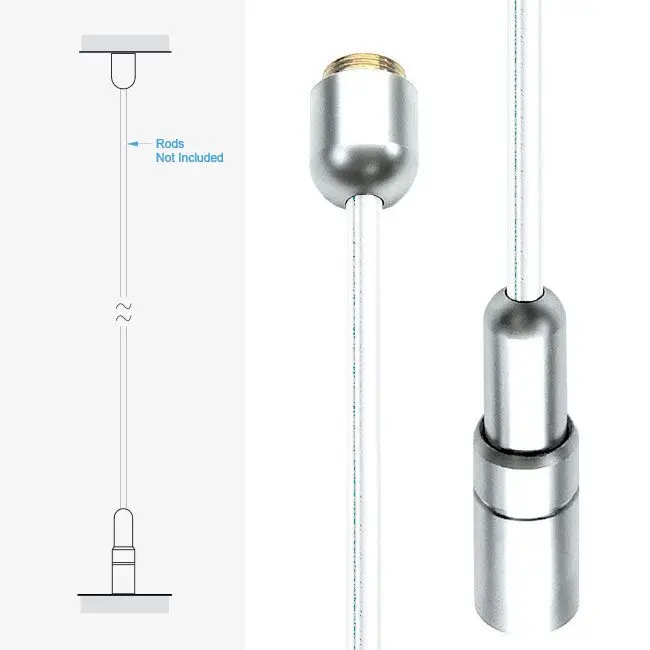

The 6mm diameter rods are available in standard lengths of 1.5m (4′ 11-1/16″) threaded on both ends, 1m (3′ 3-1/32″) non-threaded, and 0.5m (1′ 7-11/16″) threaded on one end and finished on the other end. Use a combination of multiple threaded rods to achieve any desired length. When properly installed, the rods with ceiling fixings can support up to 200 kg (441 lbs) per fixing point. Choose from a range of standard suspension kits and individual components for the 6mm diameter rod system by following the link below.
Attributes
| Rod Diameter | |
|---|---|
| Rod Length | |
| Compatibility | |
| Weight | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors/Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install R500 0.5M (1′ 7-11/16″) Long 6mm (1/4″) Dia. Threaded Rod ❯ DOWNLOAD THE PDF HERE.
You may also consider these products...
-

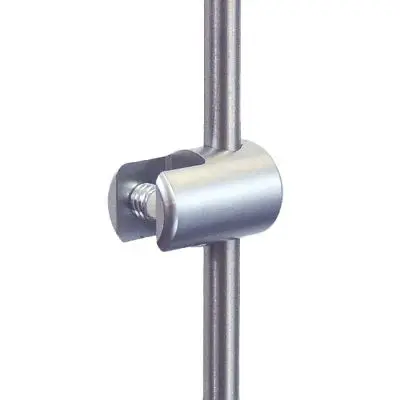

VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4″) thick. (Use with 6mm Rods)
Original price was: $11.20.$9.52Current price is: $9.52. Add to cart -

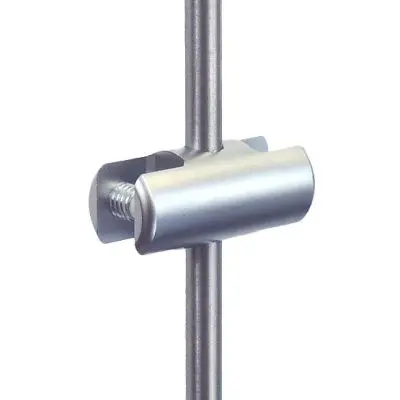

VERTICAL SUPPORT DOUBLE – For panels up to 7mm (1/4″) thick. (Use with 6mm Rods)
