1.5mm Cable Suspension Kit with Ceiling Fixing and Top-Support for 3/8″ Thick Panel – 2.0M (6′ 5-3/4″) Long (*Stainless Steel)

Original price was: $21.20.Current price is: $18.02.

Cable Suspension Kit includes: Cable, Top Fixing and Top Panel Clamp in Stainless Steel Finish for 7mm (1/4″) Thick Panels. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters. ( *You’ll need two of these kits to hang a sign)

Frequently Bought Together with:

1.5mm Cable Suspension Kit with Ceiling Fixing – 2.0M (6' 5-3/4") Long (*Stainless Steel)

Cable Suspension Kit includes: Cable and Top Fixing w/Standard Base Support in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

1.5mm Cable Suspension Kit with Ceiling-to-Floor Fixings – 4.0M (13' 1-1/2") Long (*Stainless Steel)

Cable Suspension Kit includes: Top and Bottom Fixings with Spring Tensioner and Standard Base Supports in Stainless Steel Finish. Use with Optional Base Supports in 25mm, 38mm or 50mm diameters.

Availability: In stock

Product Description

1.5mm (1/16″) Dia. Cable Suspension Kit with Ceiling Fixing and Top-Clamp Support for 3/8″ Thick Panel – 2.0M (6′ 5-3/4″) Long (#304 Stainless Steel)

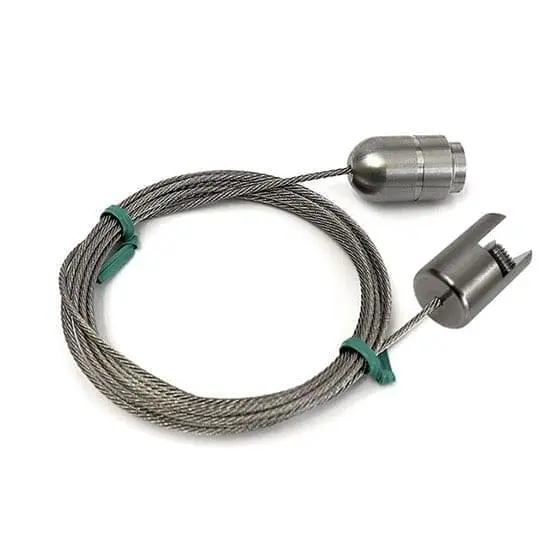

The KC100-TP/SS stainless steel cable suspension/wire hanging kit includes a factory end-crimped cable, a ceiling fixing, and a clamp support for holding panels from top. The kit is supplied with standard stainless steel base supports — optional base supports in 25mm, 38mm or 50mm diameter are also available. It is primarily designed for typical ceiling-overhead suspended signage applications. The kit comes with cables available in 2 meters (6′ 5-3/4″), which can be conveniently adjusted or trimmed on-site during installation.

The KC100-TP/SS cable suspension/wire hanging kit features a minimalist ergonomic design and is engineered for flexibility and durability. Crafted from high-quality stainless steel, the cables are designed to withstand fraying, kinking, and snapping, ensuring long-lasting performance. Each cable’s construction features 19 steel strands encasing a single steel wire core, resulting in a strong yet flexible assembly with superior abrasion resistance. This design allows for an impressive weight capacity of up to 120 kg (264 lbs) for vertical installations. However, for ceiling-mounted applications, we recommend adhering to a safety working load limit of 40 kg (88 lbs) per cable to ensure optimal security and longevity.

Additionally, the KC100-TP/SS cable suspension/wire hanging kit is compatible with a range of accessories, such as sign blanks and info/poster acrylic holders.

Explore All Cable Fixing Kits

Attributes

Cable Length

Top Fixing

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

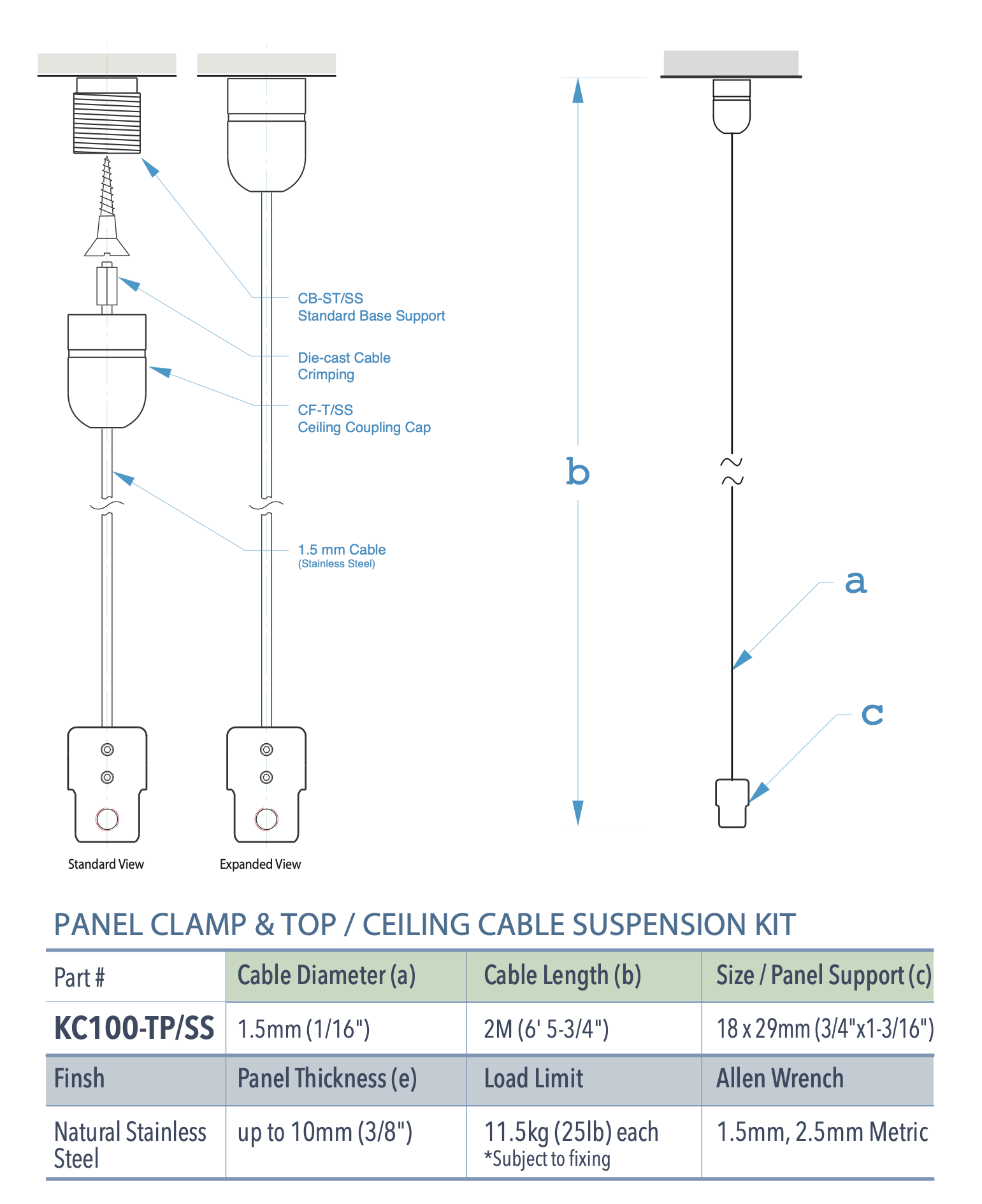

Specifications for KC100-TP-SS

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

Cables used in assemblies are made from stainless steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings and internal components are made from #SS303 stainless steel alloy. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools. The SS303 is a non-magnetic austenitic alloy specially designed for improved machinability while maintaining good mechanical and corrosion resistant properties. It is fairly resistant to general atmospheric corrosion, cleaning solutions, sterilizing solutions, dyestuffs, most organic chemicals, but has very limited resistance to acids.

Colors and Finishes:

Natural Stainless Steel Finish—machined polished for a satin/semi-gloss texture. High-gloss polished stainless steel or other finishes are available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor and outdoor use. Our stainless steel cable system performs well in both closed and open environments as long as it is not exposed to direct corrosive elements such as marine or submerged saltwater uses. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install the 1.5mm (1/16″) DIA. CABLE w/Ceiling Fixing ❯ DOWNLOAD THE PDF HERE.
