1/4″ CLEAR ACRYLIC PANEL – WITH HOLES FOR M8 STUDS
$40.50 – $150.30
1/4″ Clear acrylic graphic panel with polished edges – with holes for M8 Studs. *Always use with a matching front piece of 1/8″ non-glare acrylic.
*Acrylic Frames & Blanks are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description

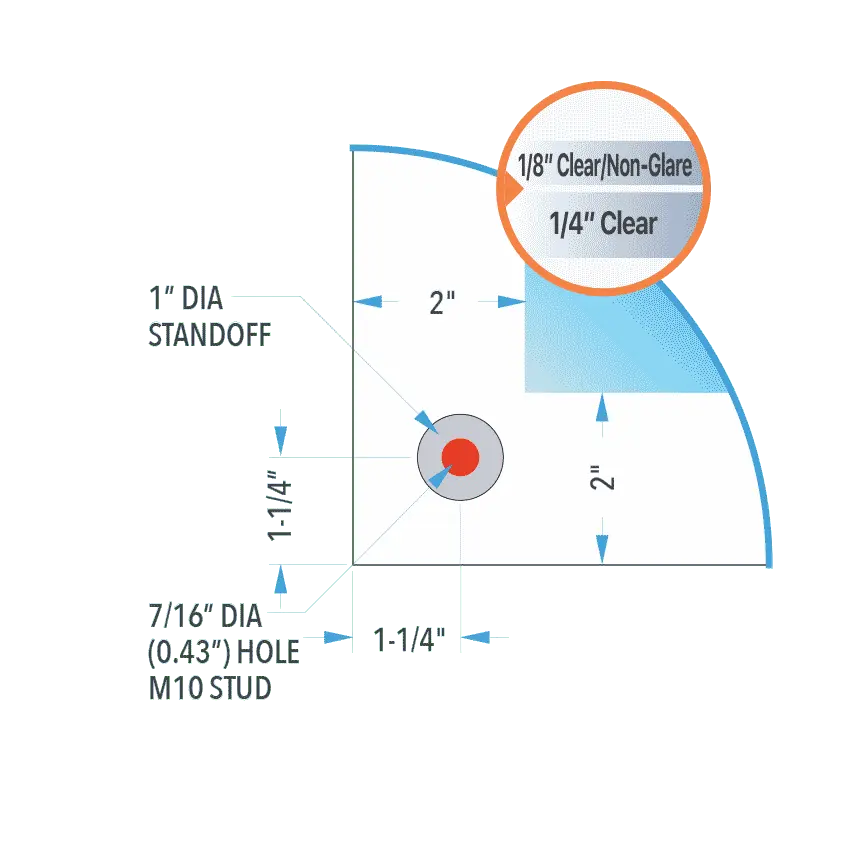

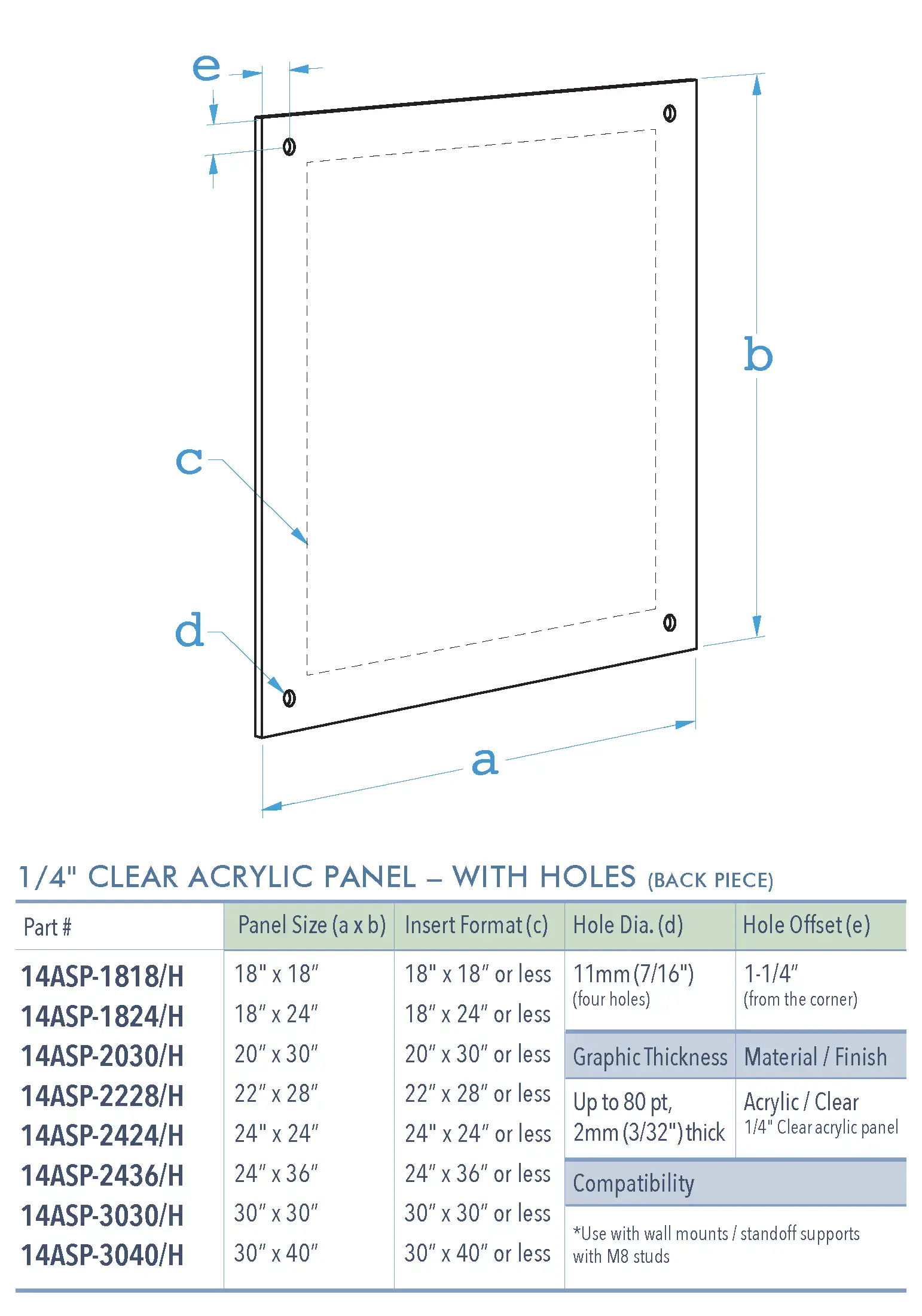

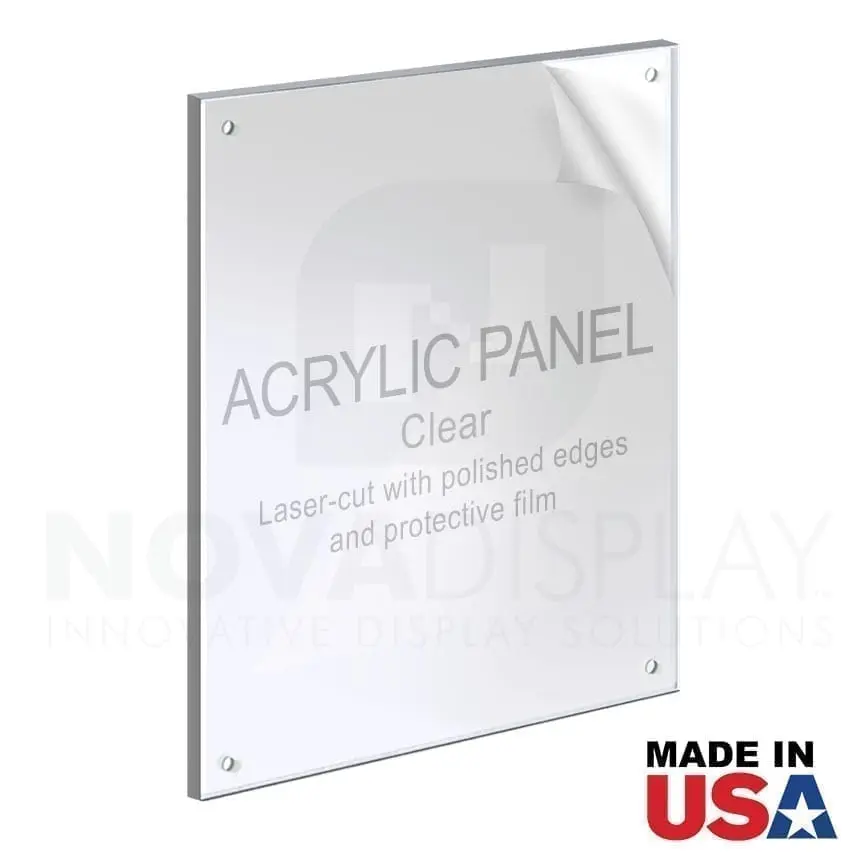

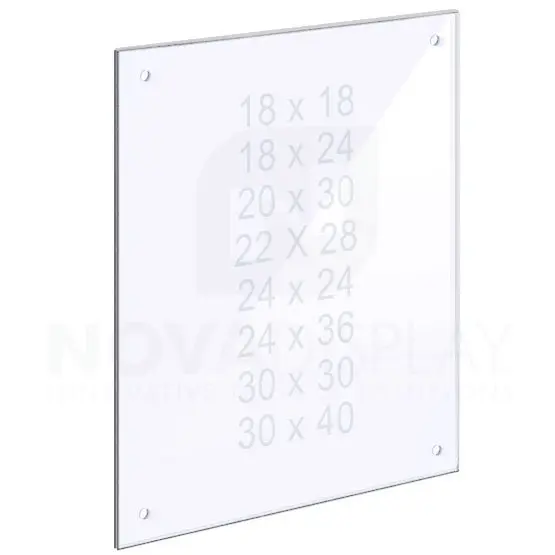

1/4″ Clear Acrylic Panel with Holes for M8 Studs – Polished Edges. Panel Hole Size 11mm (7/16”)
Panel Sizes:
- Panel Size: 18” x 18”
- Panel Size: 18” x 24”
- Panel Size: 20” x 30”
- Panel Size: 22″ x 28″
- Panel Size: 24″ x 24″
- Panel size: 24″ x 36″
- Panel Size: 30″ x 30″
- Panel Size: 30″ x 40″

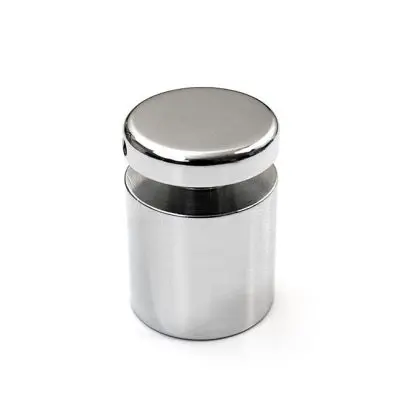

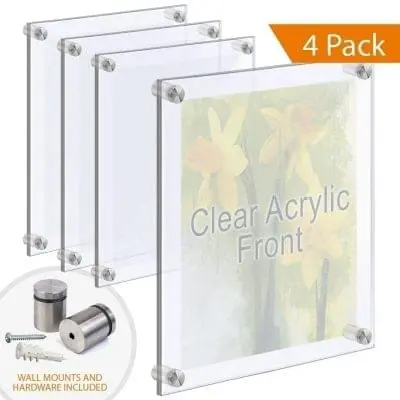

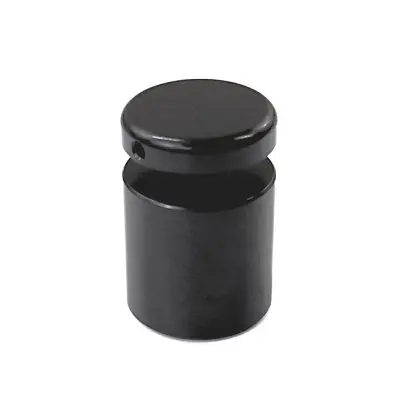

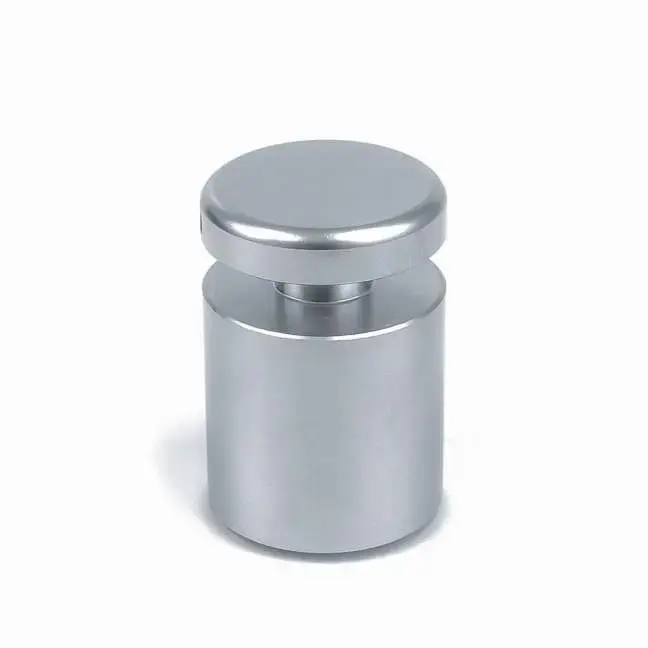

Frameless acrylic panels are designed for displaying posters, prints, photos, etc. Use with wall mounts / standoff supports. Use as back support for poster inserts. *Always use with a matching front piece of 1/8″ non-glare acrylic. Sold separately.
Attributes
| Panel Size | 18" x 18", 18" x 24", 20" x 30", 22" x 28", 24" x 24", 24" x 36", 30" x 30", 30" x 40" |
|---|---|
| Width | 18", 18", or 24", 20", or 30", 22", or 28", 24", 24", or 36", 30", 30", or 40" |
| Load Option | |
| Compatibility | |
| Weight | |
| Mounting Options | |
| Graphic Thickness | |
| Material Thickness | |
| Finish | |
| Availability | |
| Insert Format | 18" x 18" or less, 18" x 24" or less, 20" x 30" or less, 22" x 28" or less, 24" x 24" or less, 24" x 36" or less, 30" x 30" or less, 30" x 40" or less |
| Panel Hole Size |
Cleaning & Handling of Acrylic Display Products
The number one problem with acrylic is the use of incorrect cleaners. Please never use cleaners containing ammonia, glass cleaners and furniture polish such as Fantastik, Tilex, Windex, or Clorox, they will all harm your new piece of acrylic. Use mild soap and water to clean acrylic products or only products specifically recommended for cleaning acrylic such as Craftics, Novus, or other Rated Anti-Static Cleaner & Polish for Plastics. Use micro-fiber disposable low lint cloths that are specially designed for cleaning acrylic and other plastic. Never use a dry cloth or your hand to clean your acrylic. Using the wrong cleaner can cause damage to acrylic products that can occur within minutes or be delayed weeks or even months. Repeated use of the wrong cleaners will weaken the structural joints and cause cracking to occur. Be careful during install, dropping your acrylic can cause cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
Composition and Materials:
All acrylic fixtures used with our cable/rod or rail display systems are made from high-quality acrylic from best known brands like Acrylite®, Plexiglass®, Lucite®, etc. Acrylic is a lightweight, rigid thermoplastic material that has many times the breaking resistance of standard window-pane glass and it is available in various thicknesses. It is suitable for a variety of commercial applications and can be easily sawed, machined, laser cut, thermoformed and cemented.
Colors / Finishes:
Acrylic sheets are readily available in a variety of color and finishes – clear acrylic is used primarily for its superior optical clarity and rigidity; non-glare (non-reflective) acrylic is used as frame or display front cover and helps to reduce the glare from spot lights or sunny windows; UV filtering acrylic is used for protection from the irreversible effects of UV damage from both natural and artificial light; frosted acrylic is used in special background and decorative screen designs; and color acrylic is used in custom sign and display designs.
Product Limitations:
Acrylic sheet is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources. Despite its high durability some simple steps should be employed when handling and cleaning acrylic to avoid staining, cracking and damage. Never use cleaners containing ammonia, glass cleaners or furniture polish, they will all harm your acrylic fixtures. Use only mild soap and water or products specifically recommended for cleaning acrylic such as Craftics, Novus, or other Rated Anti-Static Cleaner & Polish for Plastics. Use micro-fiber disposable low lint cloths that is specially designed for cleaning acrylic and other plastic. Never use a dry cloth or your hand to clean your acrylic.
