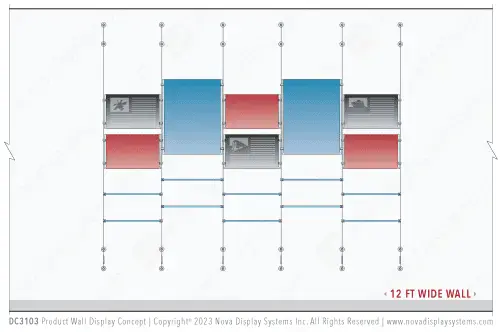

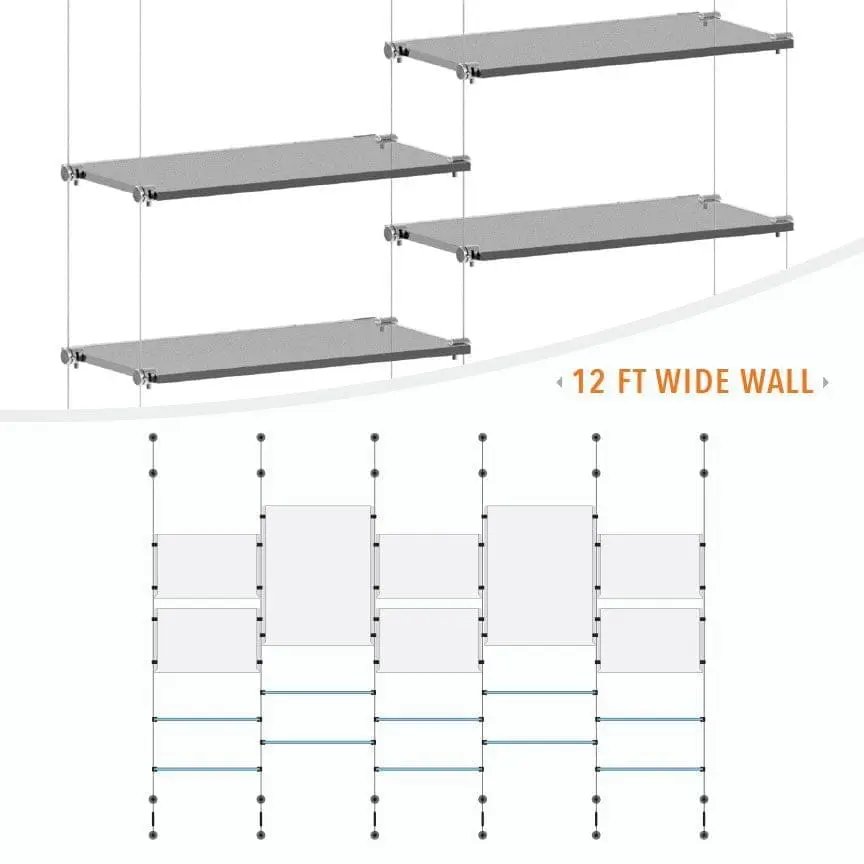

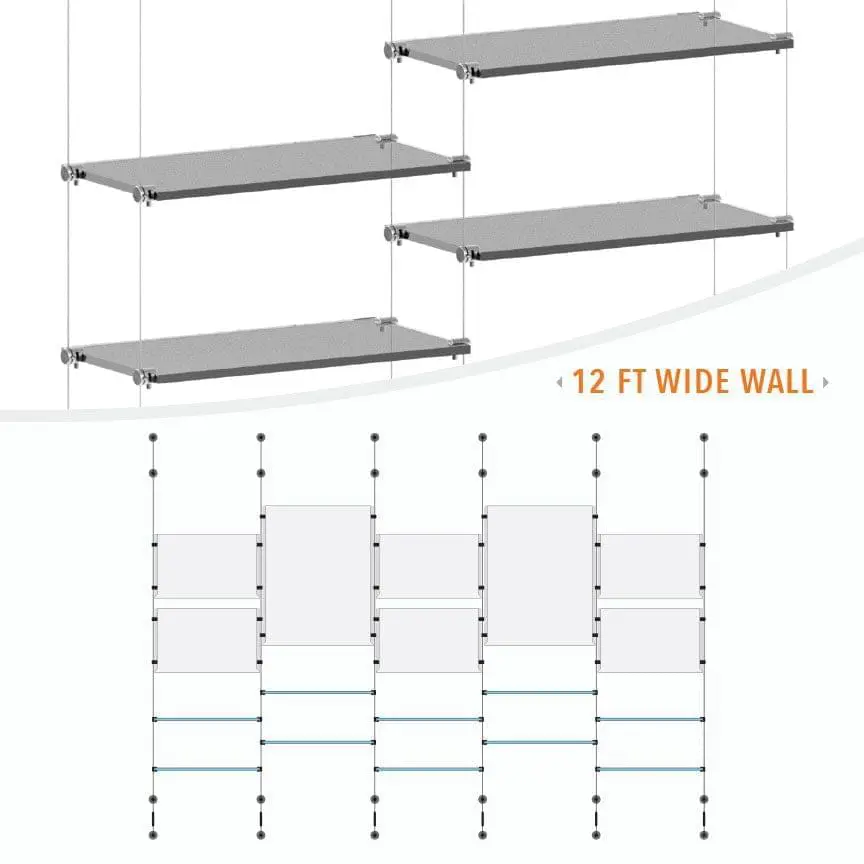

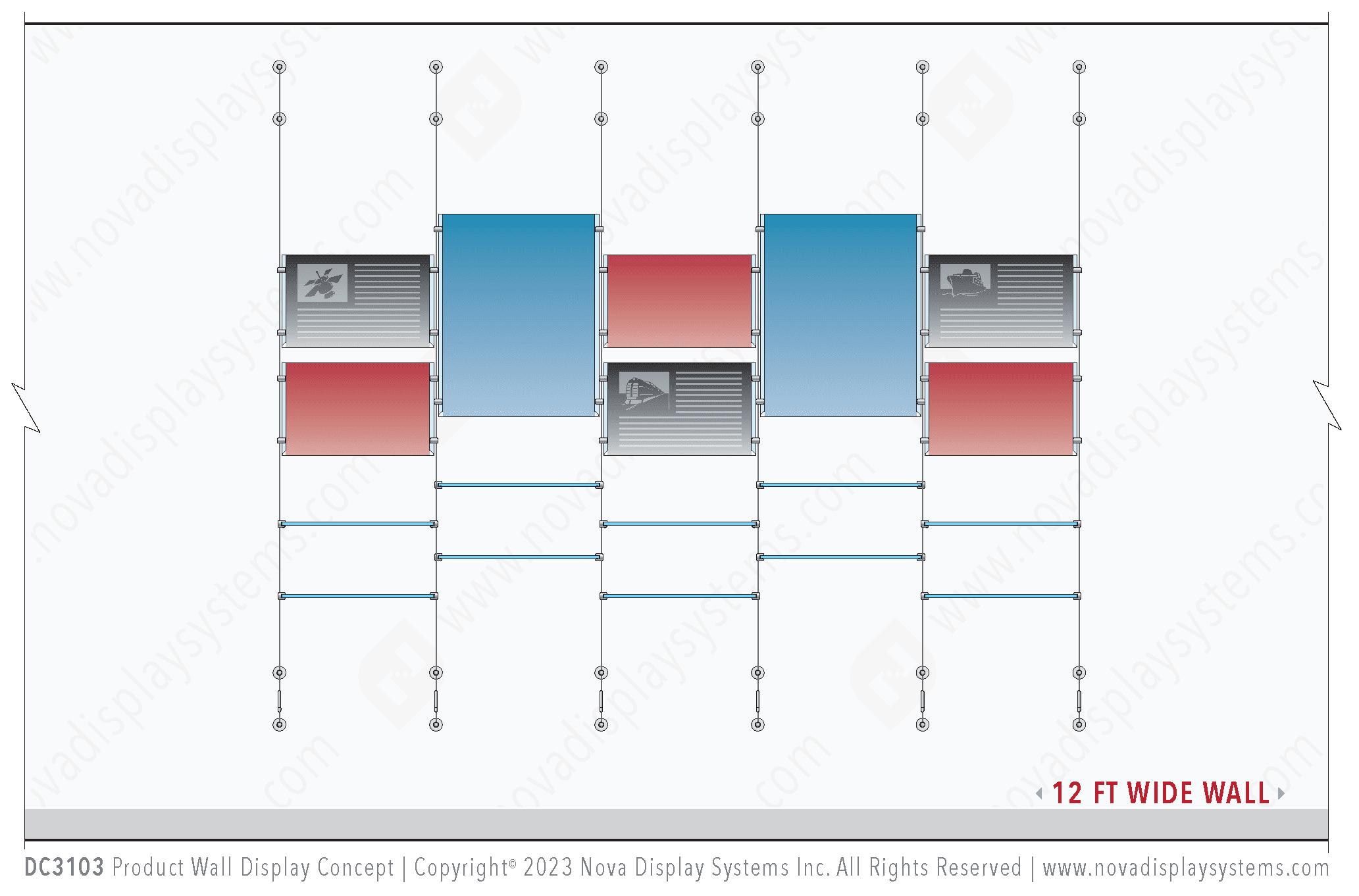

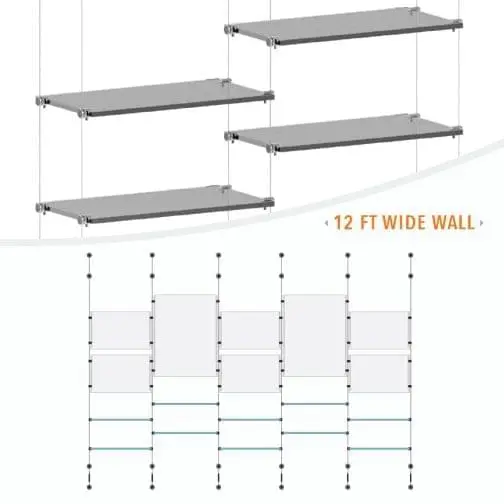

DC3103 Product Wall Display Concept (12FT WALL)


Product Wall Display – incorporates acrylic easy access holders for 18” x 24“ / 17″ x 11″ info/poster inserts and 19“ x 8” / 18“ x 8” deep acrylic shelves suspended with wall-to-wall cable display system. The 1.5mm cable suspension system comes in a double-cable kit assembly. The cables are elegant and obscure, yet incredibly strong. The floating on cable acrylic shelves are fully adjustable. Use to display collectibles, promotional products, or other lightweight merchandise. Display comes with cable suspension components made of brass with satin chrome finish, clear acrylic shelves with flat polished edges, and clear or non-glare (non-reflective) acrylic frames. *Select acrylic holder finish below.

Overall Display Size: 96″W x 78″H
Wall Size Requirements: 12 ft (144in) Wide

Follow the link below for additional details on DC3103 Product Wall Display

  • Concept Layout
  • Wall Template
  • Install Guide

Detailed Info

*Acrylic Holders and Shelves are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.

Product Description

DC3103 Product Wall Display Concept / 12ft Wall

18AFF-1824P (*NG) – Clear or Non-Glare Easy Access Acrylic Holder (2 ea) / *Select finish type above.
Insert Size: 18″W x 24″H
18AFF-1117L (*NG) – Clear or Non-Glare Easy Access Acrylic Holder (6 ea) / *Select finish type above.
Insert Size: 17″W x 11″H
38ASH-0819 – 3/8″ thick Clear Acrylic Shelf with Polished Edges (4 ea)
Shelf Size: 19″W x 8″Deep
38ASH-0818 – 3/8″ thick Clear Acrylic Shelf with Polished Edges (6 ea)
Shelf Size: 18″W x 8″Deep

C2WW-15 – Cable Suspension Kit in wall-to-wall double-cable assembly configuration (6 ea)
CG01 – Panel Support (32 ea)
CS103 – Shelf Support (40 ea)

AVAILABILITY: 10-15 Bus. Days (Fabrication and Delivery Time)

FINISHES: Mounting Hardware is supplied in a satin chrome finish. Acrylic holders are made of 1/8″ thick clear or non-glare acrylic. Acrylic shelves are made of 3/8″ thick clear acrylic with high-quality edge finish.

CUSTOMIZATIONS: For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form

Additional Information

Insert Size


Shelf Size


Load Option

Graphic Thickness

Material Thickness

, ,

Mounting Options


, ,


Cleaning & Handling of Acrylic Display Products

When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.

Product Limitations

Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.

Acrylic/Plastic Cleaning KitAcrylic/Plastic Cleaning Kit

Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.

Add-on Services
  • Graphic Inserts Printing
    Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files.
  • Raised Letters / Logo Signage
    Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“.
  • Graphic Pre-placement
    Prints will be placed inside the acrylic sandwich frames before Packing & Shipping – mounted in between the two pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape. If you require this option please request an estimate using our “Quote Request Form“.
