DC2504 Large Poster Wall Display Concept (18FT WALL)
$3,502.90

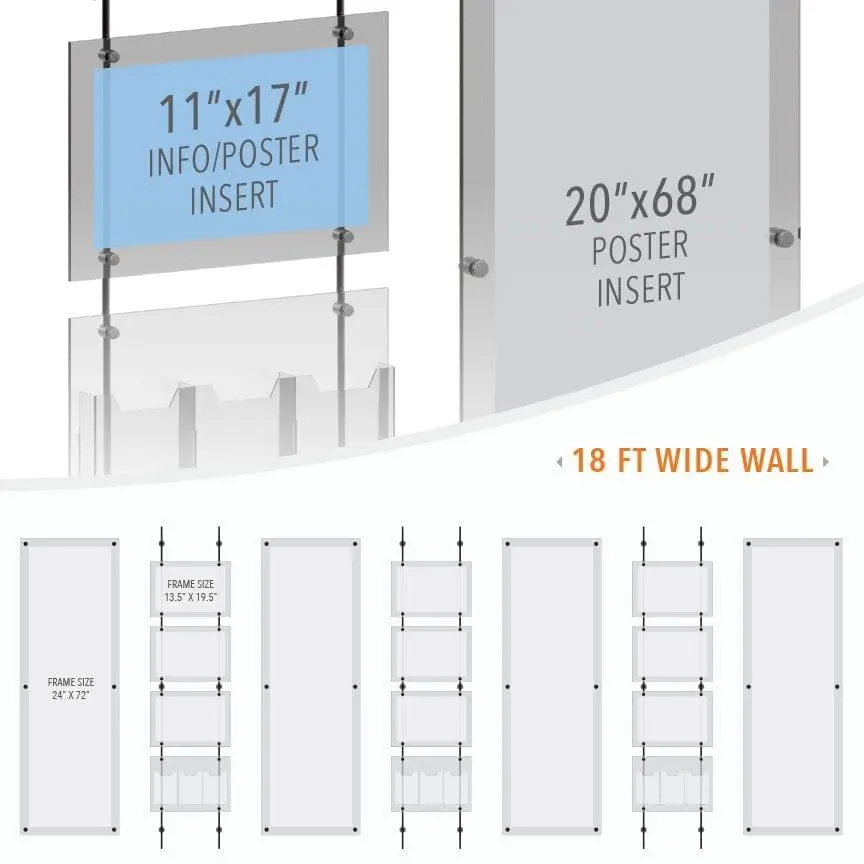

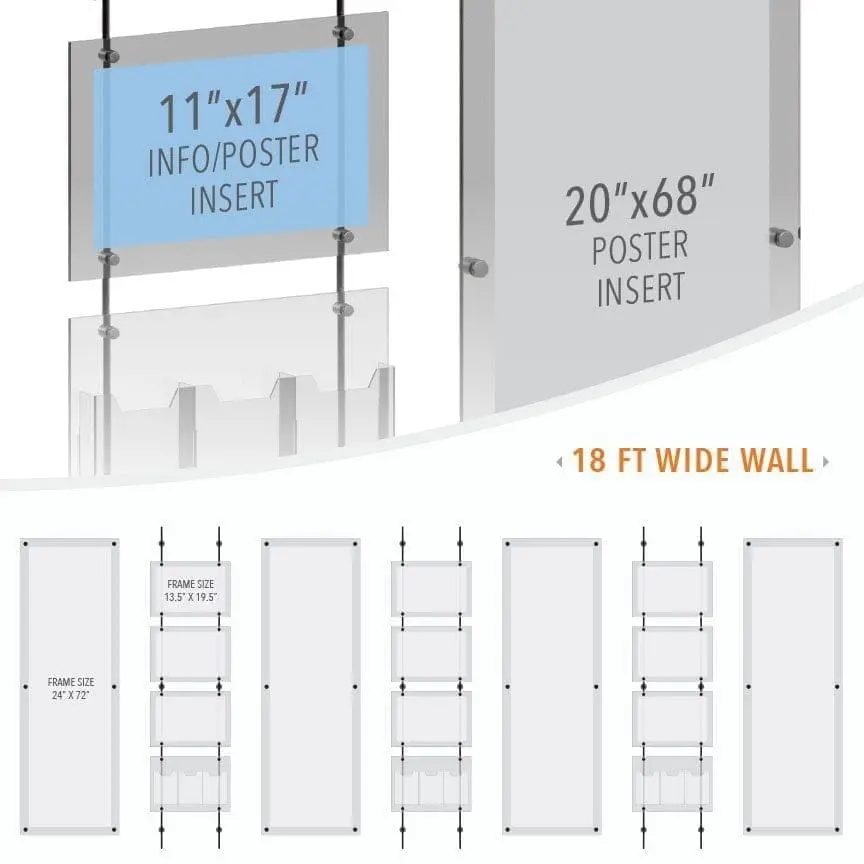

Large Poster Wall Display – incorporates acrylic sandwich frames for 11” x 17“ info/poster inserts, literature holders for bi-fold size brochures, and large format frameless acrylic poster frames mounted with standoffs and wall-to-wall 10mm rod display system. It is an easy-to-use display system which allows you to create stylish interior displays for all types of information that can be changed in just a few minutes. Display comes with rod suspension hardware and standoff components made of brass with satin chrome finish, clear acrylic literature holders, and non-glare (non-reflective) acrylic frame panels.
Overall Display Size: 200″W x 79″H
Wall Size Requirements: 18 ft (216 in) Wide
PROJECT DETAILS & DOWNLOADS:
Follow the link below for additional details on DC2504 Large Poster Wall Display
- Concept Layout
- Wall Template
- Install Guide
*Acrylic Holders and Frames are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.
Product Description
DC2504 Large Poster Wall Display Concept / 18ft Wall
PROJECT INCLUDES:
14ALD-3-5585P/S14 – Clear Acrylic Literature Holder (3 ea)
Panel Size: 19.5″W x 13.5″H; Insert Size: 5.5″W x 8.5″H Bi-Fold Brochures
18ASP-W-1117/S14 – Clear Acrylic Back Panel (9 ea)
18ASP-W-1117NG/S14 – Non-Glare Acrylic Front Panel (9 ea)
Frame Size: 19.5″W x 13.5″H; Insert Size: 17″W x 11″H (or 2 x 8.5″W x 11″H)
14ASP-2472/H/D6 – Clear Acrylic Back Panel (4 ea)
18ASP-2472NG/H/D6 – Non-Glare Acrylic Front Panel (4 ea)
Frame Size: 24″W x 72″H; Insert Size: 20″W x 68″H
WM11-10 – Rod Wall Fixing (18 ea)
R1000-10 – 1.0M (3′ 3-3/8″) 10mm Dia. Rod (12 ea)
*** RODS TO BE JOINED ON SITE TO 78″ LENGTH / NO CUTTING
P01 – Decorative Base Plate (18 ea)
REC-10 – Decorative End Cap (12 ea)
RS13-10 – Rod Support w/Stud-Cap (48 ea)
WM15 – 1″ Dia. Standoff Support (24 ea)
P75-TWL – Twist-n-Lock Drywall Anchor Set (42 ea)
AVAILABILITY: 5-7 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting Hardware is supplied in a satin chrome finish. Acrylic literature holders and frames are made of high-quality 1/4″ thick clear and 1/8″ thick clear/non-glare acrylic.
CUSTOMIZATIONS: For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form
Additional Information
| Insert Size | |
|---|---|
| Panel Size | |
| Load Option | |
| Graphic Thickness | |
| Material Thickness | 1/4" Clear Acrylic, 1/8" Clear Acrylic, 1/8" Non-Glare Acrylic |
| Mounting Options | Wall-to-Wall Suspensions, Wall-Mounted-with-Standoff-Supports |
| Finish | Satin Chrome, Clear Acrylic, Non-Glare Acrylic / Anti-Reflective (P99) |
| Availability |
Cleaning & Handling of Acrylic Display Products
The number one problem with acrylic is the use of incorrect cleaners. Please never use cleaners containing ammonia, glass cleaners and furniture polish such as Fantastik, Tilex, Windex, or Clorox, they will all harm your new piece of acrylic. Use mild soap and water to clean acrylic products or only products specifically recommended for cleaning acrylic such as Craftics, Novus, or other Rated Anti-Static Cleaner & Polish for Plastics. Use micro-fiber disposable low lint cloths that are specially designed for cleaning acrylic and other plastic. Never use a dry cloth or your hand to clean your acrylic. Using the wrong cleaner can cause damage to acrylic products that can occur within minutes or be delayed weeks or even months. Repeated use of the wrong cleaners will weaken the structural joints and cause cracking to occur. Be careful during install, dropping your acrylic can cause cracking.
Product Limitations
Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.
Acrylic/Plastic Cleaning Kit
Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.
Add-on Services
- Graphic Inserts Printing
Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files. - Raised Letters / Logo Signage
Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“. - Graphic Pre-placement
Prints will be placed inside the acrylic sandwich frames before Packing & Shipping – mounted in between the two pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape. If you require this option please request an estimate using our “Quote Request Form“.
