11/16″ x 2-3/16″ EDGE-GRIP PANEL SUPPORT – BRASS w/SATIN CHROME

Name: 11/16" x 2-3/16" EDGE-GRIP PANEL SUPPORT – BRASS w/SATIN CHROME
Brand: Nova Display Systems
SKU: WM09L
Price: 8.60 USD
Availability: InStock

$8.60

Made of Solid Brass with Satin Chrome Finish. Includes Edge-Grip Support, Standoff Base and Coupling Anchor.

Category: Edge-Grip Standoff Supports Tags: 5/8 dia edge grip, brass, edge grip, edge grip standoff, edge grips, edge-grip-standoff-support-wall-mounted-brass, panel support, panel supports, satin chrome, sign standoff, sign standoffs, standoff support, standoff supports, standoffs, wall mount, wall mounts, wm SKU:WM09L Availability: In stock

Description
Additional Information
Specifications for WM09L

Product Description

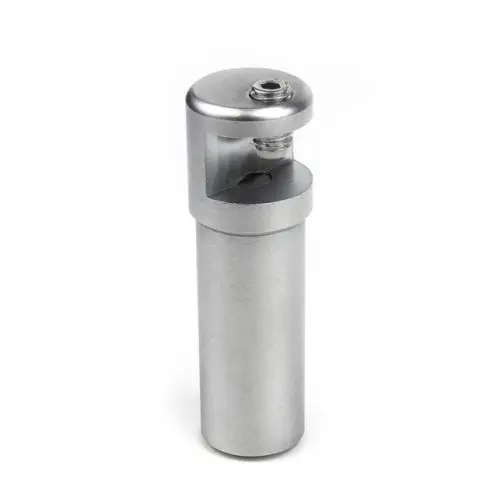

11/16″ Dia. x 2-3/16″ Edge-Grip Standoff Support for Signs/Panels (3-Part Multi-Position Support)

For signs/panels up to 7mm (1/4″) thick. Adjustable to any angle. Can be locked into position. Ideal for supporting signs, graphic panels and acrylic poster frames. Spacing from wall – 42mm (1-11/16″).

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Standoff Diameter	18mm (11/16") Dia.
Standoff Length	56mm (2-3/16")
Material Thickness	7mm (1/4") max.
Load Limits	8 lbs (3.5 kg) – Subject to fixing.
Accessory Compatibility	Ideal for supporting Wall Mounted Signs, Graphic Panels and Acrylic Poster Frames. Panels can be gripped from sides or top/bottom. Nor drilling required.
Weight	0.15lb
Screw Size	Require no. 8 screw for mounting
Mounting Options	Wall-Mount
Materials	Brass Alloy
Finish	Satin Chrome
Allen Wrench Size	1.5mm & 2.5mm Metric
Availability	Stock Item / Buildable (5-7 Days)

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For quality and durability, all sign/panel support fittings are machined from high-grade brass or aluminum alloy, or from solid stainless steel #SS201 or #SS304 as standard. Other stainless steel type #SS316 or #SS582 is also available for custom items. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors and Finishes:

Brass fittings – are available in stock in standard satin chrome finish. Custom finishes such as polished chrome, polished brass or brushed warm nickel plating are available upon request. Lead times will be longer and a minimum quantity may be required.

Aluminum fittings – are available in stock in standard clear or satin anodized finish.

Stainless steel fittings – are available in stock in standard satin brushed stainless finish. Polished stainless is also available upon request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

Brass fittings – are rated for indoor use only. They perform well in all closed environments as long as not exposed to direct weathering such as rain, snow, moisture, etc.

Aluminum fittings – are suggested for both interior and exterior use. Other custom finishes such as black or color anodized are available upon request. Lead times will be longer and a minimum quantity may be required.

Stainless steel fittings – stock items are rated for indoor use only. For marine or other high humidity environments, please request stainless steel type 316/582 fittings that have a higher corrosion resistance. Lead times will be longer and a minimum quantity may be required.

Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
