VERTICAL SUPPORT SINGLE – For panels up to 12.7mm (1/2″) thick. (Use with 6mm Rods)

$13.52

Ideal for supporting signs and graphic panels from sides

Frequently Bought Together with:

VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4") thick. (Use with 6mm Rods)

Ideal for supporting acrylic pockets, signs and graphic panels from sides

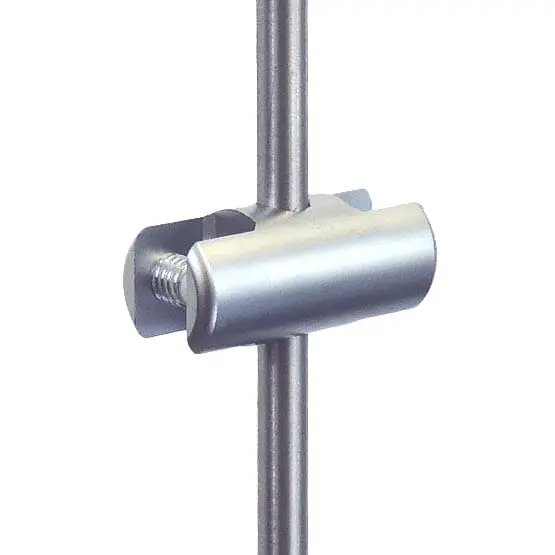

VERTICAL SUPPORT DOUBLE – For panels up to 7mm (1/4") thick. (Use with 6mm Rods)

Ideal for supporting acrylic pockets, signs and graphic panels from sides

Availability: In stock

Product Description

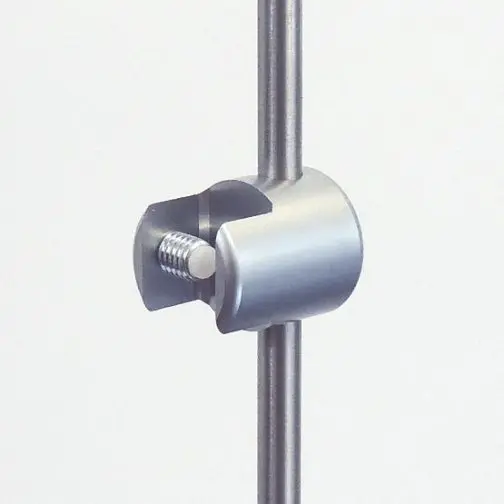

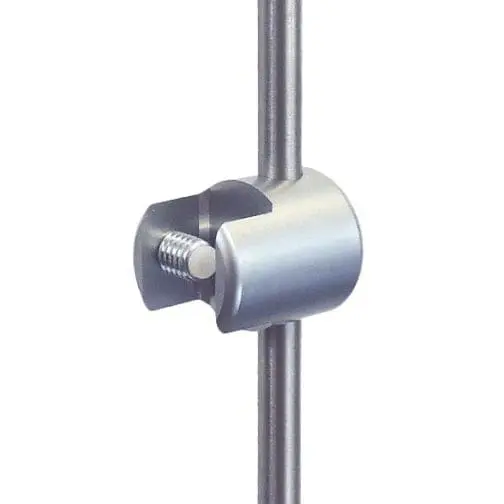

Vertical Support Single-Sided

For panels up to 12.7mm (1/2″) thick. Use with 6mm (1/4″) Dia. Rod Suspensions.

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

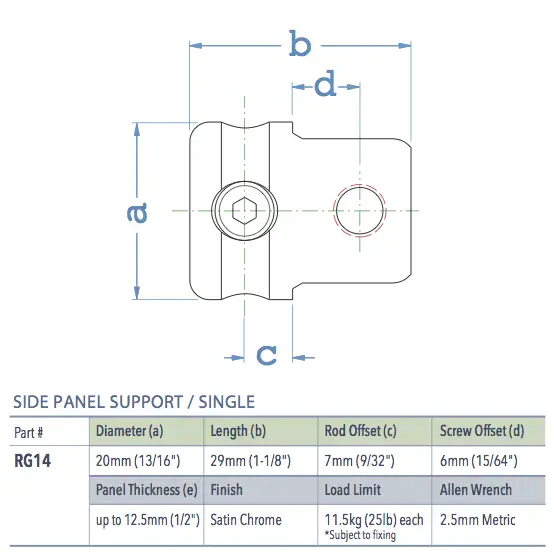

Specifications for RG14

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors/Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
