SHELF SUPPORT SINGLE – For shelves up to 12.7mm (1/2″) thick. (Use with 10mm Rods)

Original price was: $16.50.Current price is: $14.03.

Ideal for supporting acrylic and glass shelves up to 12.7mm (1/2″) thick. Use with 10mm (3/8″) Dia. Rod Suspensions.

Frequently Bought Together with:

SHELF SUPPORT SINGLE – For shelves up to 7mm (1/4") thick. (Use with 10mm Rods)

Ideal for supporting acrylic and glass shelves up to 7mm (1/4") thick. Use with 10mm (3/8") Dia. Rod Suspensions.

SHELF SUPPORT DOUBLE – For shelves up to 7mm (1/4") thick. (Use with 10mm Rods)

Ideal for supporting acrylic and glass shelves up to 7mm (1/4") thick. Use with 10mm (3/8") Dia. Rod Suspensions.

Availability: In stock

Product Description

Rod Shelf Support Single-Sided — Horizontal Grip-Support / Non-Removable

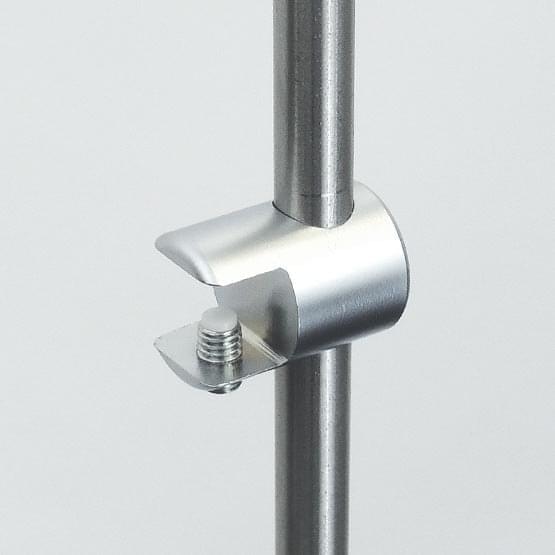

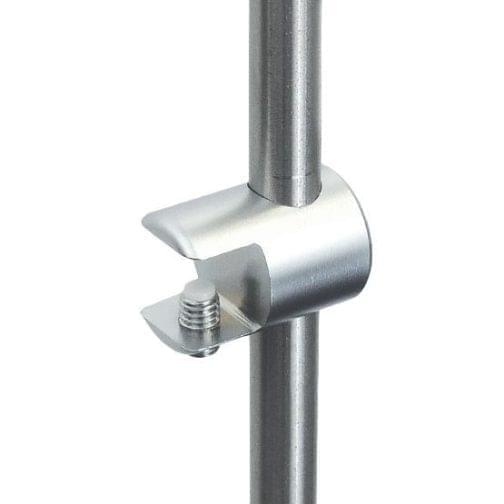

The RG15-10 cable shelf clamp support features a 20mm (3/4″) diameter round profile fitting, designed for suspending acrylic or glass shelves up to 12.7mm (1/2″) thick. This high-quality single-sided shelf support is made of solid brass and is compatible with our 10mm rod display system / rod hanging hardware kits.

The side clamps are great for supporting lightweight acrylic shelves, flat tempered glass shelves, and other custom suspended acrylic fixtures. Attaching the clamp supports to shelves is easily done by affixing them onto the shelf edge with the specially designed nylon-tipped grub screw. The entire assembly is then attached to suspended rods and securely locked into the desired position with the set screws and supplied hex key.

Key Features:
• Single-sided shelf-grip clamp support for non-drilled shelves
• Use at least four clamp supports per shelf (longer shelves may require multiple supports fixed to front and back of the shelf)
• Made of solid brass alloy with satin chrome finish
• Clamp supports grip onto shelves up to 12.7mm (1/2″) thickness
• Nylon-tipped grub screws securely fasten the shelves and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, plywood, aluminum composite, etc.
• Compatible with 10mm (3/8″) diameter rod suspension system

Explore All Mounting Options

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

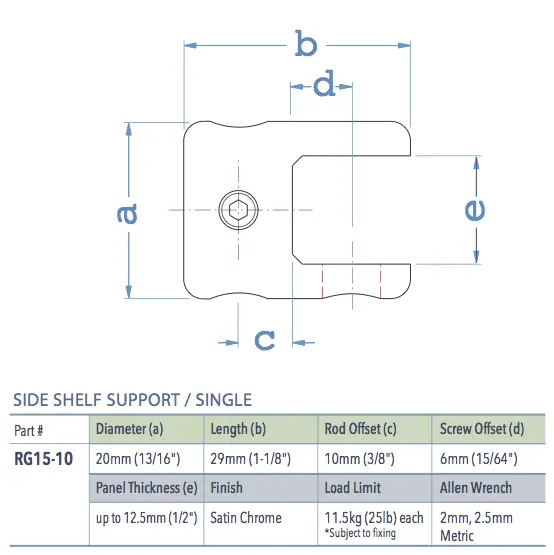

Specifications for RG15-10

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors/Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install RG15-10 Shelf Support Single-Sided – Non-Removable ❯ DOWNLOAD THE PDF HERE.
