MULTI-POSITION TOP/BOTTOM SUPPORT DOUBLE – For panels up to 7mm (1/4″) thick. (Use with 10mm Rods)

Original price was: $14.90.Current price is: $13.41.

Ideal for supporting signs and graphic panels. For panels up to 7mm (1/4″) thick. Use with panels wider than the distance between cables. Use with 10mm (3/8″) Dia. Rod Suspensions.

IMPORTANT: Standard Set Screws (M6 x 0.7 x 8mm) included with RG22-10 supports can hold 3mm (1/8″) to 6mm (1/4″) thick substrates. To accommodate thiner or thicker substrates order suitable replacement Set Screws w/Teflon Tip.

Frequently Bought Together with:

MULTI-POSITION TOP/BOTTOM SUPPORT SINGLE – For panels up to 7mm (1/4") thick. (Use with 10mm Rods)

Ideal for supporting signs and graphic panels. For panels up to 7mm (1/4") thick. Use with panels wider than the distance between cables. Use with 10mm (3/8") Dia. Rod Suspensions.

IMPORTANT: Standard Set Screws (M6 x 0.7 x 8mm) included with RG12-10 supports can hold 3mm (1/8") to 6mm (1/4") thick substrates. To accommodate thiner or thicker substrates order suitable replacement Set Screws w/Teflon Tip.

Availability: In stock

Product Description

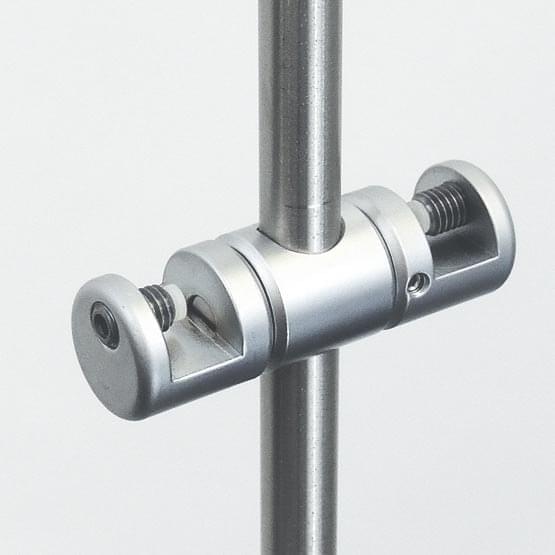

Rod Panel Edge-Grip Support Double-Sided — Multi-Position Top/Bottom Support

The RG22-10 rod multi-position edge-grip support features an 18mm (45/64″) diameter round profile fitting, designed for suspending small to medium-sized vertical panels up to 7mm (1/4″) thick. This high-quality double-sided panel gripping support is made of solid brass and is compatible with our 10mm rod display system / rod hanging hardware kits.

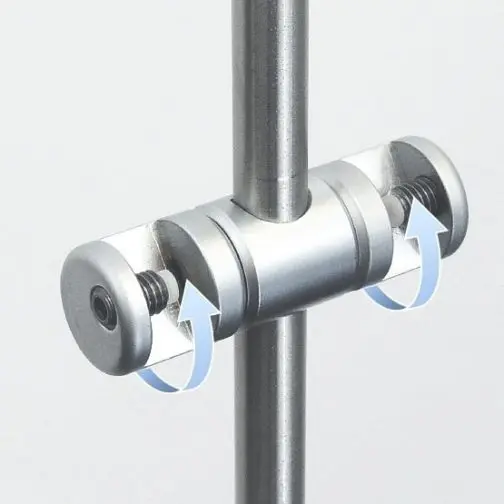

The pivoting/adjustable angle edge-grip supports are ideal for supporting acrylic frames, window displays, signs, logo panels, sign blanks, and graphic panels. Attaching the edge-grip supports to panels is easily accomplished by affixing them to the top/bottom or sides of the substrate using the specially designed nylon-tipped grub screw. The entire assembly is then attached to suspended rods so the panel is mounted in front of the rods, securely locked into the desired position with set screws using the supplied hex key.

Key Features:
• Double-sided multi-position edge-grip support for non-drilled panels
• Recommended use of at least four supports per panel (larger panels may require additional supports per panel width)
• Made of solid brass alloy with satin chrome finish
• Clamp supports grip onto panels up to 7mm (1/4″) thickness
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the panels and protect surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, PVC, foam-core, wood, etc.
• Compatible with 10mm (3/8″) diameter rod suspension system

Explore All Mounting Options

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

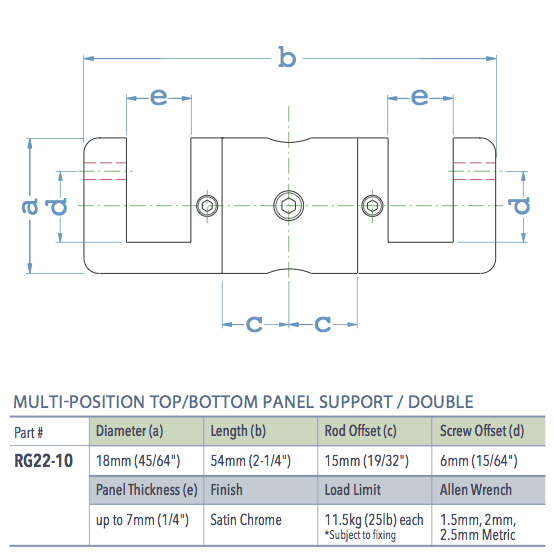

Specifications for RG22-10

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors/Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
