MULTI-POSITION SUPPORT SINGLE FOR WOODEN SHELVES AND PANELS. (Use with 10mm Rods)

Original price was: $8.90.Current price is: $8.01.

Use for supporting wooden shelves and panels. Adjustable to any angle. It can be locked into position. Use P08 Screw/Retainer with 6mm (15/64″) drilled glass shelves. Use with 10mm (3/8″) Dia. Rod Suspensions.

Frequently Bought Together with:

MULTI-POSITION SUPPORT DOUBLE FOR WOODEN SHELVES AND PANELS. (Use with 10mm Rods)

Use for supporting wooden shelves and panels. Adjustable to any angle. It can be locked into position. Use P08 Screw/Retainer with 6mm (15/64") drilled glass shelves. Use with 10mm (3/8") Dia. Rod Suspensions.

Availability: In stock

Product Description

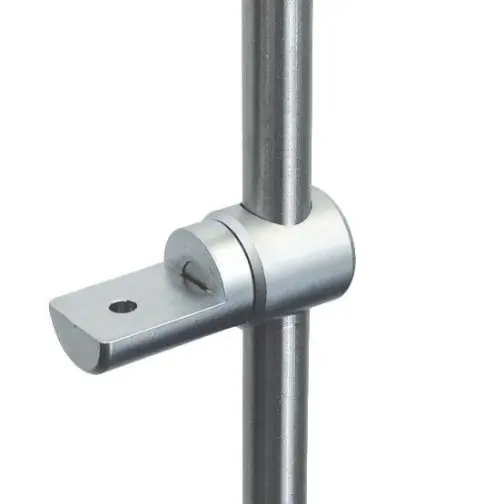

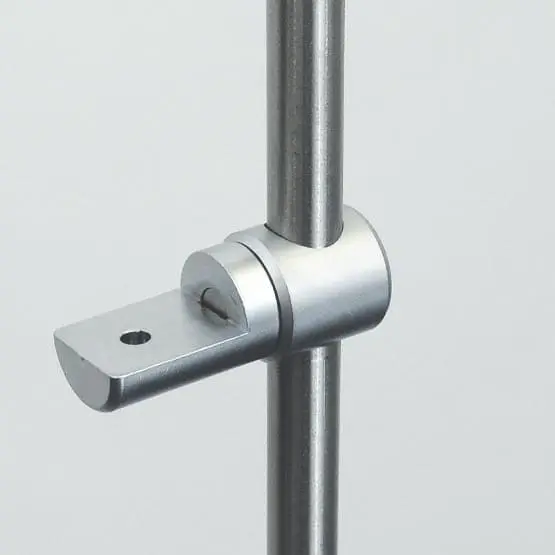

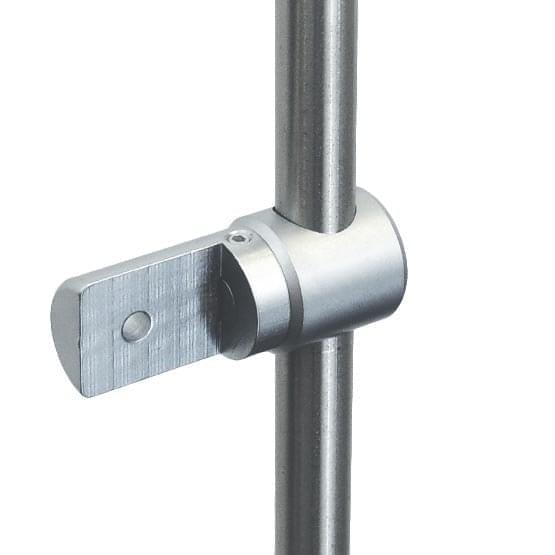

Rod Support with Pivoting/Adjustable Angle — Multi-Position Support for Wooden Shelves and Panels / Single-Sided — Non-Removable

The RS11-10 rod multi-position panel/shelf support features a 18mm (45/64″) diameter round profile fitting, designed for suspending wood panels and shelves 20mm (3/4″) thick or more. This high-quality single-sided panel/shelf support is made of solid brass and is compatible with our 10mm rod display system / rod hanging hardware kits.

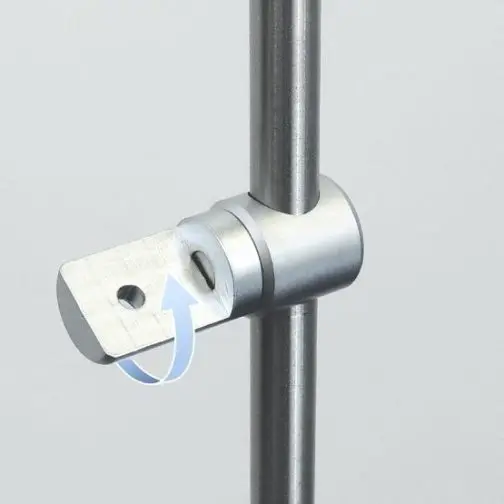

The pivoting/adjustable angle supports are ideal for supporting flat and sloped wood shelves, wood panels, and other custom suspended fixtures. Attaching the supports to panels or shelves is easily accomplished by affixing them with a screw from the back. The entire assembly is then attached to suspended rods and securely locked into the desired position with set screws using the supplied hex key. The supports swivel to any angle and are locked in place by a set screw.

Key Features:
• Single-sided multi-position support for wood panels or shelves
• Recommended use of at least four supports per panel/shelf
• Made of solid brass alloy with satin chrome finish
• Supports panels and shelves 20mm (3/4″) thick or more (*subject to material type and weight)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Works with a wide range of materials, such as wood, plywood, butcher block, laminate, etc.
• Compatible with 10mm (3/8″) diameter rod suspension system

Explore All Mounting Options

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.

Attributes

Load Limits

Compatibility

Weight

Dimensions

Mounting Options

Material Thickness

Materials

Finish

Allen Wrench Size

Availability

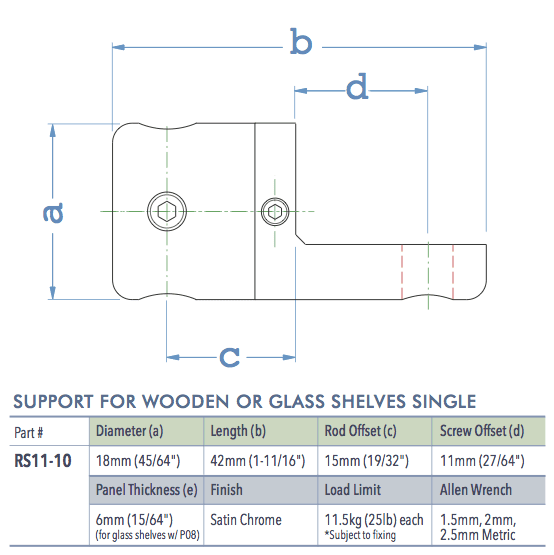

Specifications for RS11-10

DOWNLOAD PRODUCT SPECS HERE

Composition and Materials:

For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors/Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.

Quality/Warranty:

Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install RS11-10 Multi-Position Support Single-Sided for Wooden Shelves and Panels – Non-Removable ❯ DOWNLOAD THE PDF HERE.
