Product Description

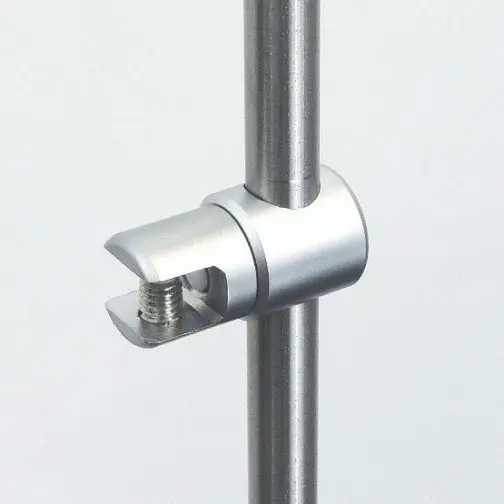

Rod Support with Pivoting/Adjustable Angle — Multi-Position Panel/Shelf Clamp Support Single-Sided / Non-Removable

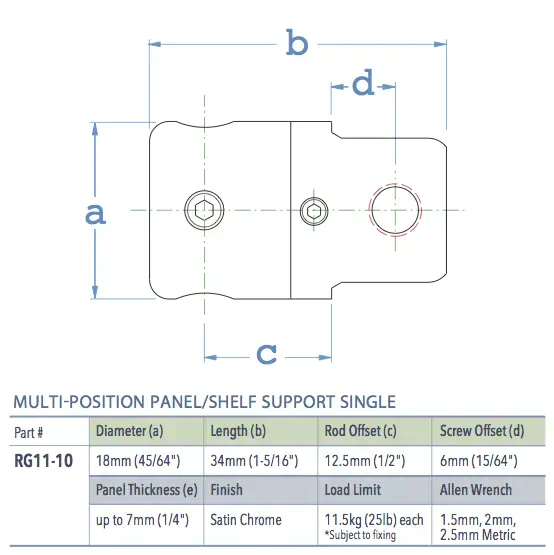

The RG11-10 rod multi-position panel/shelf support features a 18mm (45/64″) diameter round profile fitting, designed for creating suspended angled presentations using panels and shelves up to 7mm (1/4″) thick. This high-quality single-sided panel/shelf support is made of solid brass and is compatible with our 10mm rod display system / rod hanging hardware kits.

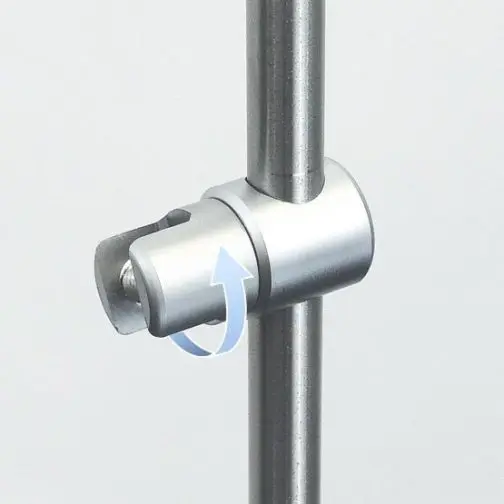

The pivoting angle side clamps are ideal for supporting lightweight acrylic shelves, tempered glass shelves, sloped acrylic shelves, reclined literature holders, and other custom suspended fixtures. Attaching the clamp supports to panels and shelves is easily accomplished by affixing them to edges using the specially designed nylon-tipped grub screw. The entire assembly is then attached to suspended rods and securely locked into the desired position with set screws using the supplied hex key. The supports swivel to any angle and are locked in place by a set screw.
Key Features:
• Single-sided multi-position clamp support for non-drilled panels and shelves
• Recommended use of at least four clamp supports per panel/shelf
• Made of solid brass alloy with satin chrome finish
• Clamp supports grip onto panels or shelves up to 7mm (1/4″) thickness
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the panels/shelves and protect surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, plywood, aluminum composite, etc.
• Compatible with 10mm (3/8″) diameter rod suspension system
