Product Description
Rod Support with Pivoting/Adjustable Angle — Multi-Position Support for Wooden Shelves and Panels / Double-Sided — Non-Removable

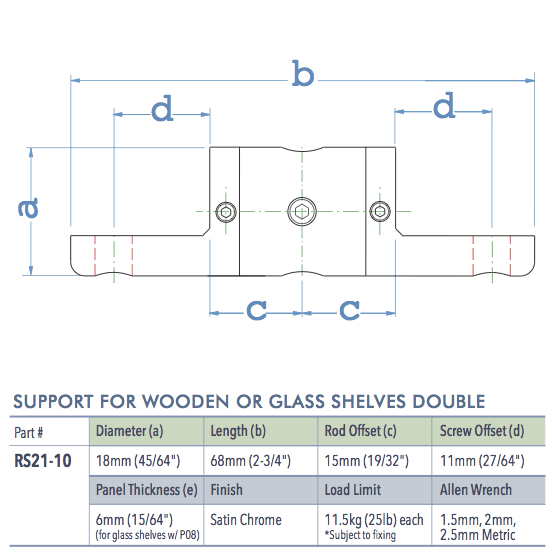

The RS21-10 rod multi-position panel/shelf support features a 18mm (45/64″) diameter round profile fitting, designed for suspending wood panels and shelves 20mm (3/4″) thick or more. This high-quality double-sided panel/shelf support is made of solid brass and is compatible with our 10mm rod display system / rod hanging hardware kits.
The pivoting/adjustable angle supports are ideal for supporting flat and sloped wood shelves, wood panels, and other custom suspended fixtures. Attaching the supports to panels or shelves is easily accomplished by affixing them with a screw from the back. The entire assembly is then attached to suspended rods and securely locked into the desired position with set screws using the supplied hex key. The supports swivel to any angle and are locked in place by a set screw.
Key Features:
• Double-sided multi-position support for wood panels or shelves
• Recommended use of at least two clamp supports per shelf at the joined side
• Made of solid brass alloy with satin chrome finish
• Supports panels and shelves 20mm (3/4″) thick or more (*subject to material type and weight)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Works with a wide range of materials, such as wood, plywood, butcher block, laminate, etc.
• Compatible with 10mm (3/8″) diameter rod suspension system
Explore All Mounting Options ❯
