1.5mm (1/16″) CABLE w/Ceiling-to-Floor Fixings and Top/Bottom Isolators – 4.0M (13′ 1-1/2″) Long


Includes Top and Bottom Fixings with Spring Tensioner and Power Isolators. Use to suspend Glow-Edge LED Light Pockets with Cable Side-Clips.

Availability: In stock

Product Description

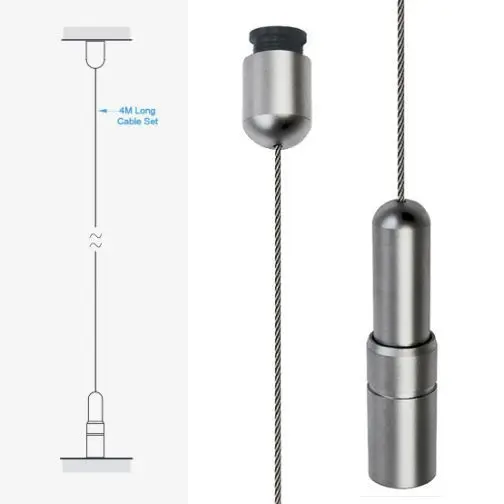

4.0M (13\’ 1-1/2″) Long 1.5mm (1/16″) Diameter Cable with Ceiling-to-Floor Fixings and Top/Bottom Isolators

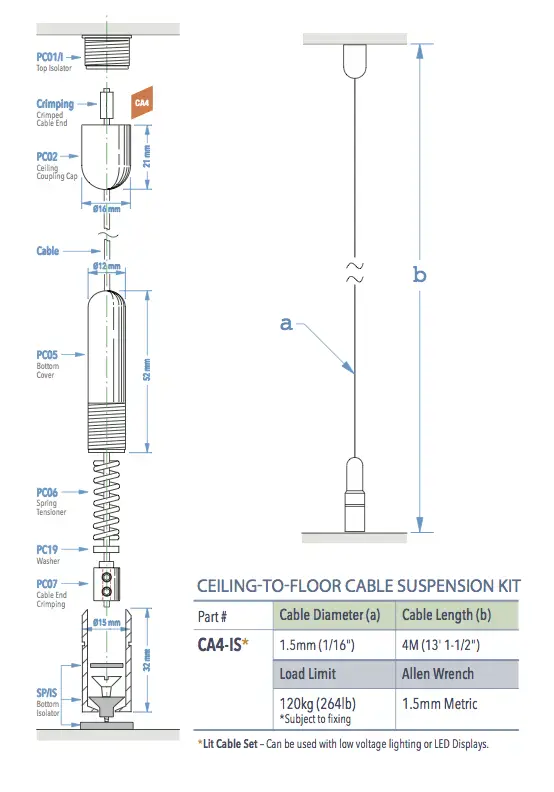

The Cable Suspension Set includes Top and Bottom Fixings with Spring Tensioner and Power Isolators (PC01/I and SP/IS).

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.


Cable Length

Top Fixing

Bottom Fixing Tensioner

Load Limits



Mounting Options

Material Thickness




Allen Wrench Size


Specifications for CA4-IS


Composition and Materials:

Cables used in assemblies are made from galvanized steel and are resistant to fraying, kinking or snapping. Cables have a 7 × 7 configuration: seven individual wires twisted into seven different layers/rows to make a total construction composed of 49 wires. This creates a durable construction with high flexibility and abrasion resistance. Cable fixings are made from a brass alloy, UNS C37710/ASTM B124. Cables are provided with spring tensioners—cable will not slacken with temperature changes; easily adjusted without tools.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.


Cables are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.

Installations Instructions

How to Install CA4-IS 4.0M (13′ 1-1/2″) Long 1.5mm (1/16″) Dia. Cable with Ceiling to Floor Fixings and Top/Bottom Isolators ❯ DOWNLOAD THE PDF HERE.
