Product Description

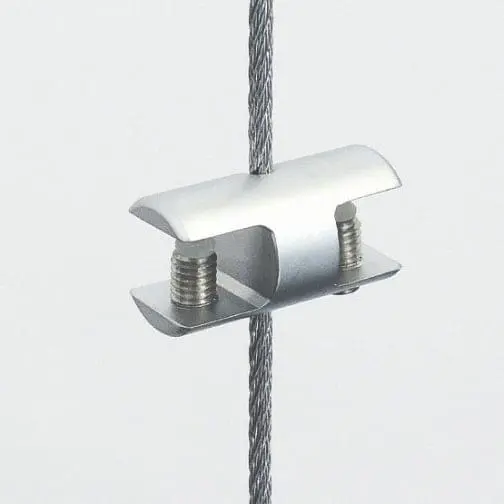

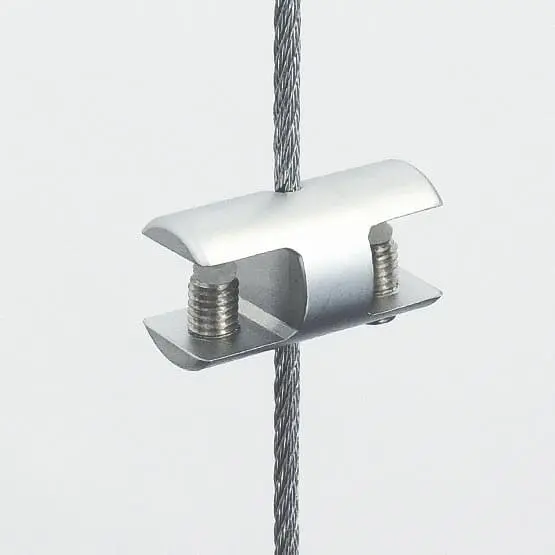

Cable Shelf Support Double-Sided — Horizontal Grip-Support

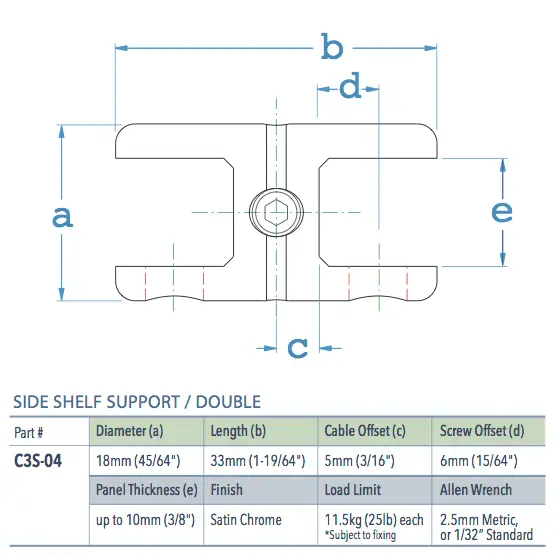

The CS104 cable shelf clamp support features a 18mm (45/64″) diameter round profile fitting, designed for suspending acrylic or glass shelves up to 10mm (3/8″) thick. This high-quality double-sided shelf support is made of solid brass and is compatible with our 3mm cable display system / hanging hardware kits.
The side clamps are great for supporting lightweight acrylic shelves, flat tempered glass shelves, and other custom suspended acrylic fixtures. Attaching the clamp supports to suspended shelves is easily done by affixing them onto the shelf edge with the specially designed nylon-tipped grub screw. The entire assembly is then attached to cables and securely locked into the desired position with the set screws and supplied hex key. Use the double-sided supports to link together adjoining shelves that share a single cable.
Key Features:
• Double-sided shelf-grip clamp support for non-drilled shelves
• Use at least two clamp supports per shelf at the joined side
• Made of solid brass alloy with satin chrome finish
• Clamp supports grip onto shelves up to 10mm (3/8″) thickness
• Recommended Safety Load Limits per Fitting: 12kg (25lb)
• Nylon-tipped grub screws securely fasten the shelves and protect the surfaces from damage
• Works with a wide range of materials, such as acrylic, tempered glass, plywood, aluminum composite, etc.
• Compatible with 3mm (1/8″) diameter cable suspension system
Explore All Mounting Options ❯
