VERTICAL SUPPORT DOUBLE – For panels up to 7mm (1/4″) thick. (Use with 1.5mm Cables)

Original price was: $8.90.Current price is: $7.57.

Ideal for supporting acrylic pockets, signs and graphic panels from sides

Frequently Bought Together with:

VERTICAL SUPPORT SINGLE – For panels up to 7mm (1/4") thick. (Use with 1.5mm Cables)*

Ideal for supporting acrylic pockets, signs and graphic panels from sides

Acrylic Leaflet Dispenser – Treble Pocket. Insert Size: 3.5"W x 8.5"H Tri-Fold. (with 1/8" base)

1/8" Clear acrylic leaflet-holder designed to take tri-fold brochures

*Acrylic Literature Holders are Made-to-Order (MTO) – All sales are final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.

Availability: In stock

Product Description

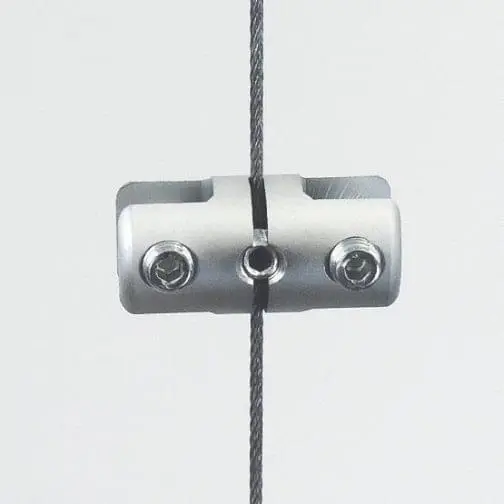

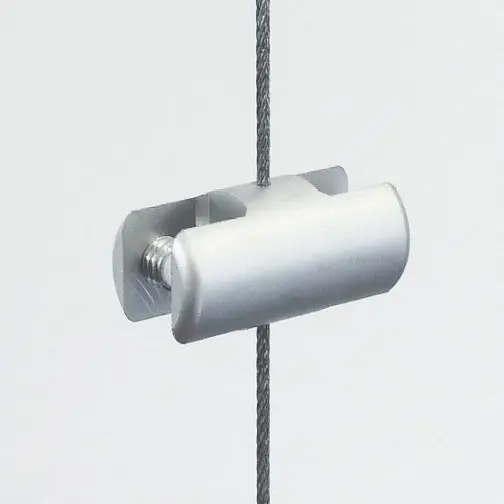

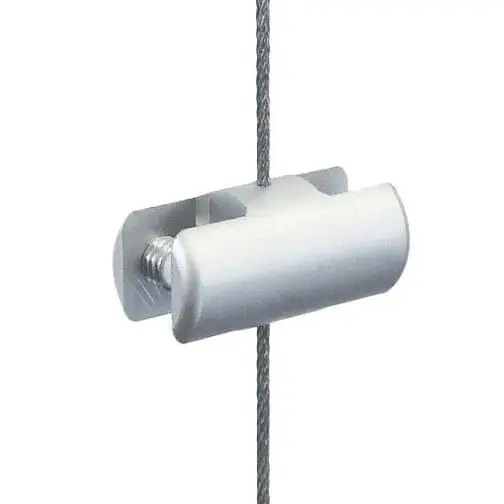

Vertical Support Double-Sided

For panels up to 7mm (1/4″) thick. Use with 1.5mm (1/16″) Dia. Cable Suspensions.

⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.


Load Limits




Mounting Options

Material Thickness



Allen Wrench Size

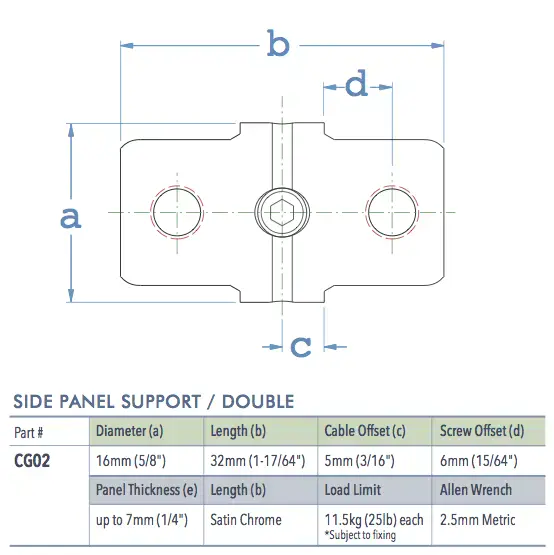

Specifications for CG02


Composition and Materials:

For durability, all cable display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.

Colors and Finishes:

Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.

Product Limitations:

For indoor use only. Cable system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 304/316 cables that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.


Cable fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components

Installations Instructions

How to Install CG02 Vertical Support Double-Sided ❯ DOWNLOAD THE PDF HERE.
