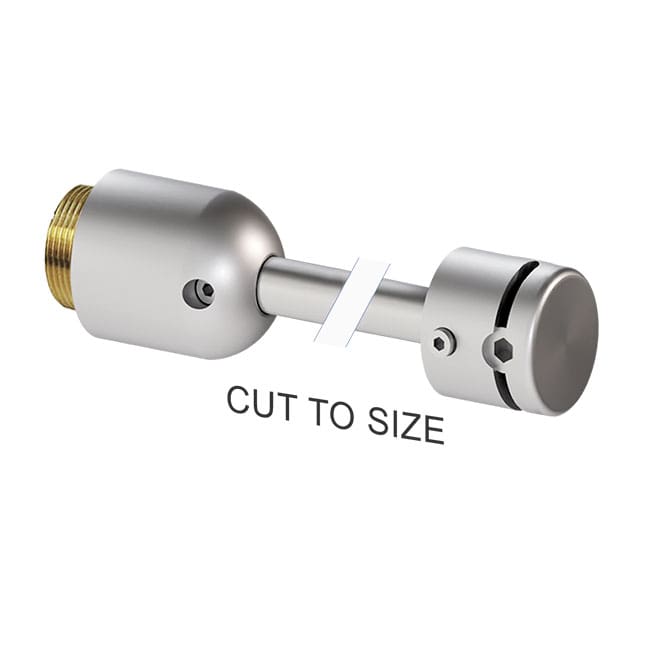

Wall-Mounted Rod Stabilizer with Customizable Depth for 1.5mm Cable System
$15.90
This stabilizer is designed to secure ceiling-to-floor suspended cables, providing lateral support without bearing weight. It is not intended as a structural load-bearing component.
Kit includes: Standard Push-Fit Fixing (RP), Single-Sided Cable Support (CS05), and 6mm Non-Threaded Rod (R150P). The standard rod length is 0.15m (5-7/8″), which can be easily cut shorter on-site for custom projections.
Product Description
Wall-Mounted Rod Stabilizer with Customizable Depth for 1.5mm Cable System
This customizable wall-mounted rod stabilizer kit features 6mm-diameter rods that can be trimmed to any desired length during installation for precise fit. Secure the projecting rod to the wall using the RP rod support, then cut the rod to the required size and connect it to the vertical suspended cable via the CS05 cable support. Ideal for stabilizing ceiling-to-floor suspended cables only—this kit is not designed to support weight or serve as a load-bearing structure.
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Compatibility | Use with any 6mm non-threaded rods to create customized depth applications |
|---|---|
| Dimensions | |
| Mounting Options | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |
DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors/Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Rod fittings are designed and manufactured to the rigid standards of quality with a 12-month guarantee on all metal components.
Installations Instructions
How to Install KRP-CS05 Support ❯ DOWNLOAD THE PDF HERE.
