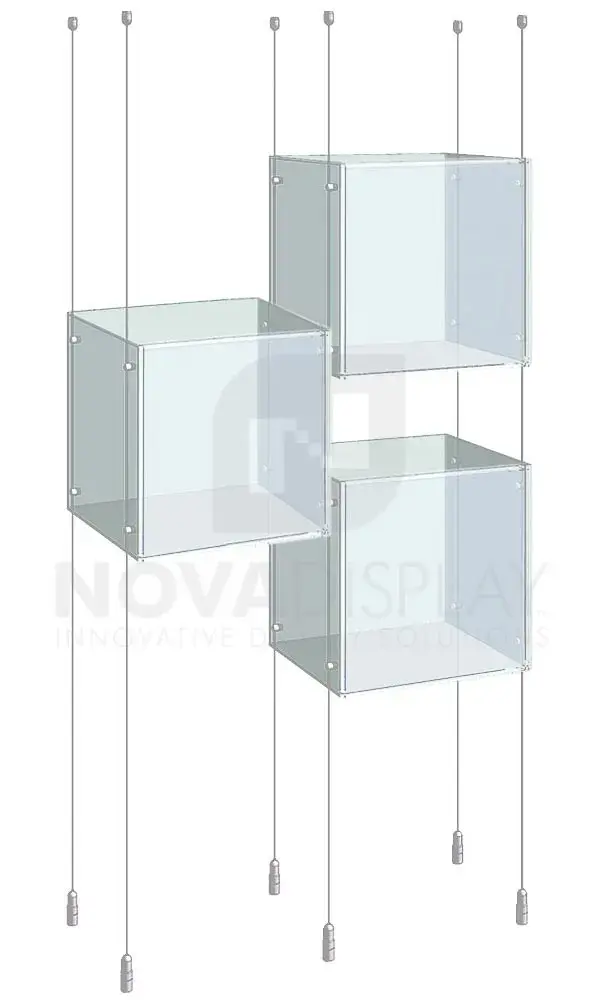

Cable Suspended Acrylic Showcase Display Kit #KSC-008


1/4″ Thick Clear Acrylic Display Case – Lockable. Kit supplied with 1.5mm cable suspension hardware, supports, and acrylic display cases.

*Acrylic Display Showcases are Made-to-Order (MTO) – All sales final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.

Non-Lit Acrylic Locking Display Case – ALL CLEAR. Size: 12" & 15" Cubes × 3

Choose Your Display Case Size

Acrylic display cases are available in either
12" x 12 x 12" or 15” x 15" x 15" sizes.
Available options:

Product Description

Cable Suspended Acrylic Showcase Display Kit / Non-Illuminated

Supplied with acrylic display cases made of 1/4″ (6mm) thick clear acrylic. Available in two different sizes: 12″ x 12″ x 12″, and 15″ x 15″ x 15″.

Suspended from Cables (Ceiling-to-Floor)

CA4 – Top / Bottom Fixings & Cables (6 ea)
Cable Length – up to 13 feet (*To be cut/adjusted in place)
CS13 – Support Single (24 ea)

Acrylic Display Case / Lockable
14CASE-*SIZE*/CL – 1/4″ Thick Clear Acrylic Case with Sliding Back Panel and Lock (3 ea)
(*Choose Case Size)

AVAILABILITY: 10-15 Bus. Days (Fabrication and Delivery Time)

FINISHES: Mounting Hardware is supplied in satin chrome finish as standard, other finishes on request. The display showcases are made of high-quality 1/4″ thick clear acrylic.

CUSTOMIZATIONS: We custom fabricate Acrylic Display Showcases in various configurations using clear acrylic as standard. Specially designed cases with frosted sides, mirrored back, or satinice colors are also available. All custom orders are subject to a minimum order requirement. For pricing on custom sizes and configurations please send us a sketch or detailed description with expected time-line using our Quote Request Form

INSTALLATION NOTES: Assembly required.

Additional Information

Non-Lit Acrylic Locking Display Case – ALL CLEAR. Size: 12" & 15" Cubes

Case Size




Load Option

Load Limits




Mounting Options


Material Thickness



Cleaning & Handling of Acrylic Display Products

The number one problem with acrylic is the use of incorrect cleaners. Please never use cleaners containing ammonia, glass cleaners and furniture polish such as Fantastik, Tilex, Windex, or Clorox, they will all harm your new piece of acrylic. Use mild soap and water to clean acrylic products or only products specifically recommended for cleaning acrylic such as Craftics, Novus, or other Rated Anti-Static Cleaner & Polish for Plastics. Use micro-fiber disposable low lint cloths that are specially designed for cleaning acrylic and other plastic. Never use a dry cloth or your hand to clean your acrylic. Using the wrong cleaner can cause damage to acrylic products that can occur within minutes or be delayed weeks or even months. Repeated use of the wrong cleaners will weaken the structural joints and cause cracking to occur. Be careful during install, dropping your acrylic can cause cracking.

Product Limitations

Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.

Acrylic/Plastic Cleaning KitAcrylic/Plastic Cleaning Kit

Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.

Install Guide

How to Install Acrylic Showcases with Cable Suspension Systems ❯ DOWNLOAD PDF HERE

More Installation Instructions are available at the Installation Guides / Download Pages. You may search for correct install guides by item code, component SKU, or product description. If you can’t find the correct guide contact us by email – General Inquires & Questions.
