Product Description

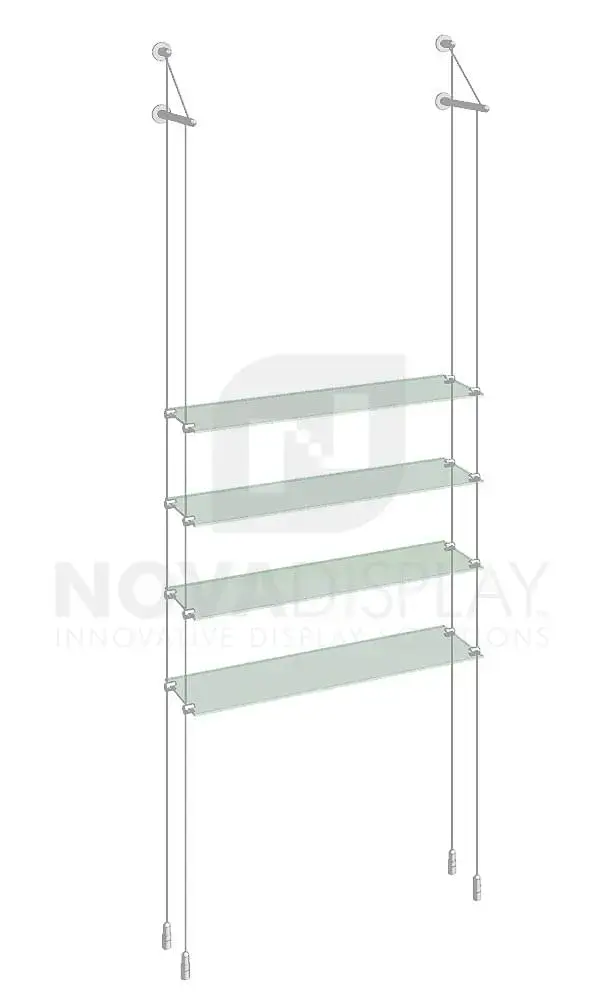

Cable Suspended Glass Shelving Display Kit
Supplied with tempered glass shelves with polished edges, in either 3/16″ (5mm) or 3/8″ (10mm) thick.
Available in three different widths: 14″, 24″, and 36″ wide and two different depths: 8″ and 14″
FIXING TYPE:
Wall Mounted from Cables (Wall-to-Floor)
HARDWARE:
C2WF-15 – Wall Cable Fixings for 8″ Deep Shelves (2 ea)
Cable Length – up to 9 feet (*To be cut/adjusted in place)
-or-
C2WF-30 – Wall Cable Fixings for 14″ Deep Shelves (2 ea)
Cable Length – up to 9 feet (*To be cut/adjusted in place)
CG06 – Shelf Supports Single for 3/16″ (5mm) thick glass (16 ea)
-or-
CS103 – Shelf Supports Single for 3/8″ (10mm) thick glass (16 ea)
ACCESSORIES:
Tempered Glass Shelves (4 ea)
*Available in 3/16″ (5mm) or 3/8″ (10mm) thickness / 8″ Deep or 14″ Deep Shelves
AVAILABILITY: 3-7 Bus. Days (Fabrication and Delivery Time)
FINISHES: Mounting Hardware in satin chrome finish as standard, other finishes on request. Glass shelves are supplied in few standard shapes and sizes. Available in 3/16″ (5mm) thick clear tempered glass with pencil polished edges and 3/8″ (10mm) thick clear tempered glass with flat polished edges.
CUSTOMIZATIONS: We custom fabricate Acrylic Shelves in clear and frost acrylic clear or frosted acrylic in thickness up to 1/2″ (12.5 mm). For pricing on custom sizes and configurations please send us a sketch or detailed description with expected time-line using our Quote Request Form
INSTALLATION NOTES: Order and install only the glass shelf units that correspond to maximum load rate of displayed products. The permissible load for glass shelves is based on two-sided support, maximum load less dead weight of tempered glass… (Glass Loads Chart for Cable Displays)
