Cable Suspended Acrylic Shelving Kit #KSI-005PLEX


Supplied with 1.5mm cable suspension hardware: ceiling-to-floor cable fixings, cable clamp supports for shelves, and colorless clear acrylic shelves with polished edges. Use to display collectibles, promotional products, or lightweight merchandise.

*Acrylic Shelves are Made-to-Order (MTO) – All sales final, no returns, no exchanges. Please read our WebStore “Terms & Conditions Policy“.

Product Description

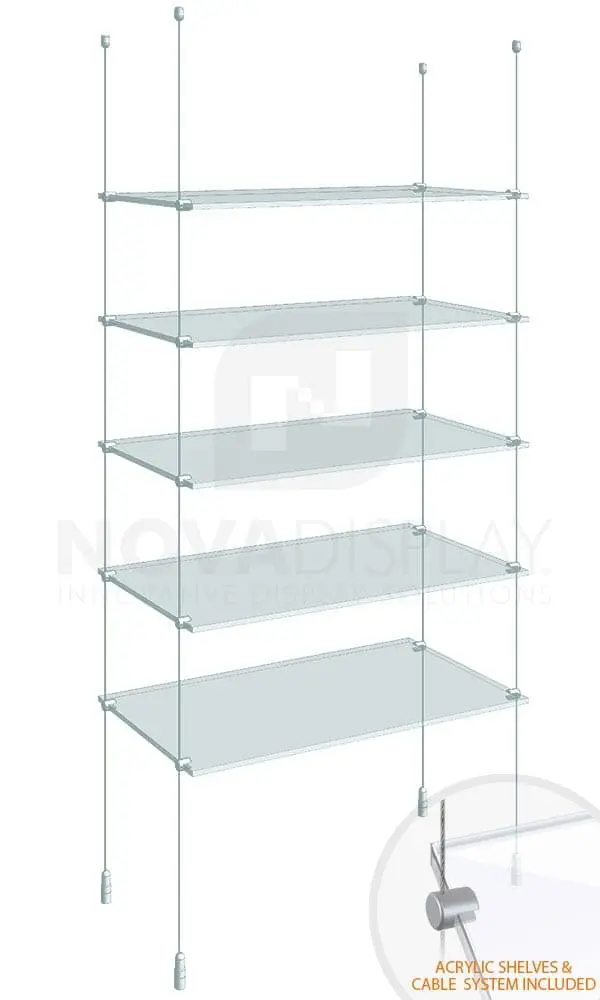

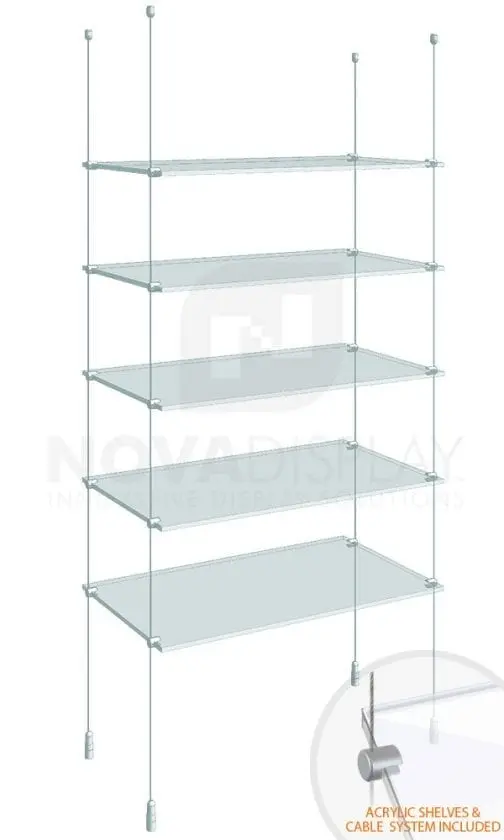

Cable Suspended Acrylic Shelving Display Kit #KSI-005PLEX

Supplied with clear acrylic shelves with laser-cut polished edges, in either 3/8″ (10mm) or 1/2″ (12.5mm) thick. Available in 14″ depth and 14″, 24″, or 36″ widths.

Suspended from Cables (Ceiling-to-Floor)

C101-4M – Top/Bottom Fixings & Cables (4 ea)
Cable Length – up to 13 feet (*To be cut/adjusted in place)
CS103 – Shelf Supports for 3/8″ (10mm) thick acrylic (20 ea)
CS105 – Shelf Supports for 1/2″ (12.5mm) thick acrylic (20 ea)

38ASH-*SIZE* – 3/8″ (10mm) thick Clear Acrylic/Plexiglass Shelves (5 ea)
12ASH-*SIZE* – 1/2″ (12.5mm) thick Clear Acrylic/Plexiglass Shelves (5 ea)

AVAILABILITY: 5-10 Bus. Days (Fabrication and Delivery Time)

FINISHES: Mounting Hardware is supplied in satin chrome finish as standard. Acrylic shelves are supplied in colorless clear finish as standard. Other finishes are available on request.

CUSTOMIZATIONS: We custom fabricate Acrylic Shelves in clear, green-edge, or frost acrylic finishes and in various thicknesses. For pricing on custom sizes and configurations please send us a sketch or detailed description with expected time-line using our Quote Request Form

INSTALLATION NOTES: Order and install only the acrylic shelf units that correspond to maximum load rate of displayed products. The permissible load for acrylic shelves is based on two-sided support, maximum load less dead weight of acrylic… (Permissible Loads Chart for Cable Suspended Acrylic Shelves)


Shelf Size

, ,



Mounting Options

Cable Length




Cleaning & Handling of Acrylic Display Products

When caring for acrylic accessories, it’s crucial to avoid using incorrect cleaners, as they can cause harm. Never use cleaners containing ammonia, glass cleaners, or furniture polish such as Fantastik, Tilex, Windex, or Clorox, as they can damage your acrylic. Instead, use mild soap and water or products specifically recommended for cleaning acrylic, such as Novus or other Rated Anti-Static Cleaner and Polish for Plastics. When cleaning, use micro-fiber disposable low lint cloths designed for acrylic and other plastics, and avoid using a dry cloth or your hand. Using the wrong cleaner can lead to immediate or delayed damage, weakening structural joints and causing cracking. During installation, handle acrylic with care to prevent cracking.

Product Limitations

Acrylic is not as rigid as glass or metals. Large, flat acrylic sheets, if insufficiently supported, may deform permanently due to continuous loads or even their own weight. Acrylic sheet can be used at temperatures from -30°F (-34°C) up to +190°F (+88°C), depending on the application. It is recommended that temperatures not exceed 160°F (71°C) for continuous service, or 190°F (88°C) for short, intermittent use. Components should not be exposed to high heat sources such as high wattage incandescent lamps, unless the finished product is ventilated to permit the dissipation of heat. Acrylic sheet is a combustible thermoplastic. Precautions should be taken to protect this material from flames and high heat sources.

Acrylic/Plastic Cleaning KitAcrylic/Plastic Cleaning Kit

Cleaner & Polisher — cleans and brightens acrylic and all hard plastic surfaces. Leaves a shiny polished surface that resists dust and fingerprints. Contains no abrasives or harsh chemicals. Cleans, glazes, and eliminates static charge all in one operation. Recommended for: Acrylic, Plexiglass, Lexan, Vinyl, Glass, and all hard plastics. Use disposable or reusable cleaning cloths.

Install Guide

How to Install Acrylic Shelves with Cable Suspension Systems ❯ DOWNLOAD PDF HERE

More Installation Instructions are available at the Installation Guides / Download Pages. You may search for correct install guides by item code, component SKU, or product description. If you can’t find the correct guide contact us by email – General Inquires & Questions.

Safety Load Limits – permissible load for flat acrylic shelves is based on the shelf width, recommended safety load for cable suspension hardware, and deflection rate of acrylic (sagging under load) ❯ DOWNLOAD TABLE HERE
