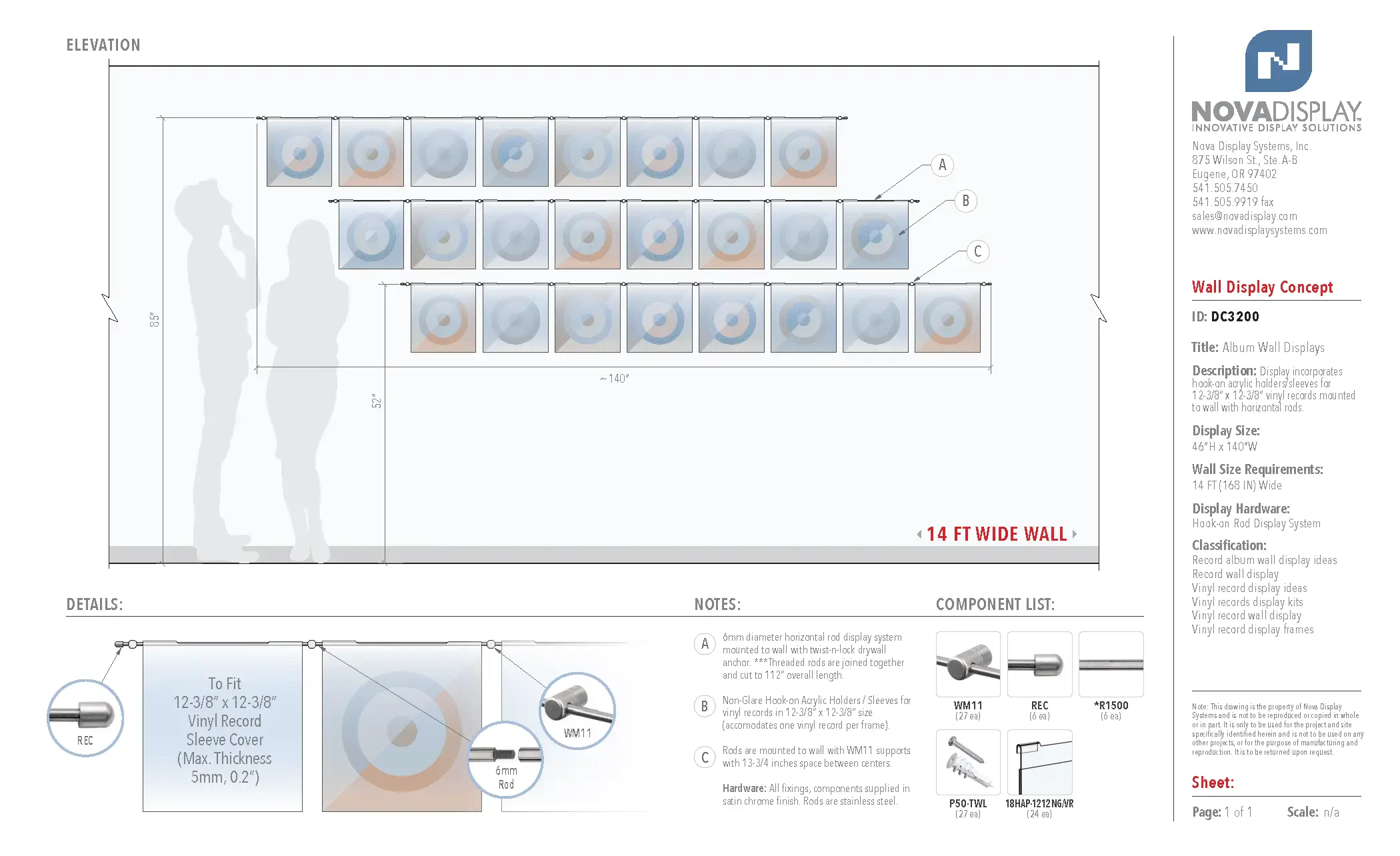

DC3200 Album Cover Wall Display Concept

DC3201 Album Cover Wall Display / Wall Display Idea Concept


Album Cover Wall Display – incorporates hook-on acrylic holders for 12“ round vinyl records mounted to wall with horizontal rod display system. The acrylic holders are specially designed to accommodate for a single 12-3/8” x 12-3/8“ size vinyl record cover sleeve. Display comes with wall mounts made of brass with satin chrome finish, steel rods in natural brushed stainless finish, and clear or non-glare (non-reflective) acrylic holders. *Select acrylic finish type on the product page.

Size Requirements:

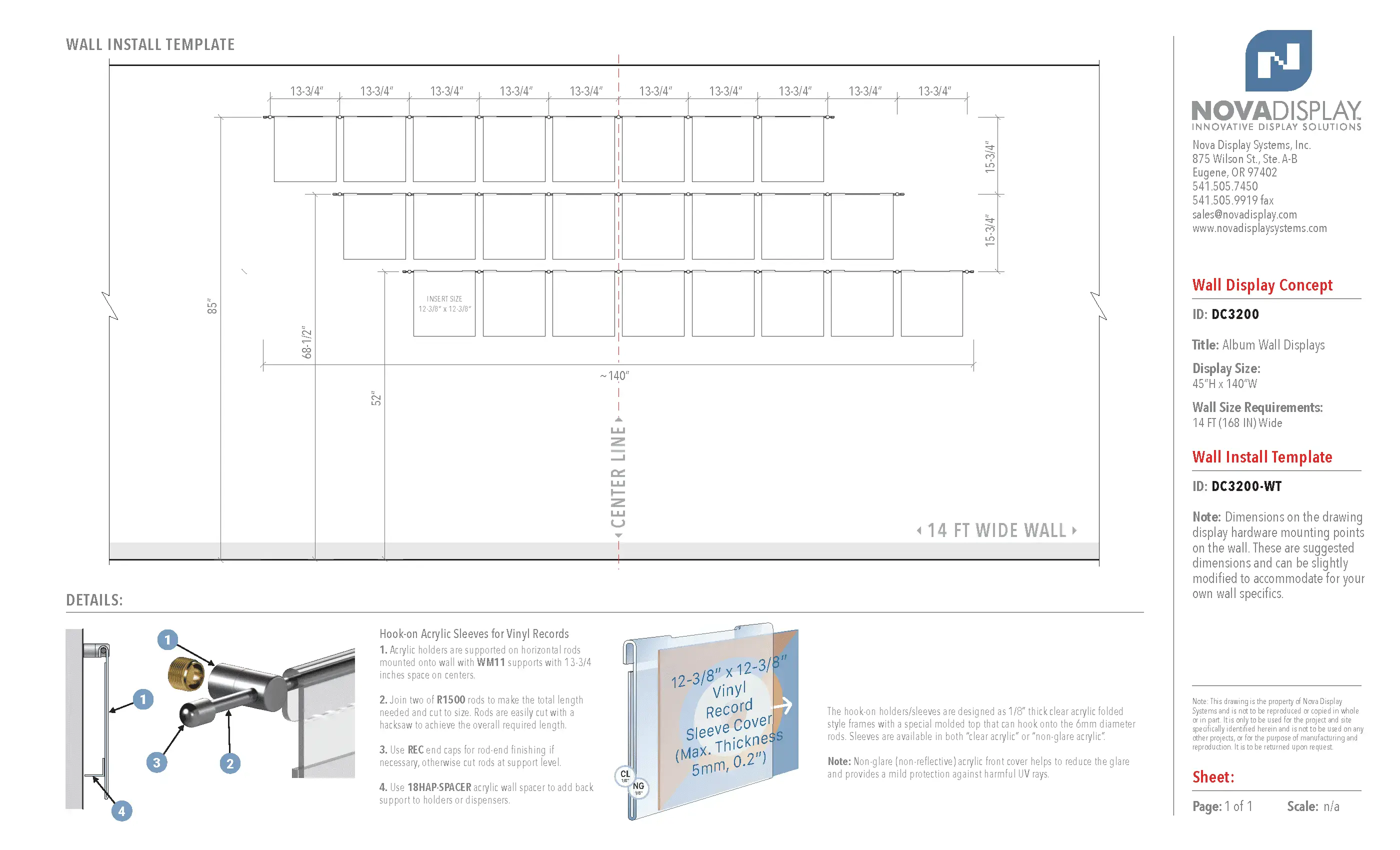

Overall Display Size: 140″W x 46″H
Wall Size: 14 ft (168 in) Wide

Component List:

  • 18HAP-1212/VR (*NG) – Clear or Non-Glare Acrylic Hook-on Holder for 12″ round vinyl records (24 ea) / *Select finish type above.
    Insert Size: 12-3/8″W x 12-3/8″H
  • WM11 – Rod Wall Fixing (27 ea)
  • R1500 – 1.5m (4′ 11-1/16″) 6mm Dia. Rod (6 ea)


  • REC – Decorative End Cap (6 ea)
  • P50-TWL – Twist-n-Lock Drywall Anchor Set (27 ea)

Key Features:

  • Attractive, modern appearance. Ideal for displaying album cover sleeves on interior walls.
  • Provides a quick and easy way to change the inserts.
  • Pockets hook onto rods without the use of any tools.
  • The display equipment has an upscale look and can be re-configured or easily customized.
  • Works with 5mm (3/16″) thick substrates.
  • Custom size pockets are available.

Availability & Customizations:

  • Fabrication Time: 5-7 Bus. Days
  • For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form


  • Graphic Inserts Printing
    Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files.
  • Raised Letters / Logo Signage
    Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“.
