DC2303 Literature Wall Display Concept

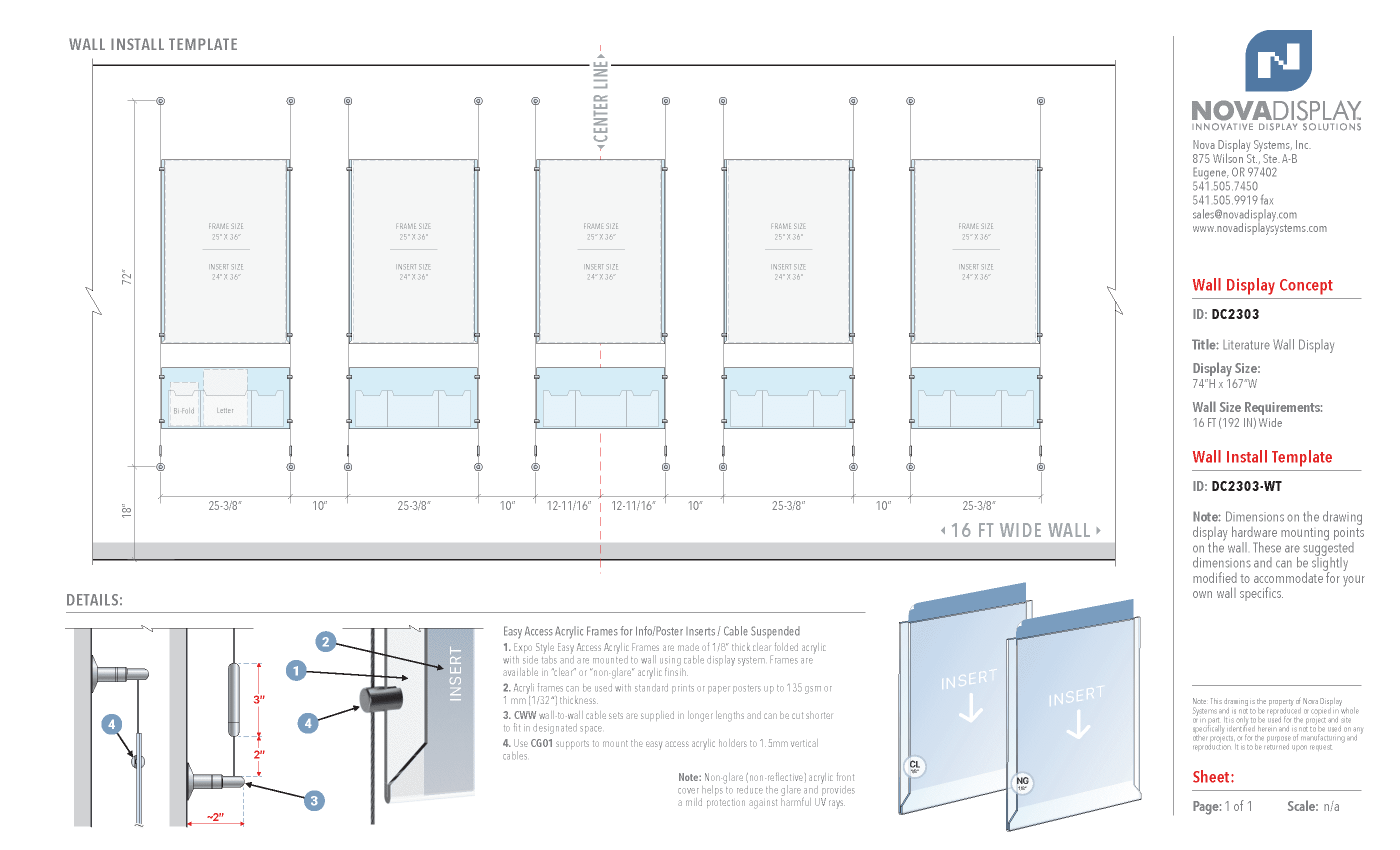

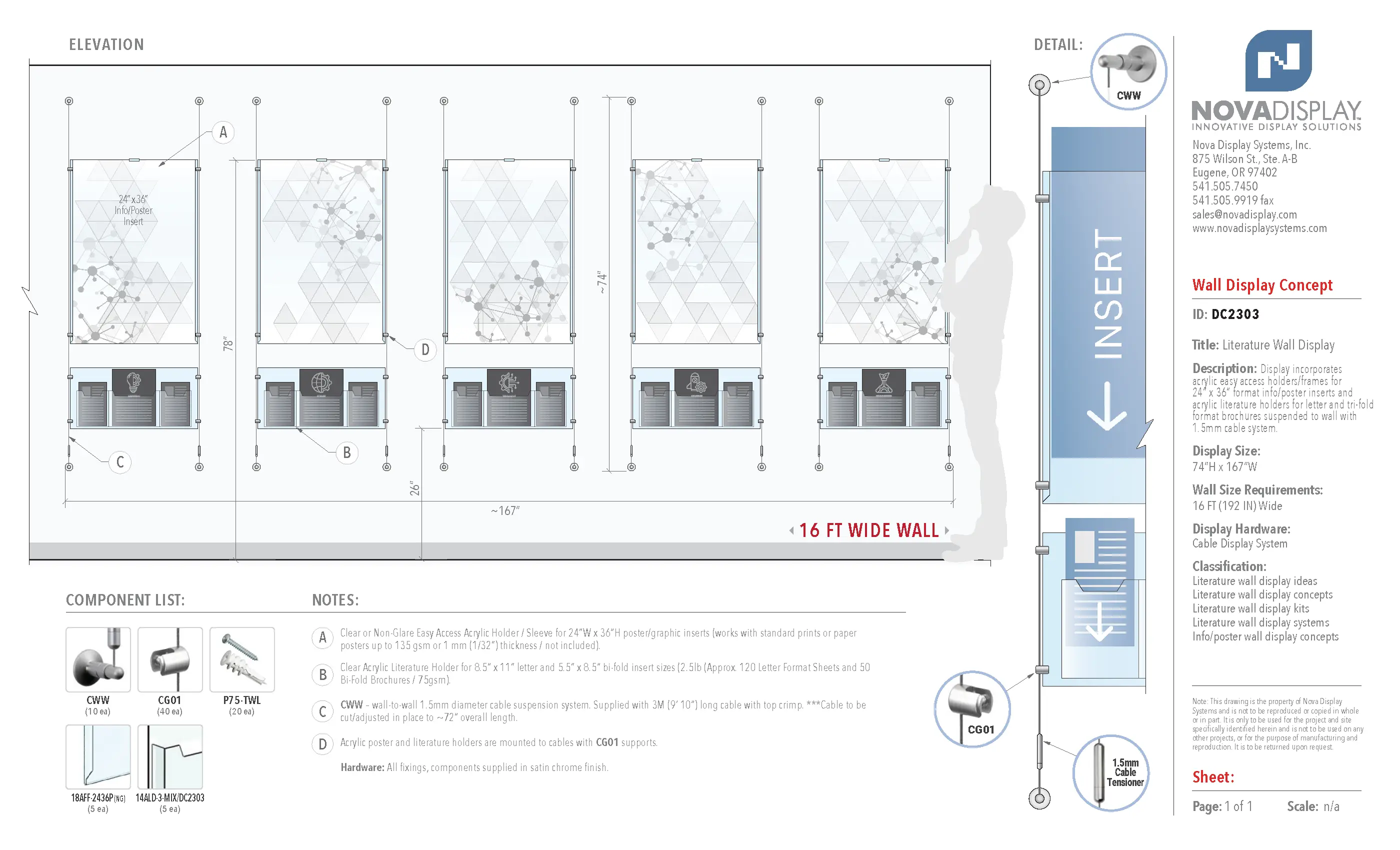

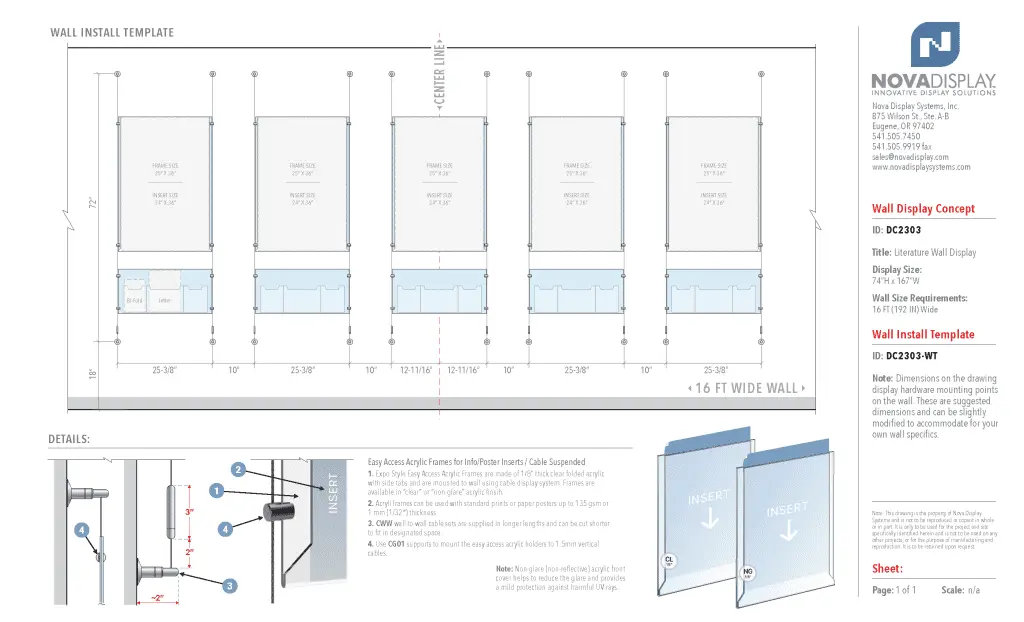

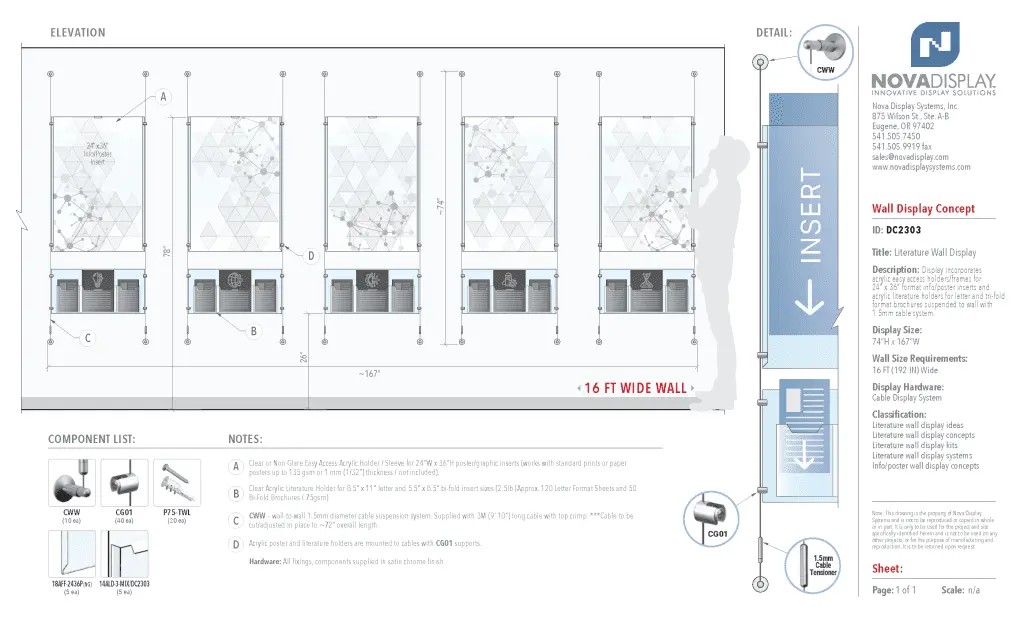

DC2303 Literature Wall Display / Wall Display Idea Concept


Literature Wall Display – incorporates acrylic easy access holders for 24” x 36“ format poster inserts and acrylic literature holders for letter and tri-fold size brochures suspended onto wall-to-wall cable display system. It is an easy-to-use display system which allows you to create stylish interior displays for all types of information that can be changed in just a few minutes. Display comes with cable suspension components made of brass with satin chrome finish, clear literature holders, and clear or non-glare (non-reflective) acrylic frames. *Select acrylic finish type on the product page.

Size Requirements:

Overall Display Size: 167″W x 74″H
Wall Size: 16 ft (192 in) Wide

Component List:

  • 18AFF-2436P (*NG) – Clear or Non-Glare Easy Access Acrylic Holder (5 ea) / *Select finish type above.
    Insert Size: 24″W x 36″H
  • 14ALD-3-MIX/DC2303 – Clear Acrylic Literature Holder (5 ea)
    Insert Size: 3.5″W x 8.5″H Tri-Fold; 8.5″W x 11″H Letter Format
  • CWW – Cable Suspension Kit / Wall-to-Wall (10 ea)
  • CG01 – Vertical Panel Support (40 ea)
  • P75-TWL – Twist-n-Lock Drywall Anchor Set (20 ea)

Key Features:

  • Attractive, modern appearance. Ideal for displaying information and and large format posters/graphics on interior walls.
  • Provides a quick and easy way to change information.
  • The display equipment has an upscale look and can be re-configured or easily customized.
  • Works with standard prints or paper posters up to 135 gsm or 1 mm (1/32′′) thickness.
  • Non-reflective acrylic front used to reduce the glare from sunny windows and spot lighting.
  • Customizable to your needs at no extra cost.

Availability & Customizations:

  • Fabrication Time: 5-7 Bus. Days
  • For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form


  • Graphic Inserts Printing
    Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files.
  • Raised Letters / Logo Signage
    Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“.
