DC2134 Photo Wall Display Concept

DC2134 Photo Wall Display / Wall Display Idea Concept

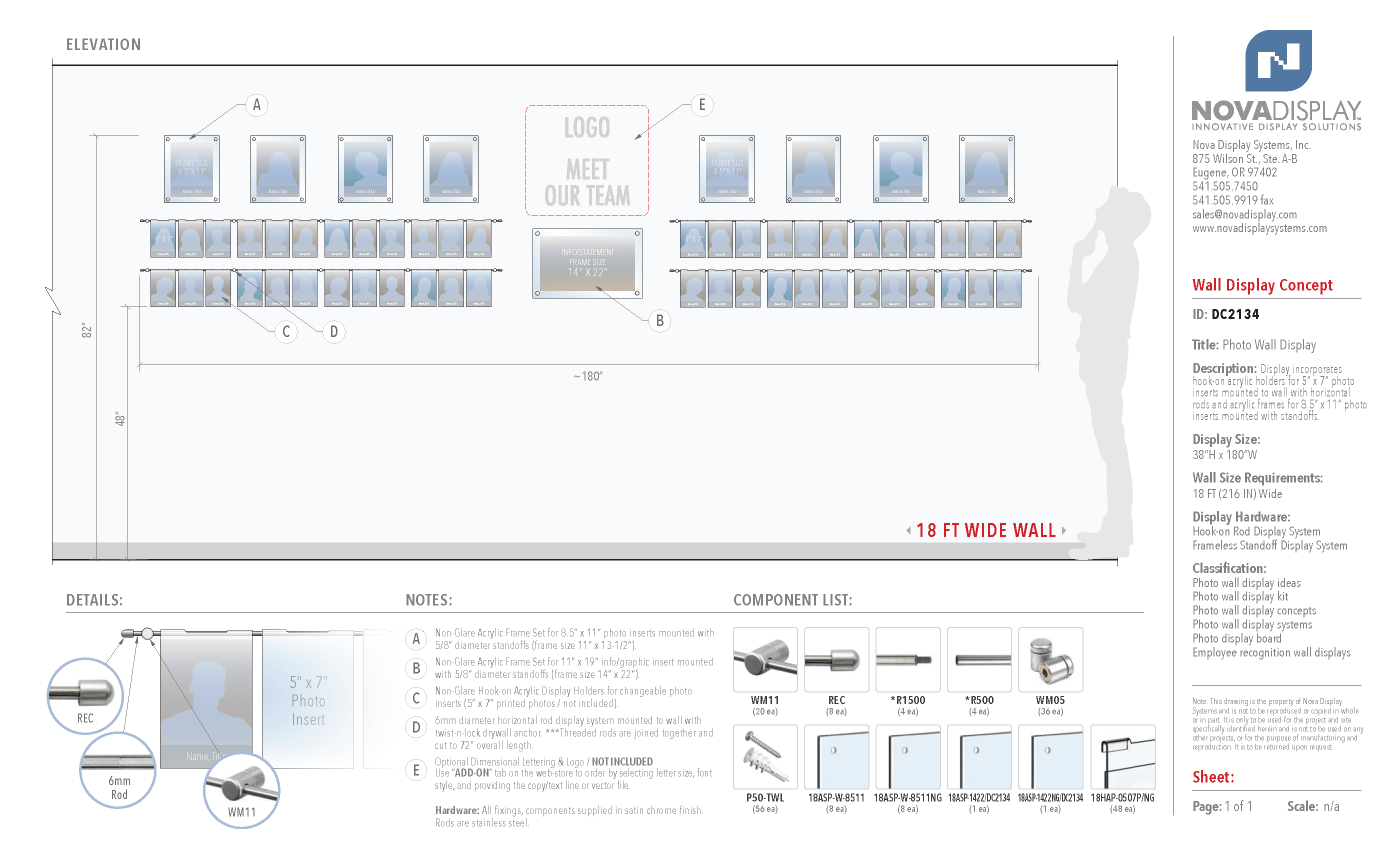

Photo Wall Display – incorporates hook-on acrylic holders for 5” x 7“ photo inserts mounted to wall with horizontal rods and acrylic frames for 8.5” x 11“ photo inserts mounted with standoffs. It is an easy-to-use display system which allows you to create stylish interior displays for all types of information that can be changed in just a few minutes. Display comes with wall mounts and standoff components made of brass with satin chrome finish, steel rods in natural brushed stainless finish, and non-glare (non-reflective) acrylic holders and frames.

Optional Dimensional Lettering & Logo / NOT INCLUDED
Use “ADD-ON” tab on the web-store to order by selecting letter size, font style, and providing a copy/text line or vector file.

Size Requirements:

Overall Display Size: 180″W x 38″H
Wall Size: 18 ft (216 in) Wide

Component List:

  • 18HAP-0507P/NG – Non-Glare Acrylic Hook-on Holder (48 ea)
    Insert Size: 5″W x 7″H
  • 18ASP-W-8511 – Clear Acrylic Back Panel (8 ea)
  • 18ASP-W-8511NG – Non-Glare Acrylic Front Panel (8 ea)
    Frame Size: 11″W x 13.5″H, Insert Size: 8.5″W x 11″H
  • 18ASP-W-1422/DC2134 – Clear Acrylic Back Panel (1 ea)
  • 18ASP-W-1422NG/DC2134 – Non-Glare Acrylic Front Panel (1 ea)
    Frame Size: 22″W x 14″H, Insert Size: 19″W x 11″H
  • WM11 – Rod Wall Fixing (20 ea)
  • R1500 – 1.5m (4′ 11-1/16″) 6mm Dia. Rod (4 ea)
  • R500 – 0.5m (1′ 7-11/16″) 6mm Dia. Rod (4 ea)
  • REC – Decorative End Cap (8 ea)
  • WM05 – 5/8″ Dia. Standoff Support (36 ea)
  • P50-TWL – Twist-n-Lock Drywall Anchor Set (56 ea)

Key Features:

  • Attractive, modern appearance. Ideal for displaying information and photos on interior walls.
  • Use to display art, documents, certificates, photos, posters, or other interchangeable printed inserts.
  • Provides a quick and easy way to change information.
  • Acrylic holders/pockets hook onto rods without the use of any tools.
  • Works with standard prints or paper posters up to 135 gsm or 1 mm (1/32′′) thickness.
  • Poster/graphic is surrounded by 1-1/4” clear border on all sides.
  • Non-glare (non-reflective) acrylic front cover helps to reduce the glare from sunny windows and spot lighting.
  • The display equipment has an upscale look and can be re-configured or easily customized.
  • Custom sizes and larger format pockets are available in both portrait or landscape orientations.

Availability & Customizations:

  • Fabrication Time: 5-7 Bus. Days
  • For help with a new design please send us a project scope statement or detailed description with expected time-line using our Quote Request Form


  • Graphic Inserts Printing
    Order high-resolution photographic quality prints to come with your newly purchased display. Inserts are printed onto 9mil satin polyester film and trimmed to sizes specified in each display kit description. To order your prints go to “Printing Services” page and select your print type, size and quantity and add to cart. Use the same page to upload and submit your print files.
  • Raised Letters / Logo Signage
    Order dimensional / raised letters or logos to come with your newly purchased display. Letters are manufactured out of 1/4” thick acrylic and supplied in white or black acrylic with matte (satin) finish face and double-sided tape on the back for wall mounting. To order raised letters go to “Laser-Cut Acrylic Letters” store page and select a font style, letter size, finish, and submit your graphic file. For custom font styles and logos send your vector files to receive an estimate using our “Quote Request Form“.
  • Graphic Pre-placement
    Prints will be placed inside the acrylic sandwich frames before Packing & Shipping – mounted in between the two pieces of acrylic and fixed in place with low-tack (3MTM 9415PC Removable Repositionable) double sided adhesive tape. If you require this option please request an estimate using our “Quote Request Form“.
