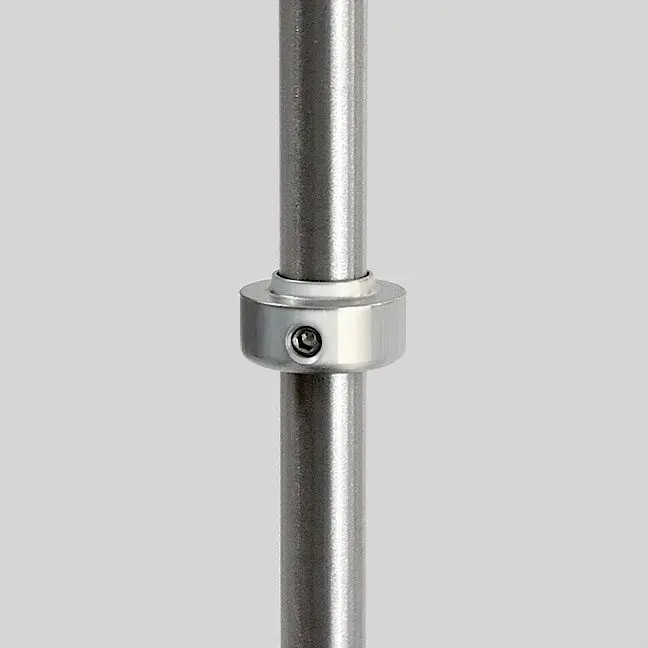

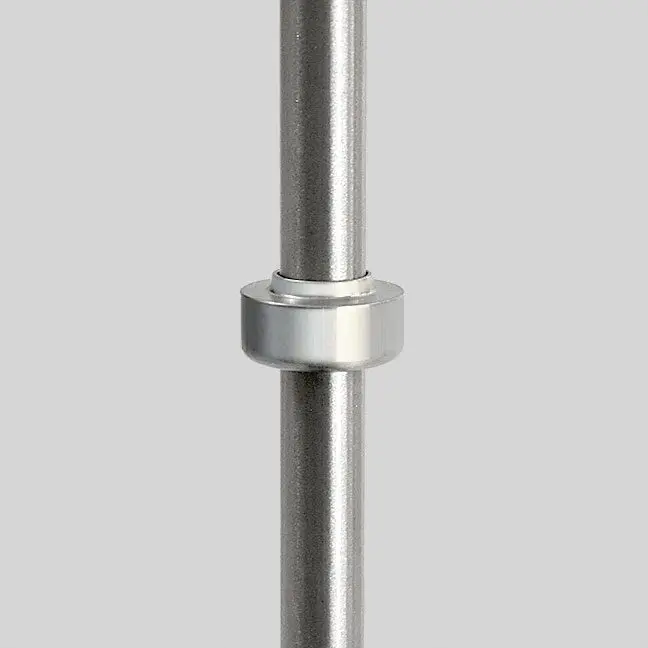

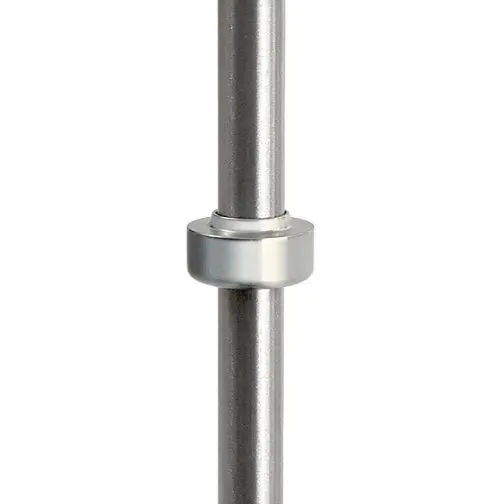

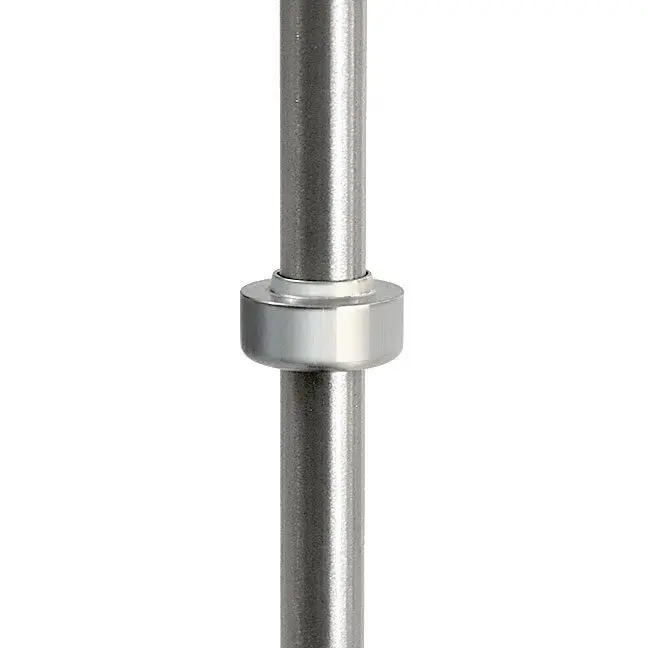

SUPPORT for Drilled or Slotted Shelf (*Use with 10mm Rod System)
Original price was: $3.60.$3.24Current price is: $3.24.
Use for supporting drilled or slotted acrylic and glass shelves. Located under shelf. Hole Diameter – 12.5mm (1/2″). Use with 10mm (3/8″) Dia. Rod Display Systems
Availability: In stock
Product Description
Rod Support for Drilled or Slotted Shelves — Drill-Thru Shelf Support
• Drill-thru shelf support for drilled or slotted shelves
• Recommended use of four supports per shelf (longer shelves may require multiple supports attached to the longer side)
• Made of solid brass alloy with satin chrome finish
• Can support shelves 25mm (1″) thick or more (*subject to material type and weight)
• Recommended Safety Load Limit per Fitting: 12kg (25lb)
• Shelves require 12.5mm (1/2″) diameter holes
• Works with a wide range of materials such as acrylic, tempered glass, marble, caesarstone, wood, plywood, granite, butcher block, laminate, aluminum composite, etc.
• Compatible with 10mm (3/8″) diameter rod suspension system
Explore All Mounting Options ❯
⚠ WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information read details on California Proposition 65.
Attributes
| Load Limits | |
|---|---|
| Compatibility | Use with 10mm (3/8") Dia. Stainless Steel Rods to Suspend Acrylic and Glass Shelves |
| Weight | |
| Dimensions | |
| Mounting Options | |
| Material Thickness | |
| Materials | |
| Finish | |
| Allen Wrench Size | |
| Availability |

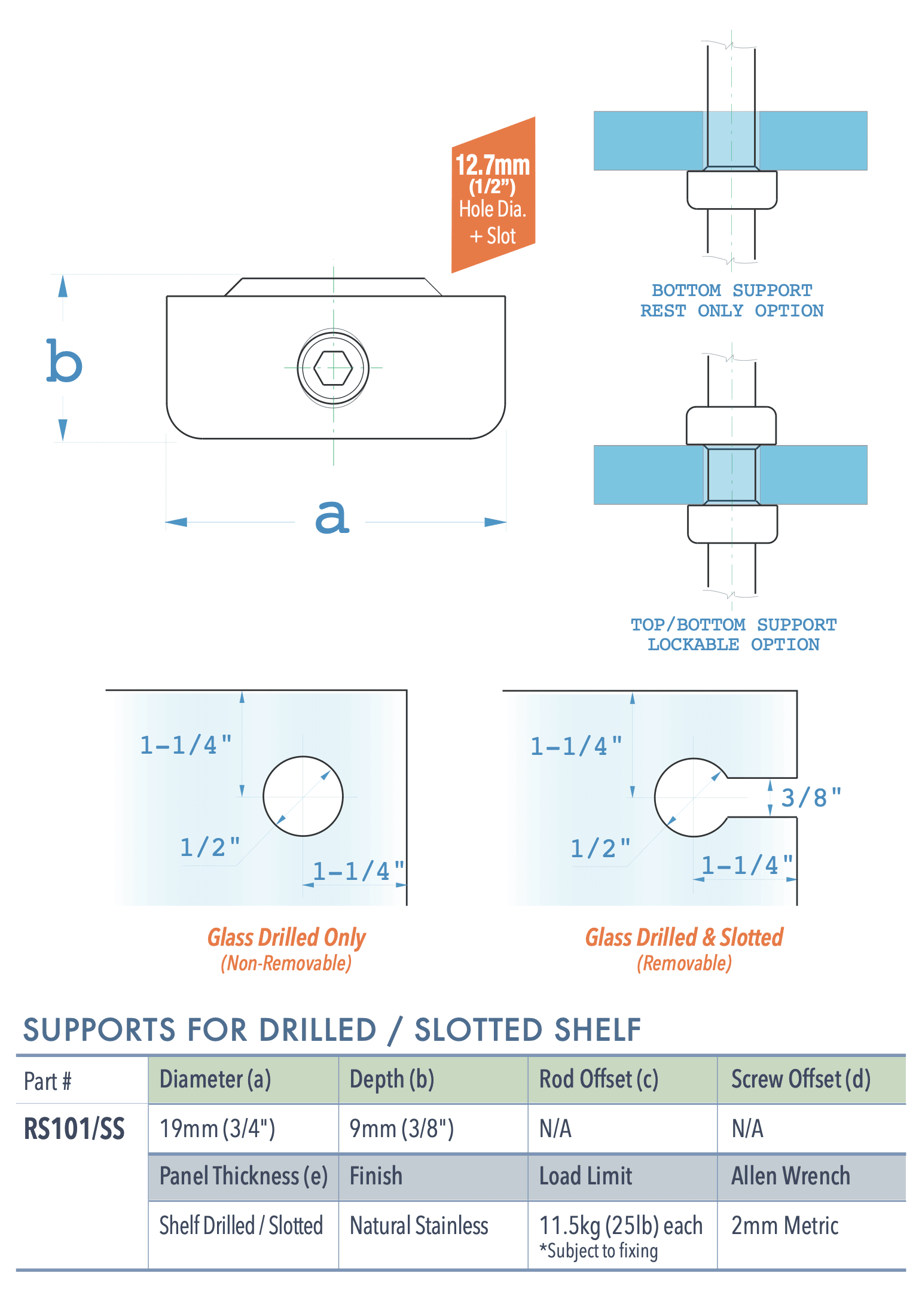

DOWNLOAD PRODUCT SPECS HERE
Composition and Materials:
For durability, all rod display fittings are made from a brass alloy, UNS C37710/ASTM B124. Grub screws used for fittings are made of AISI 12L14 Carbon Steel (UNS G12144) and have a plastic tip of Nylon 6-6.
Colors/Finishes:
Matte (Pearl) Nickel/Chrome Plating: chrome is plated over matte nickel to achieve a hard, uniform finish that is semi-lustrous with low reflectivity. It is also referred to as pearl or velour chrome, which does not have the lines or grainy appearance found in traditional satin nickel/chrome finishes. Satin chrome is the only standard/stock finish. Custom finishes are available on request. Lead times will be longer and a minimum quantity may be required.
Product Limitations:
For indoor use only. Rod system performs well in all closed environments as long as it is not exposed to direct weathering such as rain, snow, moisture, etc. For marine or other high humidity environments, please request stainless steel type 316/582 rods that have a higher corrosion resistance. Follow the instructions and weight-bearing limitation indicated on the technical data sheets.
Quality/Warranty:
Rod fittings are designed and manufactured to rigid standards of quality with a 12-month guarantee on all metal components.
